➤ Used Bystronic BySprint Fiber 3015 | Fiber Laser Cutter

Show in original language

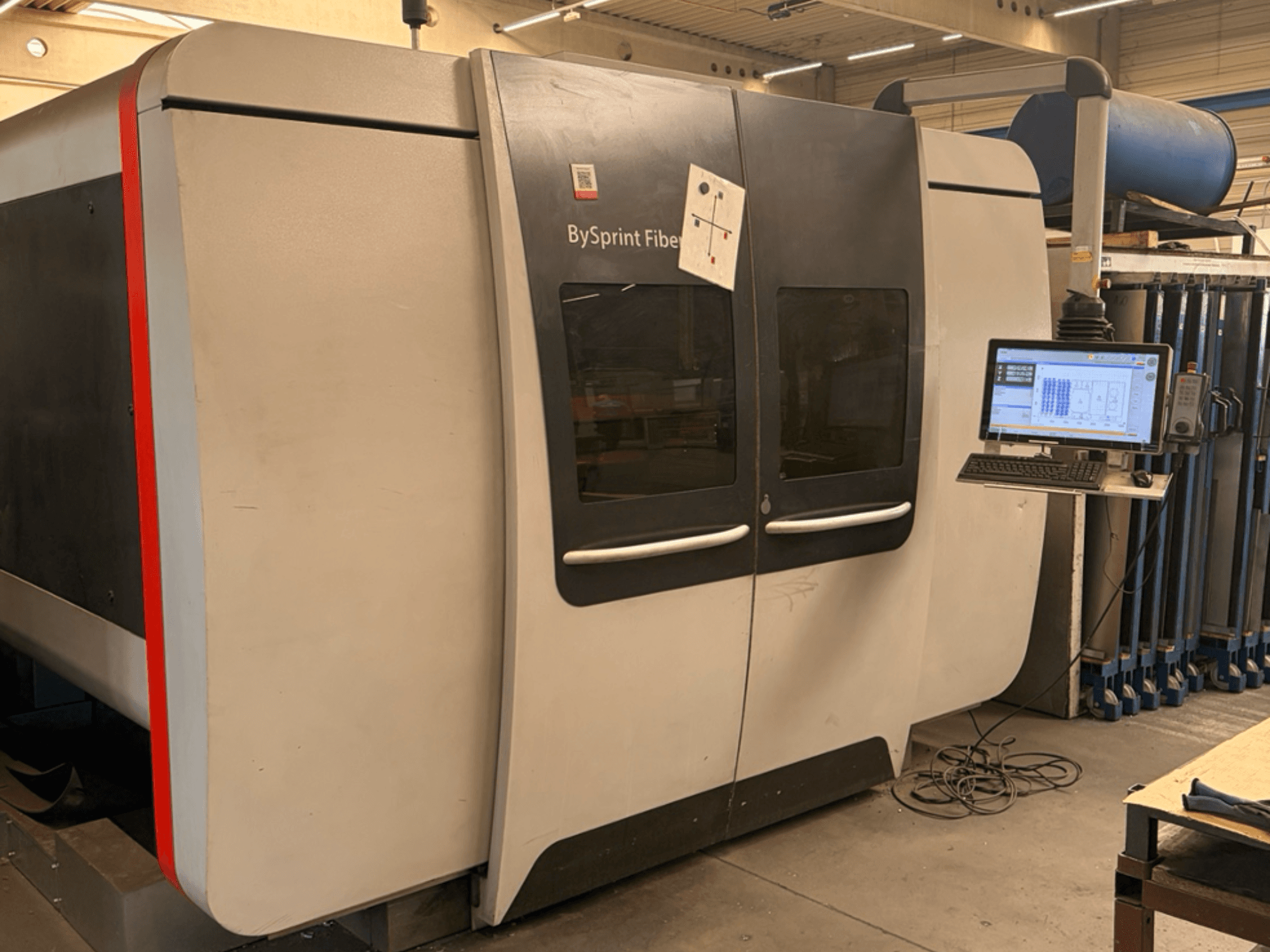

This 3-axis Bystronic BySprint Fiber 3015 incl. ByTrans Extended Loading/unloading system was manufactured in 2016. It features a powerful 4000 W fiber laser source and a working area of 3048 mm x 1524 mm. The machine includes an automatic shuttle table system and a fully enclosed safety cabin, ensuring efficient and safe operation. If you are looking to get high-quality fiber laser cutting capabilities, consider the Bystronic BySprint Fiber 3015 machine we have for sale. Contact us for further details.

Overview

brand: Bystronic
year: 2016
MODEL: BySprint Fiber 3015
application type: Cutting
Location: Germany
machine type: Fiber Laser Cutting Machine
Available from: 14/09/2026
control unit brand: BYSTRONIC

Technical Information - Bystronic BySprint Fiber 3015

Control Unit

Control Brand: BYSTRONIC
Control Model: ByVision

Dimensions

Machine Height: 2565 mm
Machine Length: 11018 mm
Machine Weight: 12000 kg
Machine Width: 6051 mm
Table Length: 3000 mm
Table Load: 890 kg
Table Width: 1500 mm

Movement

Number of Axes: 3
X-axis Travel: 3048 mm
Y-axis Travel: 1524 mm
Z-axis Travel: 70 mm

Technical Specification

Laser Power: 4 kW
Positioning Accuracy: 100 µm

Additional Information

Bystronic BySprint Fiber 3015 incl. ByTrans Extended Loading/unloading system

* Laser Source: Fiber 4000

* Laser Technology: Fiber Laser

* Laser Power: 4000 W

* Pulse Frequency: 1–2500 Hz

* Power Control Range: 400–4000 W

* Sheet Size (X): 3000 mm

* Sheet Size (Y): 1500 mm

* Maximum Positioning Speed X/Y: 100 m/min

* Maximum Simultaneous Positioning Speed: 140 m/min

* Position Accuracy (VDI/DGQ 3441): ±0.1 mm

* Repeatability (VDI/DGQ 3441): ±0.05 mm

* Edge Detection Accuracy: ±0.5 mm

* Maximum Workpiece Weight: 890 kg

* Shuttle Table Change Time: 35 s

* Maximum Mild Steel Thickness: 20 mm

* Maximum Stainless Steel Thickness: 15 mm

* Maximum Aluminium Thickness: 15 mm

* Maximum Brass Thickness: 8 mm

* Maximum Copper Thickness: 8 mm

* Total Power Consumption (including extraction and chiller): 25.3 kW

Equipment & Features

* Automatic Shuttle Table System with 2 Shuttle Tables

* Fully Enclosed Safety Cabin

* Chip Trolley with Rollers

* CNC Control Cabinet

* Touchscreen with ByVision User Interface

* Maintenance Messenger

* Restart Manager

* System Manager

* Handheld Control Unit

* Cutting Parameter Assistant

* Uninterruptible Power Supply (UPS)

* Cutting Bridge

* Cutting Head

* Piercing Jet

* ByPos Fiber

* Automatic Nozzle Cleaning

* Scanning Function

* Fiber Laser Source

* Tank Heating

* Tropicalization Package

* Standard Extraction Unit 3000

* Automation / Handling Interface

* Chiller for Fiber 4000

* Operator Protection in Cutting Area

* Operator Protection in Loading / Unloading Area

* Power Supply: 400 V / 50 Hz

* Electrical Connection (Machine incl. Laser Source)

* Compressed Air Connection (Machine incl. Laser Source and Chiller)

* Material Specification Package

* Part Tolerances and Cut Surface Quality Package

* Cutting Gas Supply and Cutting Quality Package

* Environmental Requirements Documentation

* Building Requirements Documentation

* Machine Documentation

* STL Cabinet

Additional Equipment

* ByTrans 3015 Extended Loading / Unloading System

* 2 Cassettes with Copper Supports

* Additional Suction Unit for Sheet Separation

* Cut Control Fiber

* Special Position of the Control Cabinet

* Automatic Nozzle Changer with 40 Positions

* Second Operator Console

* Observer Hardware

* OPC Interface Cutting

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
