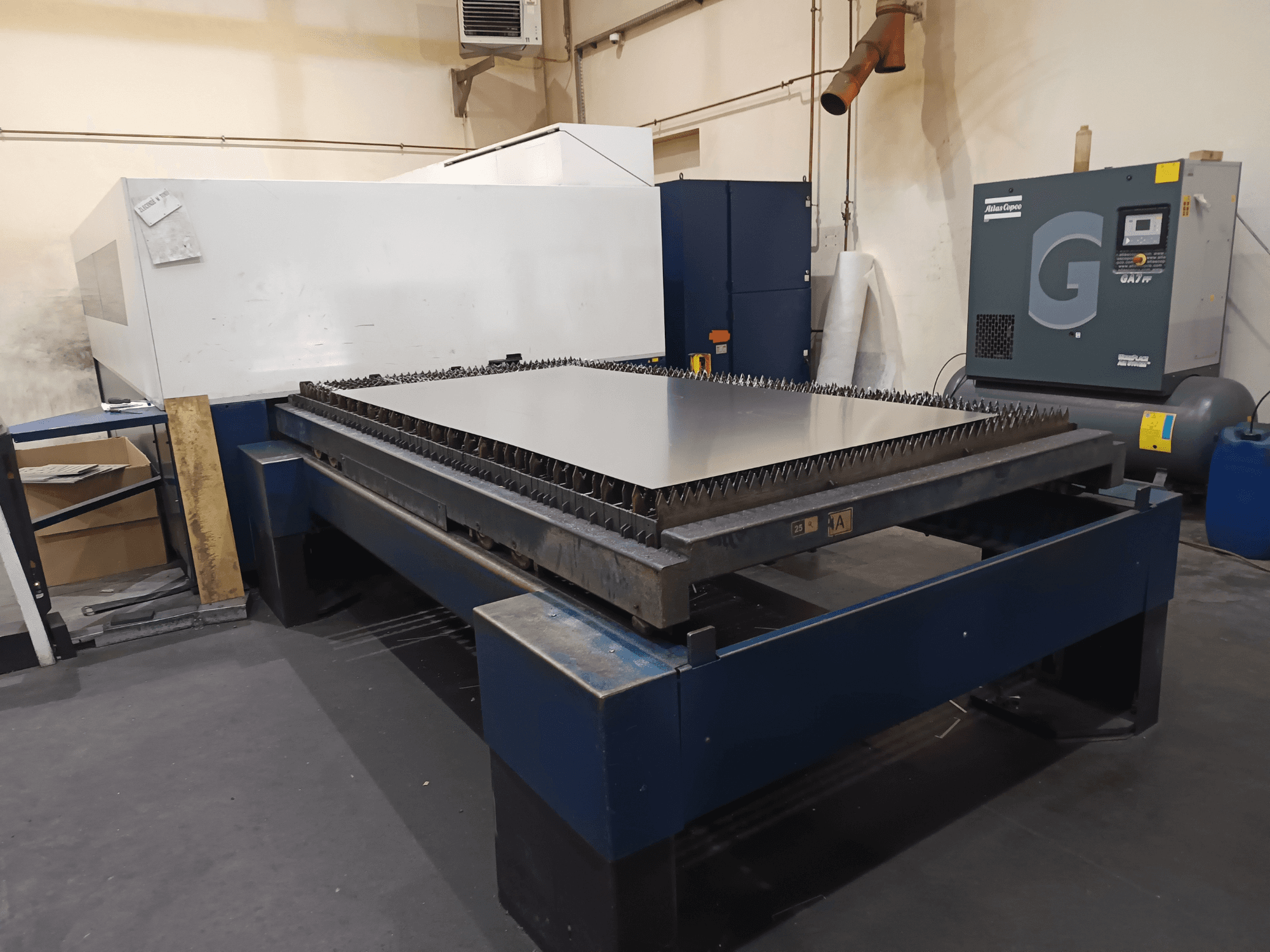

Industrial cutting machine with metal table, front view. Features sharp edges, air compressor on the right, and steel frame.
Industrial cutting machine with metal table, front view. Features sharp edges, air compressor on the right, and steel frame.

TRUMPF - TruLaser 3030PL-CUT-TRU-2014-00001

79,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3s TRUMPF TruLaser 3030 Fiber cutting machine was manufactured in 2014. It features a powerful 3,000 W TruDisk 3001 solid-state fiber laser, with a maximum cutting capacity for mild steel up to 20 mm. The machine offers impressive positioning speeds and a spacious working area, making it suitable for various applications. Consider the opportunity to buy this TRUMPF TruLaser 3030 Fiber cutting machine. Contact us for further details.

Overview

  • brand: TRUMPF
  • year: 2014
  • MODEL: TruLaser 3030
  • application type: Cutting
  • Location: Poland
  • machine type: Fiber Laser Cutting Machine
  • control unit brand: SIEMENS

Technical Information - TRUMPF TruLaser 3030

Control Unit

  • Control Brand: SIEMENS
  • Control Model: SINUMERIK 840D SL

Dimensions

  • Machine Height: 2400 mm
  • Machine Length: 9400 mm
  • Machine Weight: 12700 kg
  • Machine Width: 3000 mm

Movement

  • Number of Axes: 3
  • X-axis Travel: 3000 mm
  • Y-axis Travel: 1500 mm
  • Z-axis Travel: 115 mm

Technical Specification

  • Laser Power: 3000 kW

Additional Information

  • Positioning speeds:

    • Max. speed X: 100 m/min

    • Max. speed Y: 100 m/min

    • Max. simultaneous X/Y: 140 m/min

  • Cutting capacity:

    • Max. mild steel thickness: 20 mm

    • Max. stainless steel thickness: 15 mm

    • Max. aluminum thickness: 15 mm

    • Max. copper thickness: 6 mm

    • Max. sheet weight: 900 kg

  • Machine data:

    • Connected load: 37 kVA

    • Compressed air consumption: 35 Nm³/h

    • Color: White / Blue

  • Integrated features:

    • Integrated electrical cabinets with internal lighting

    • Work area lighting

    • Positioning laser diode

    • Spray device

    • Automatic nozzle cleaning

  • Laser and technology functions:

    • FocusLine

    • NitroLine

    • PlasmaLine

    • PierceLine

    • ContourLine

    • FastLine

    • FlyLine

    • AdjustLine

    • MicroWeld

Additional equipment

  • Conveyor belt for small parts / slag

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
