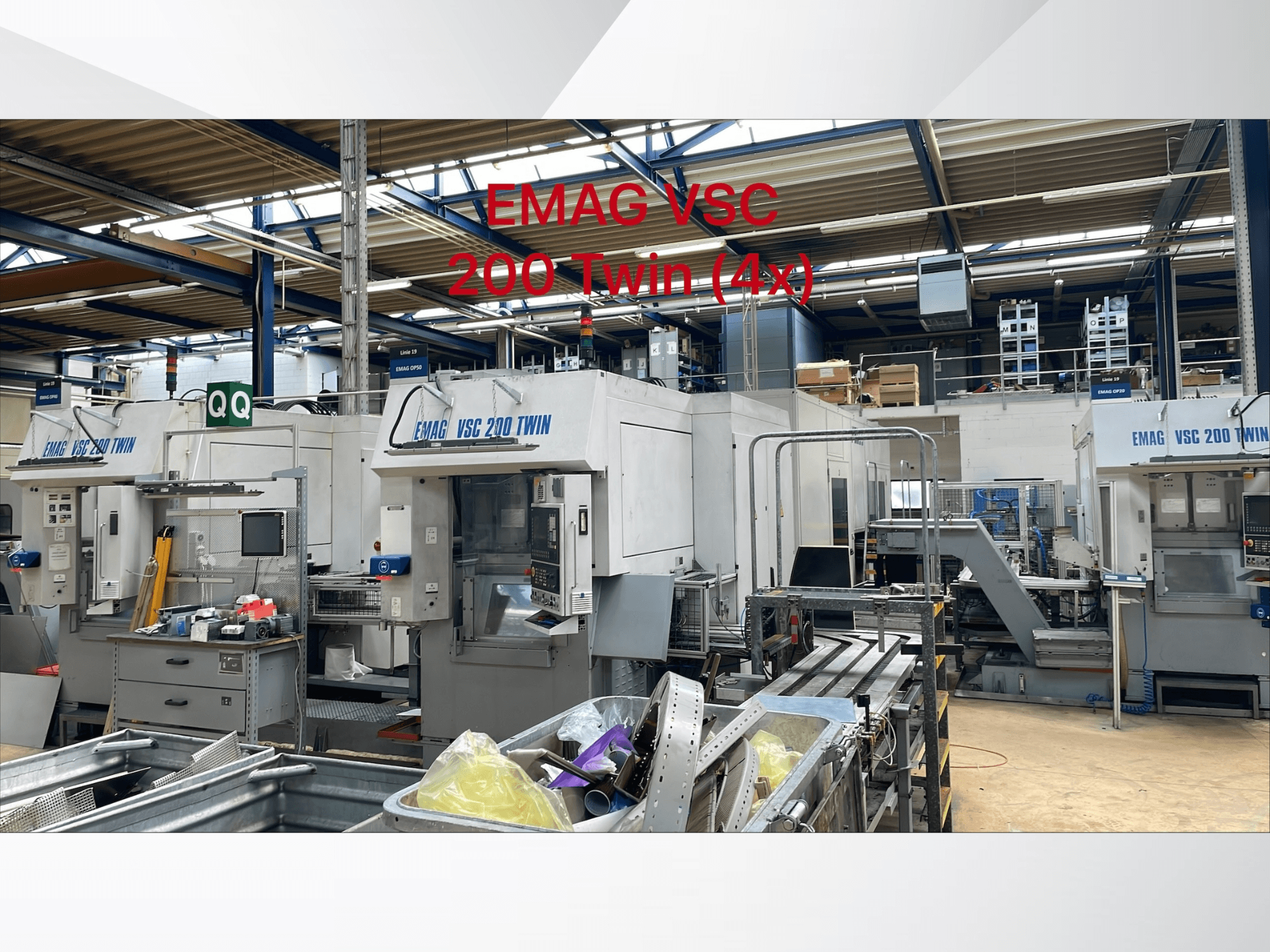

This 4-axis EMAG VSC 200 TWIN vertical turning machine was manufactured in 2005. It features a maximum chuck diameter of 200/250 mm and a swing diameter of 260 mm. With independent X and Z axis drives, it allows for the simultaneous machining of two workpieces. If you are looking to get high-quality turning capabilities, consider the EMAG VSC 200 TWIN machine we have for sale. Contact us for further details.
Overview
- brand: EMAG
- year: 2005
- MODEL: VSC 200 TWIN OP 20
- application type: Turning
- Location: Switzerland
- machine type: Vertical Turning Machine
Technical Information - EMAG VSC 200 TWIN OP 20
Dimensions
- Machine Weight: 12000 kg
Movement
- Number of Axes: 4
- X-axis Travel: 850 mm
- Z-axis Travel: 200 mm
Technical Specification
- Driven Tools: No
- Max. Workpiece Diameter: 200 mm
- Spindle Power: 39 kW
- Spindle Speed: 6000 RPM
Additional Information
Operation Type: OP 20
Machine Type: EMAG VSC 200 TWIN
Production Type: Medium to Large Series Production
Number of Spindles: 2
Simultaneous Machining of Two Workpieces: Yes
Independent X and Z Axis Drives: Yes
Independent Measuring Systems: Yes
Driven Tools: No
Maximum Chuck Diameter: 200 / 250 mm
Swing Diameter: 260 mm
Maximum Workpiece Diameter: 200 mm
Loading Time: 2–4 s
Spindle Flange: DIN 55 026 Size 6
Front Spindle Bearing Diameter: 100 mm
Maximum Spindle Speed: 6,000 rpm
Main Drive Type: Asynchronous Motor
Spindle Power (40% Duty Cycle): 39 kW
Spindle Power (100% Duty Cycle): 28 kW
Torque (40% Duty Cycle): 460 Nm
Torque (100% Duty Cycle): 340 Nm
Full Power Available From: 800 rpm
Rapid Traverse X Axis: 45 m/min
Rapid Traverse Z Axis: 30 m/min
Feed Force X/Z: 11 kN
Ball Screw Diameter X/Z: 50 / 40 mm
Turret Type: Disc Turret
Tool Stations: 2 × 8
Tool Holder Standard: DIN 69 880
Tool Shank Diameter: 40 mm
Turret Index Time: 0.3 s
Machine Bed Material: Polymer Concrete MINERALIT®
Automatic Pick-up Loading System: Yes
Automatic Workpiece Loading and Unloading: Yes
Vertical Workpiece Clamping: Yes
Operating Voltage: 400 V
Control Voltage DC: 24 V
Control Voltage AC: 230 V
Frequency: 50 Hz
Connected Load: 66 kW
Fuse Protection: 160 A
Electrical Standard: VDE 0113
Approximate Machine Weight: 12,000 kg
Available Control Systems: FANUC 31i / 32i, Siemens SINUMERIK 840 D, Bosch Rexroth MTX
Workpiece Handling: Conveyor-Based Pick-up Automation
The technical specifications may vary slightly, as these are custom-made machines!
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
