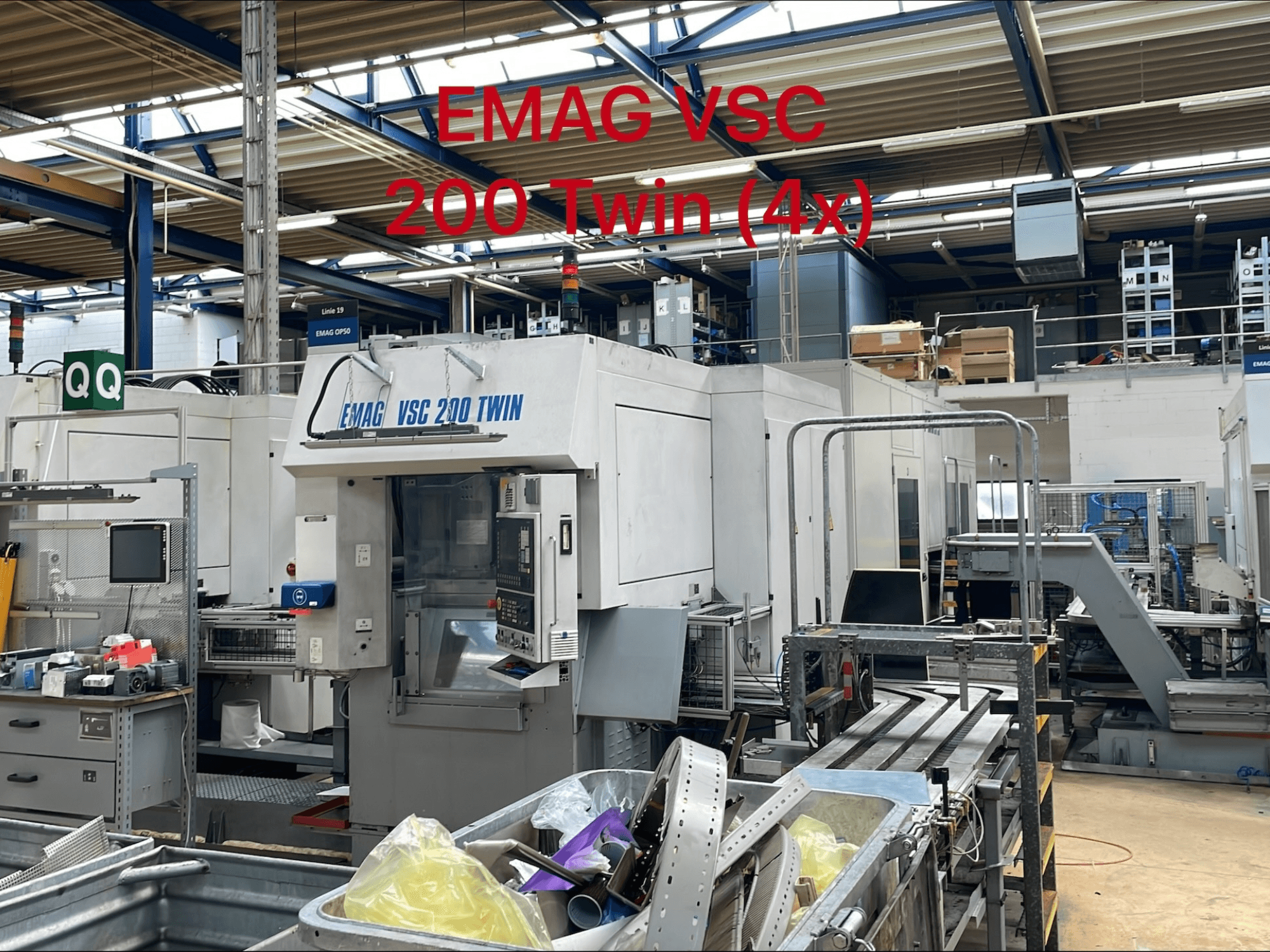

This 4-axis EMAG VSC 200 TWIN OP 50 was manufactured in 2005. It features simultaneous machining of two workpieces, independent X and Z axis drives, and a maximum chuck diameter of 250 mm. With a maximum X travel of 850 mm and a rapid traverse speed of 45 m/min, this machine is designed for medium to large series production. If you are looking to get high-quality turning capabilities, consider the EMAG VSC 200 TWIN OP 50 vertical turning machine we have for sale. Contact us for further details.
Overview
- brand: EMAG
- year: 2005
- MODEL: VSC 200 TWIN OP 50
- application type: Turning
- Location: Switzerland
- machine type: Vertical Turning Machine
Technical Information - EMAG VSC 200 TWIN OP 50
Dimensions
- Machine Weight: 12000 kg
Movement
- Number of Axes: 4
- X-axis Travel: 850 mm
- Z-axis Travel: 200 mm
Technical Specification
- Driven Tools: Yes
- Tool Stations: 16
- Spindle Power: 39 kW
- Spindle Speed: 6000 RPM
Additional Information
Operation Types: OP 50
Machine Type: EMAG VSC 200 TWIN
Production Type: Medium to Large Series Production
Number of Spindles: 2
Simultaneous Machining of Two Workpieces: Yes
Independent X and Z Axis Drives: Yes
Independent Measuring Systems: Yes
Driven Tools: Yes
Maximum Chuck Diameter: 200 / 250 mm
Swing Diameter: 260 mm
Loading Time: 2–4 s
Spindle Flange: DIN 55 026 Size 6
Front Spindle Bearing Diameter: 100 mm
Main Drive Type: Asynchronous Motor
Spindle Power (40% Duty Cycle): 39 kW
Spindle Power (100% Duty Cycle): 28 kW
Torque (40% Duty Cycle): 460 Nm
Torque (100% Duty Cycle): 340 Nm
Full Power Available From: 800 rpm
Rapid Traverse X Axis: 45 m/min
Rapid Traverse Z Axis: 30 m/min
Feed Force X/Z: 11 kN
Ball Screw Diameter X/Z: 50 / 40 mm
Turret Type: Disc Turret
Tool Stations: 2 × 8
Tool Holder Standard: DIN 69 880
Tool Shank Diameter: 40 mm
Turret Index Time: 0.3 s
Machine Bed Material: Polymer Concrete MINERALIT®
Automatic Pick-up Loading System: Yes
Automatic Workpiece Loading and Unloading: Yes
Vertical Workpiece Clamping: Yes
Operating Voltage: 400 V
Control Voltage DC: 24 V
Control Voltage AC: 230 V
Frequency: 50 Hz
Connected Load: 66 kW
Fuse Protection: 160 A
Electrical Standard: VDE 0113
Available Control Systems: FANUC 31i / 32i, Siemens SINUMERIK 840 D, Bosch Rexroth MTX
Workpiece Handling: Conveyor-Based Pick-up Automation
The technical specifications may vary slightly, as these are custom-made machines!
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
