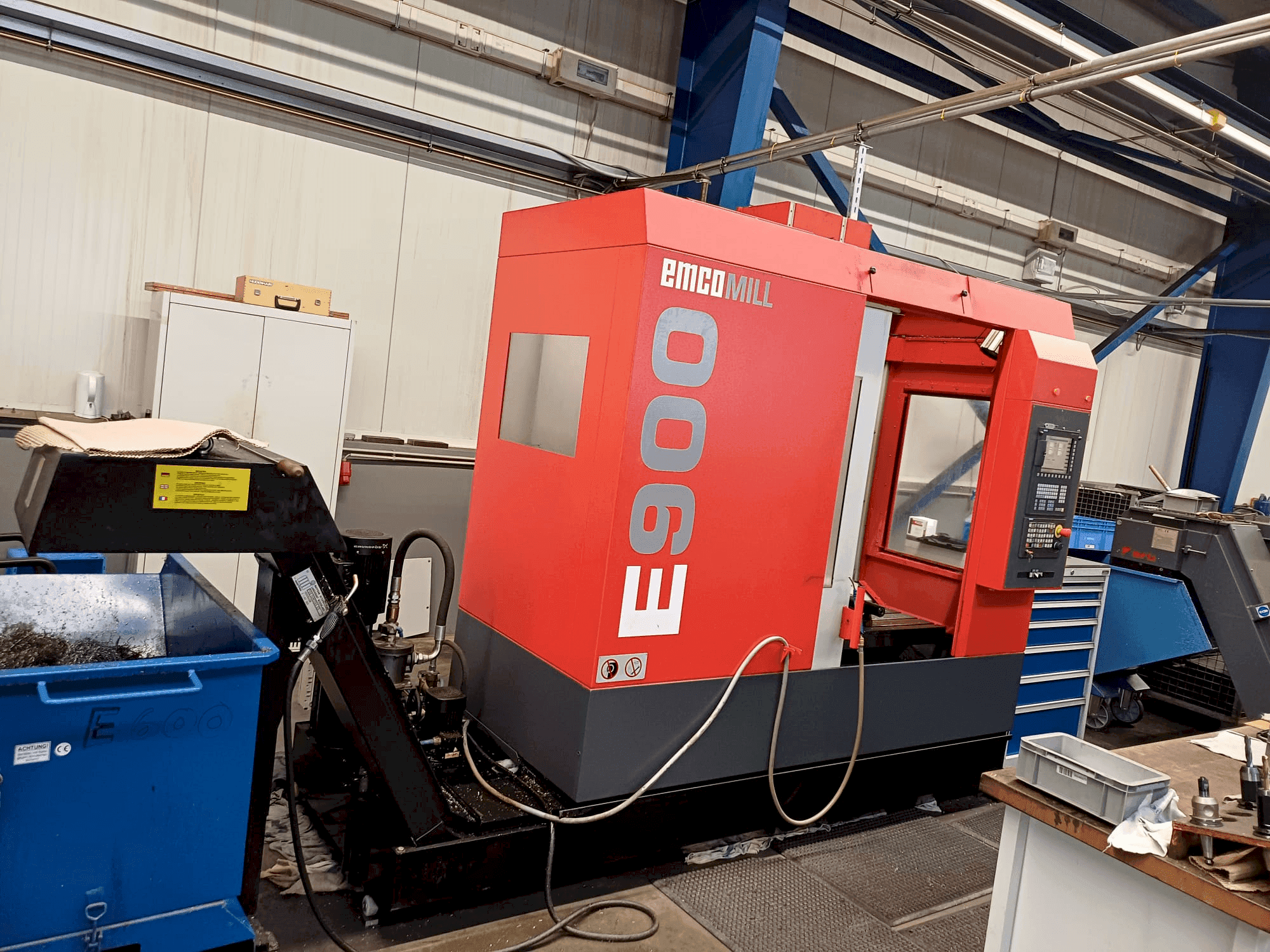

This 3-axis EMCO EmcoMill E900 was manufactured in 2014. A vertical machining center featuring a Siemens 828D control, it offers a spindle speed up to 12,000 rpm and torque of 83 Nm. It has a travel distance of X 900mm, Y 500mm, Z 500mm, and a rapid traverse rate of 24m/min. The machine includes a chip conveyor, a 360l cooling medium tray, and a 20-tool magazine. If you are looking to get high-quality milling capabilities consider the EMCO EmcoMill E900 machine we have for sale. Contact us for more information.
Overview
- brand: EMCO
- year: 2014
- MODEL: EmcoMill E900
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- availability: Immediately
- control unit brand: SIEMENS
Technical Information - EMCO EmcoMill E900
Control Unit
- Brand: SIEMENS
- Model: 828 D
Main drive
- Spindle speed range: 50-12000 1/MIN
- Number of axis: 3
Movement
- X-AXIS Movement: 900 mm
- X-AXIS Rapid traverse: 24 m/min
- Y-AXIS Movement: 500 mm
- Y-AXIS Rapid traverse: 24 m/min
- Z-AXIS Movement: 500 mm
- Z-AXIS Rapid traverse: 24 m/min
Table
- Outer length: 1000 mm
- Outer width: 520 mm
- Min distance between vertical spindle and table: 100 mm
- Max distance between vertical spindle and table: 600 mm
- Table load: 800 kg
Tools
- Slots in storage: 20
Media
- Chip conveyor: Yes
Additional Equipment
- - Rinsing gun
- - Cooling medium tray 360l
- - IKZ 15 bar
Additional Information
- Technical Machine Benefits:
- - Torque: 83 nm
- - Cast iron table with t-slots: number-width-distance 5-18-100
- - Automatic workpiece measurement: heidenhain ts 640 measuring probe
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
