- Emsil HVTL 60/80 vertical turning lathe

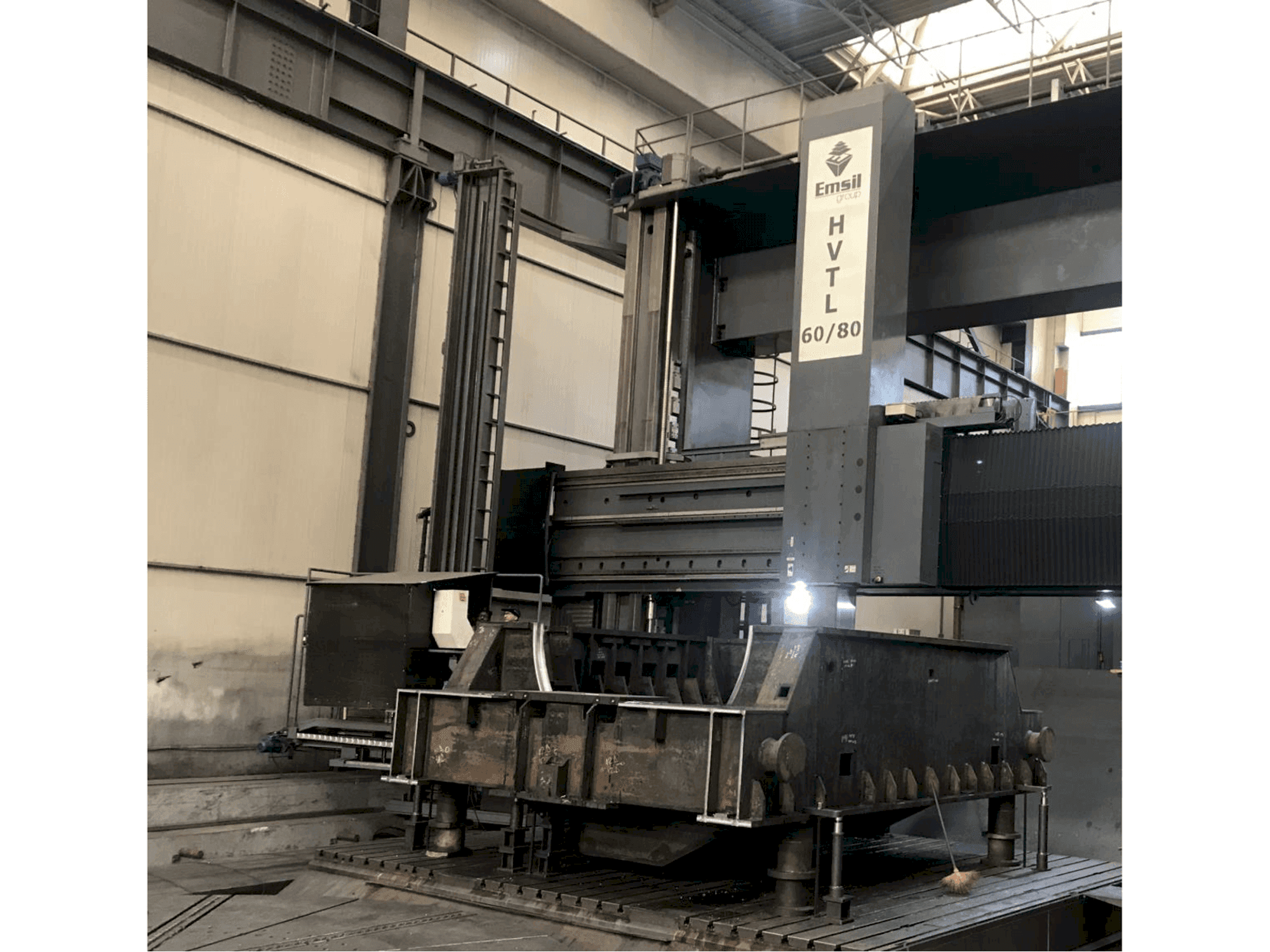

This Emsil HVTL 60/80 vertical turning lathe was made in the year 2015. It is equipped with a Fanuc 31i control unit. The machine has fixed table dimensions of 3 x 2000 x 6000 mm.
Overview
- brand: Emsil
- year: 2015
- MODEL: HVTL 60/80
- application type: Turning
- Location: Romania
- machine type: Vertical Turning Machine
- availability: Sold
- control unit brand: FANUC
Technical Information - Emsil HVTL 60/80
Control Unit
- Brand: FANUC
- Model: 31i
Movement
- Y-AXIS Movement: 11800 mm
- Y-AXIS Working Feed: 1000 mm/min
- Z-AXIS Movement: 2700 mm
- Z-AXIS Working Feed: 1000 mm/min
- W-Axis Movement: 5200 mm
- W-Axis Working Feed: 0 ÷ 250 mm/min
Additional Information
- Technical Machine Benefits:
- - Work piece maximum diameter: 8500 mm
- - Distance between columns: 8500 mm
- - Work piece maximum diameter through gantry travel: 11000 mm
- - Work piece maximum height: 6000 mm
- - Work piece maximum weight on faceplate: 100000 kg
- - Table diameter: 6000 mm
- - Speeds range (continuously variable): 0 - 50 rpm
- - 4 x main motor fanuc make: 160 kw (4 x 40)
- - Maximum torque available at the table: 470000 nm
- - Feed range (milling operations): 1 ÷ 240 dgr/min
- Qualitative Machine Benefits:
- - Fixed table − dimensions: 3 x 2000 x 6000 mm
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
