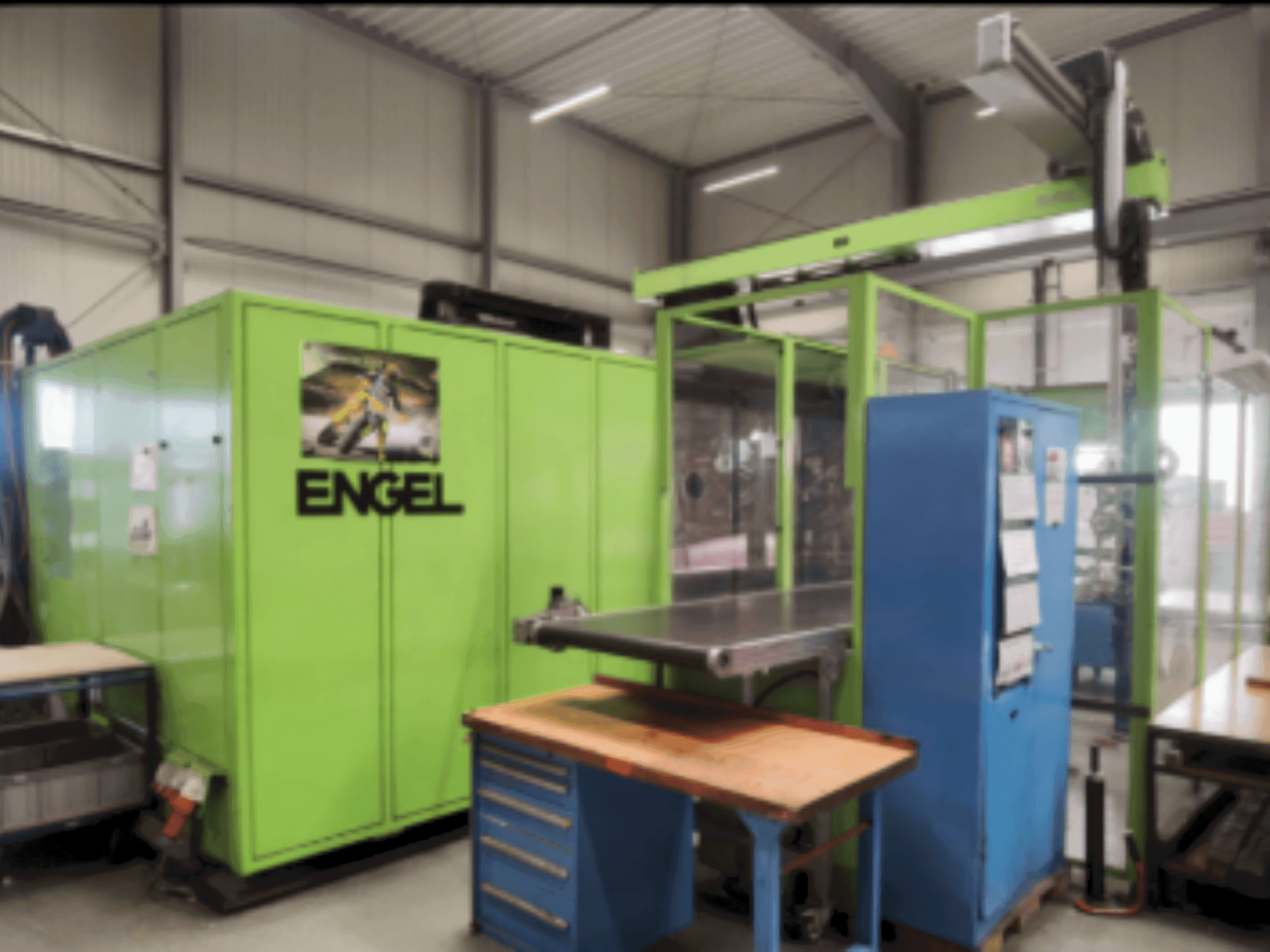

Engel - Duo 11050/1100 WPDE-INJ-ENG-2004-00005

Clamping Unit

• Clamping force: 11,000 kN

• Opening force (with pressure pads): 760 kN

• Opening force: 615 kN

• Opening stroke: 2,350 mm

• Mold installation height, min.: 700 mm

• Mold installation height, max.: 1,280 mm

• Maximum platen distance: 3,050 mm

• Mounting platen size (horizontal × vertical): 2,340 × 2,040 mm

• Tie-bar spacing (horizontal × vertical): 1,575 × 1,320 mm

• Tie-bar diameter: 230 mm

• Maximum mold weight: 30,000 kg

• Ejector stroke: 300 mm

• Ejector force: 230 kN

• Dry cycle (Euromap 6) – time: 5.2 s

• Dry cycle (Euromap 6) – stroke: 1,100 mm

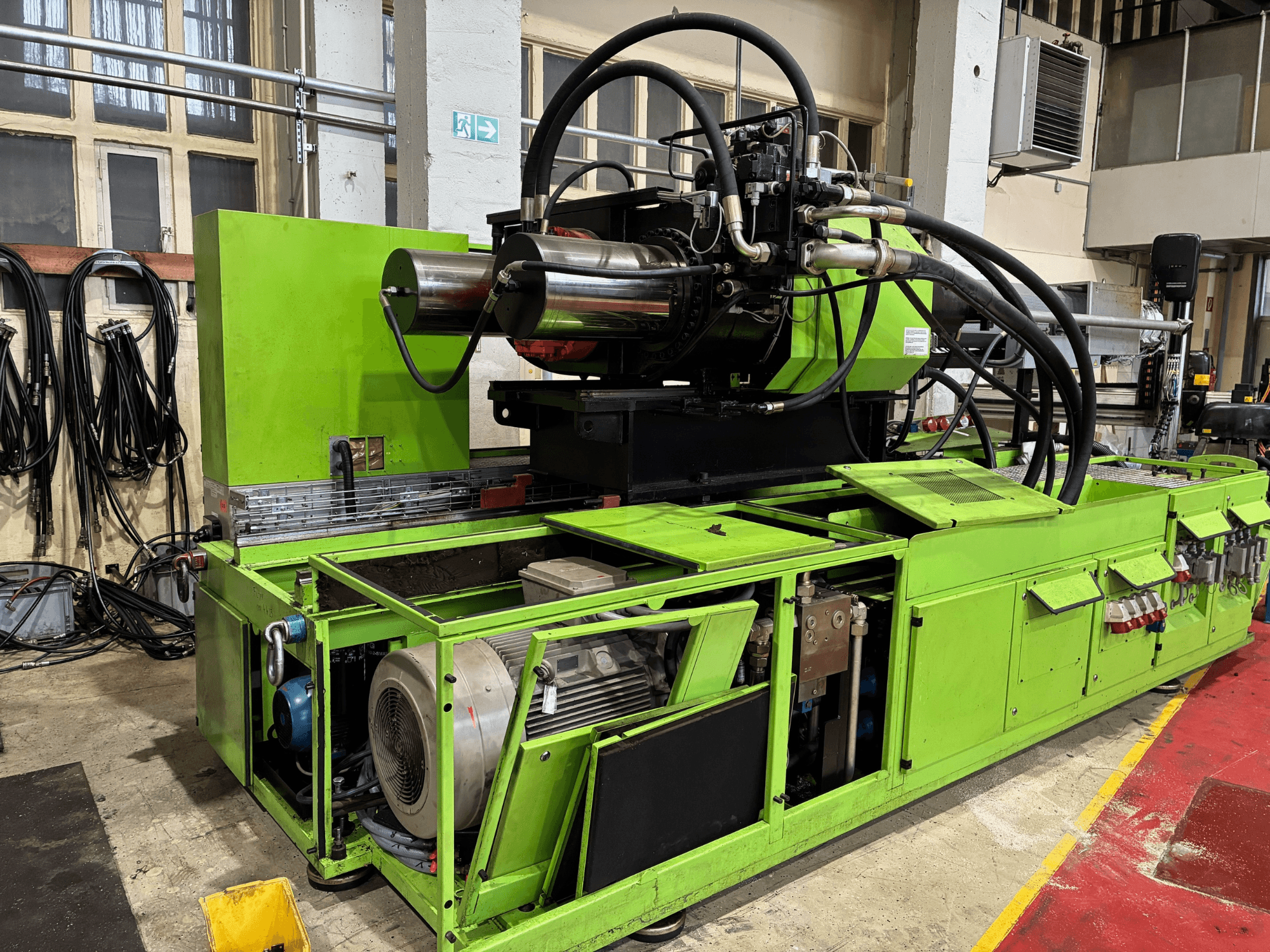

Injection Unit 1

• Screw diameter: 135 mm

• Metering stroke: 570 mm

• Maximum shot volume: 8,159 cm³

• Maximum screw speed: 120 rpm

• Screw L/D ratio (3-zone): 20

• Plasticizing rate (3-zone): 166 g/s

• Screw L/D ratio (barrier): 22

• Plasticizing rate (barrier): 256 g/s

• Injection rate: 1,255 cm³/s

• Injection rate at increased injection pressure: 915 cm³/s

• Specific injection pressure: 1,170 bar

• Specific injection pressure (increased): 1,600 bar

• Nozzle stroke: 950 mm

• Nozzle contact force: 150 kN

• Heating capacity (standard): 93 kW

• Number of heating zones incl. nozzle: 6

• Pump drive power: 130 kW

• Oil filling volume: 1,600 l

Weight

• Net weight (clamping unit / injection unit): 62 t / 18 t
