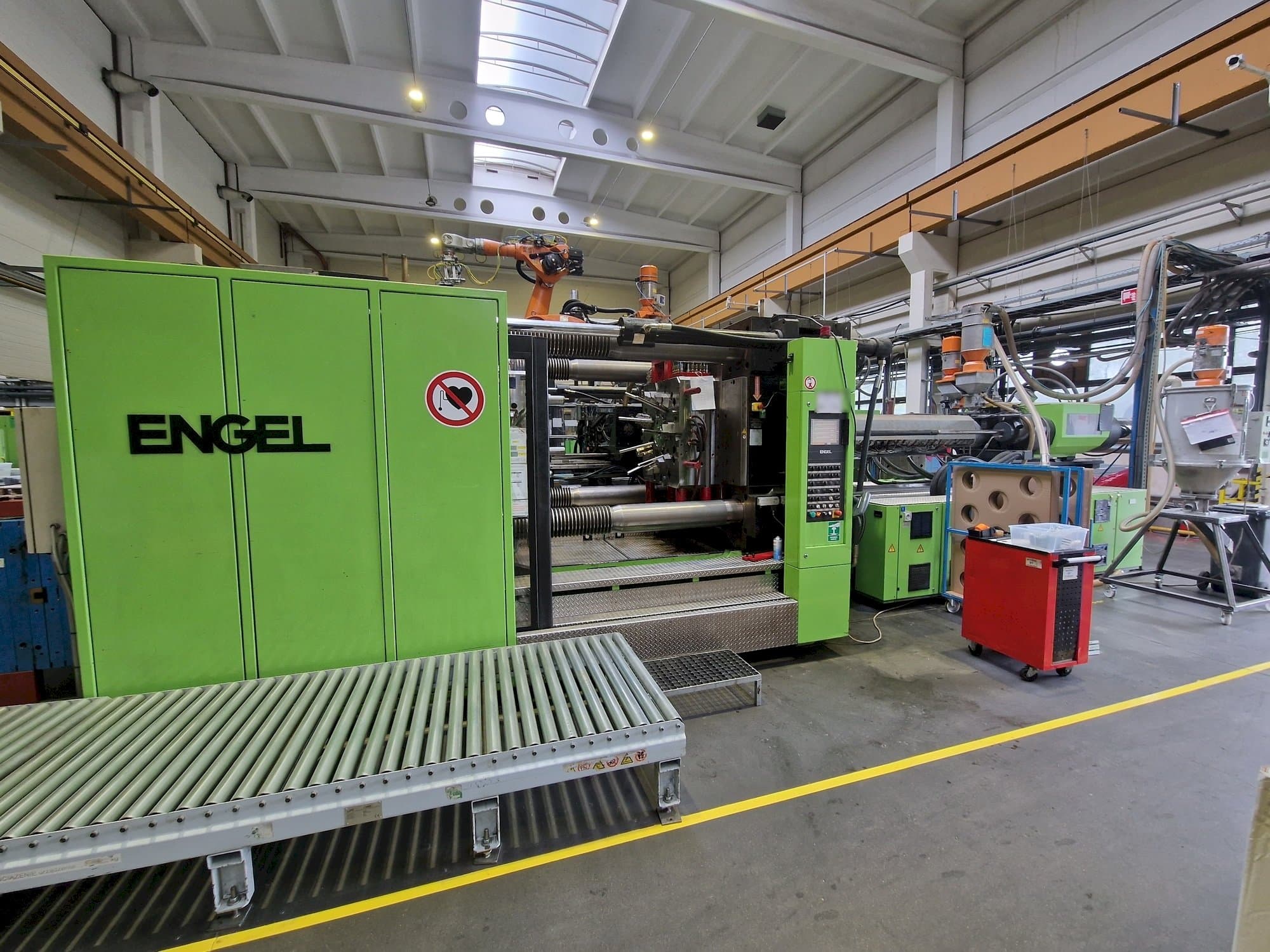

Front view of Engel DUO 3550H/330L/1000 COMBI  machine

Engel - DUO 3550H/330L/1000 COMBIPL-INJ-ENG-2005-00001


Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

Click to chat on WhatsApp
Show in original language

This ENGEL DUO 3550H/330L/1000 COMBI Injection moulding machine was made in 2005 in Germany and has 93062 production hours. It is equipped with an ENGEL control unit. The machine has a clamping force of 10000 kN and a screw diameter of 30-105 mm.


  • brand: Engel
  • year: 2005
  • MODEL: DUO 3550H/330L/1000 COMBI
  • production hours: 93062
  • application type: Injection Moulding
  • Location: Poland
  • machine type: Injection Moulding Machines
  • availability: Sold
  • control unit brand: ENGEL

Technical Information - Engel DUO 3550H/330L/1000 COMBI

Control Unit

  • Brand: ENGEL

Injection Unit

  • Screw diameter: 105 / 30 mm

Clamping unit

  • Clamping force: 10000 kN
  • Opening stroke: 1800 mm
  • Distance between bars: 1400 / 1150 mm
  • Mould height min: 492 mm
  • Mould height max: 1092 mm
  • Ejector stroke: 0 – 300 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Diameter of center ring injection side: 250 mm, diameter of center ring ejection side: 250 mm
      • - Clearance between the tables: 2292 mm, capacity injection: 3053 cm3 / 100 cm3
      • - Hydro ejector: yes, halfway: yes, clamping: yes, mold open: yes
      • - Quantity core pulling: 4 pcs, table whole tread: magnetic - tecnomagnete
      • - Quantity of hydraulic oil: 1000 liters, heating power: 45 kw
      • - Safeguard the door: electric, motor: 75 kw
      • - Valve terminal: 8 nozzles, air valves: 1
      • - System for quickly clamping molds: tecnomagnete.
    • Qualitative Machine Benefits:
      • - Machine in very, good working condition, ready for test.
      • - Full documentation available.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
