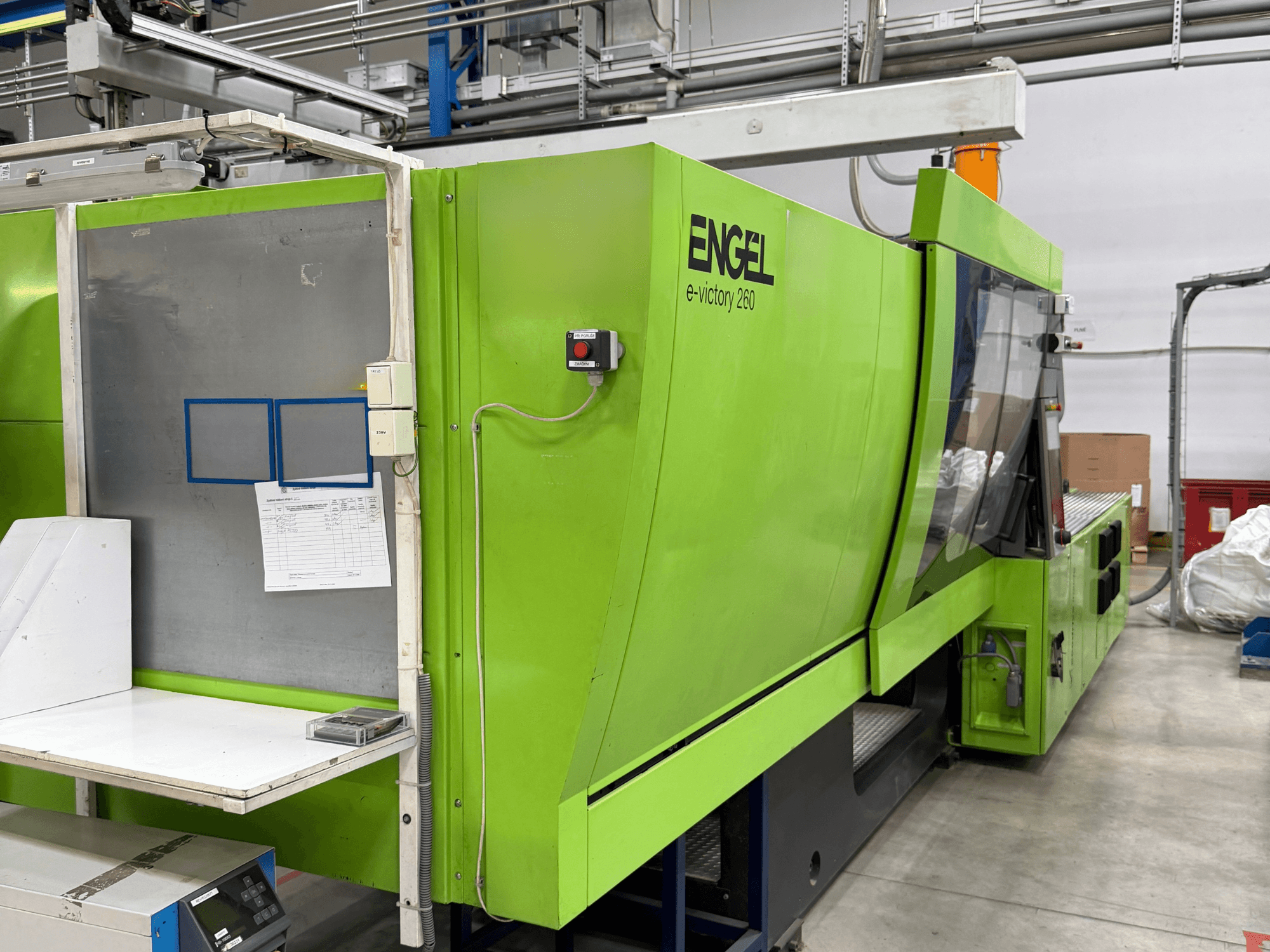

Engel - e-victory 1640/260DE-INJ-ENG-2015-00006

• Clamping system: Tiebarless ENGEL clamping system

• Injection unit: 1640

• Injection system: Servo-electric, high execution

• L/D ratio: 24

• Control unit: ENGEL CC300 (21.5" Full HD touchscreen)

• Hydraulics: ECODRIVE SHV1 (1 demand-regulated servo pump)

• Electrical connection: 3 x 400 V + N + PE, 50 Hz

• Nominal connected load: approx. 164 kW

• Centering: 160 mm

• Hydraulic core pulls: 2 on moving platen, 2 on stationary platen

• Vacuum/compressed air circuits: 8 on stationary platen with Venturi nozzles and pressure switches

• Pneumatic mold valve control: 2-fold FESTO, up to 16 bar

• Mold heating: 16 control zones, max heating power 25 kW

• Nozzle radius: 15 mm

• Nozzle bore: 4 mm

• Nozzle contact stroke: approx. 405 mm

• Hydraulic tank capacity: Main tank approx. 490 l, suction tank approx. 220 l

• Robot interface: Euromap 67 / AN-146

• Languages: Czech and German

Additional equipment

• MuCell package:

  • Complete MuCell Basic Package

  • PM cold-work steel screw Ø 60 mm

  • Hydraulic needle shut-off nozzle

  • Melt pressure sensor

  • Trexel auxiliary equipment: SII VC 30, MIK 1060 SII

  • Frame for two 50 L gas cylinders

• Mold temperature control: 3 ENGEL flomo distributors (24 monitored circuits total)

• GEKU automation with conveyor belts
