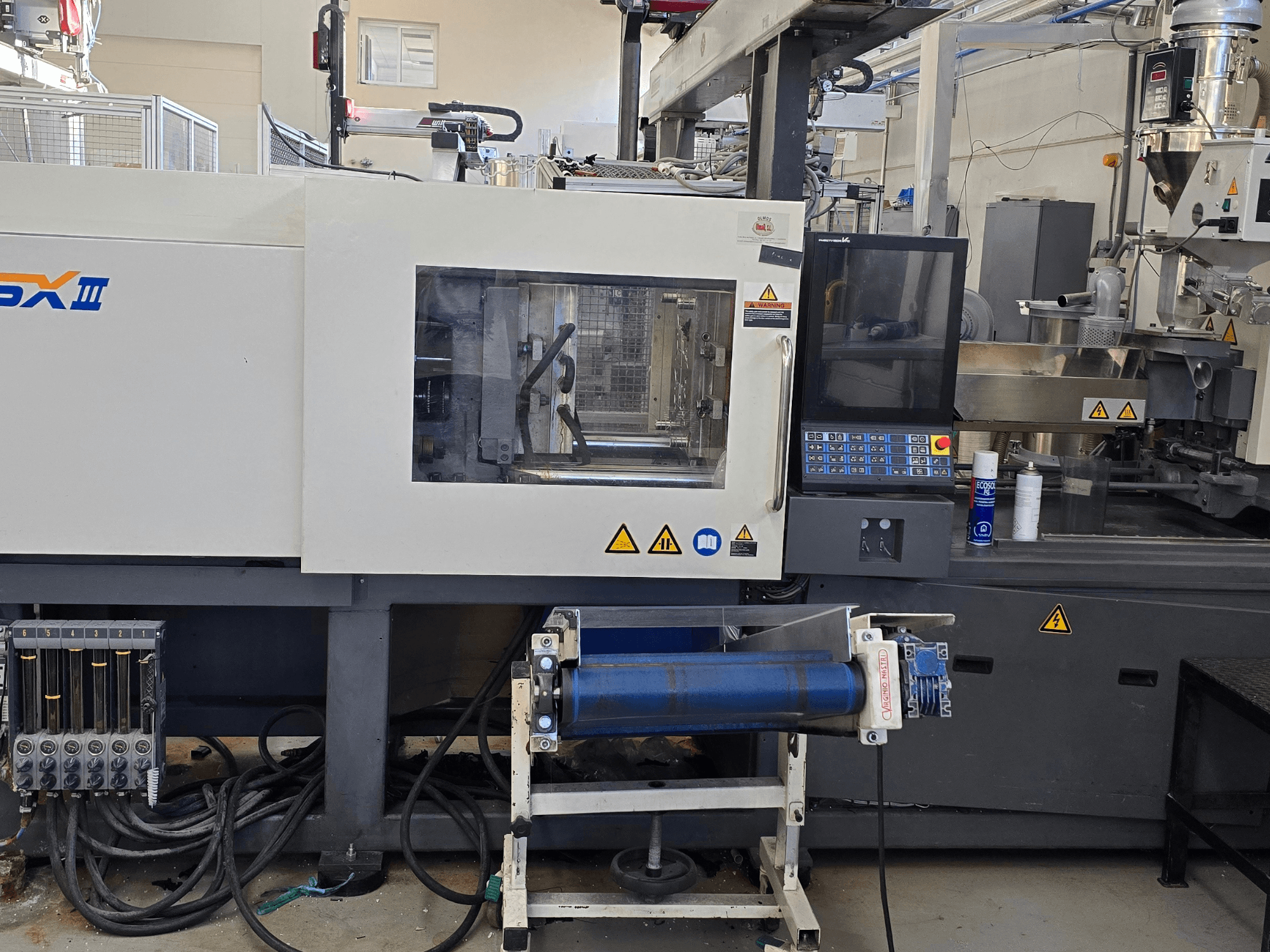

This 3-axis SHIBAURA EC130SXIII-4A was manufactured in 2019. It features a clamping force of 1270 kN and a mold opening stroke of 400 mm. The machine has a maximum distance between platens of 950 mm and platen dimensions of 720 x 670 mm. If you are looking to get high-quality injection molding capabilities, consider the SHIBAURA EC130SXIII-4A electrical injection moulding machine we have for sale. Contact us for further details.
Overview
- brand: SHIBAURA
- year: 2019
- MODEL: EC130SXIII-4A
- production hours: 21000
- application type: Injection Moulding
- Location: Spain
- machine type: Electrical Injection Moulding Machine
- control unit brand:
Technical Information - SHIBAURA EC130SXIII-4A
Dimensions
- Machine Height: 1700 mm
- Machine Length: 5100 mm
- Machine Weight: 5300 kg
- Machine Width: 1500 mm
Technical Specification
- Clamping Force: 1270 kN
Additional Information
Distance between tie bars (H x V): 510 x 460 mm
Platen dimensions (H x V): 720 x 670 mm
Mold opening stroke: 400 mm
Max. distance between platens: 950 mm
Mold height (min–max): 180–550 mm
Ejection force: 30 kN (3.0 tf)
Ejection stroke: 90 mm
Injection unit code: 14
Nozzle touch force: 17.7 kN (1.8 tf)
Injection speed (standard): 300 mm/s
Injection speed (high torque): 200 mm/s
Injection speed (high speed): 400 mm/s
Main breaker capacity (standard/high torque): 100 A
Main breaker capacity (high speed): 125 A
Transformer (standard): 75 kVA
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
