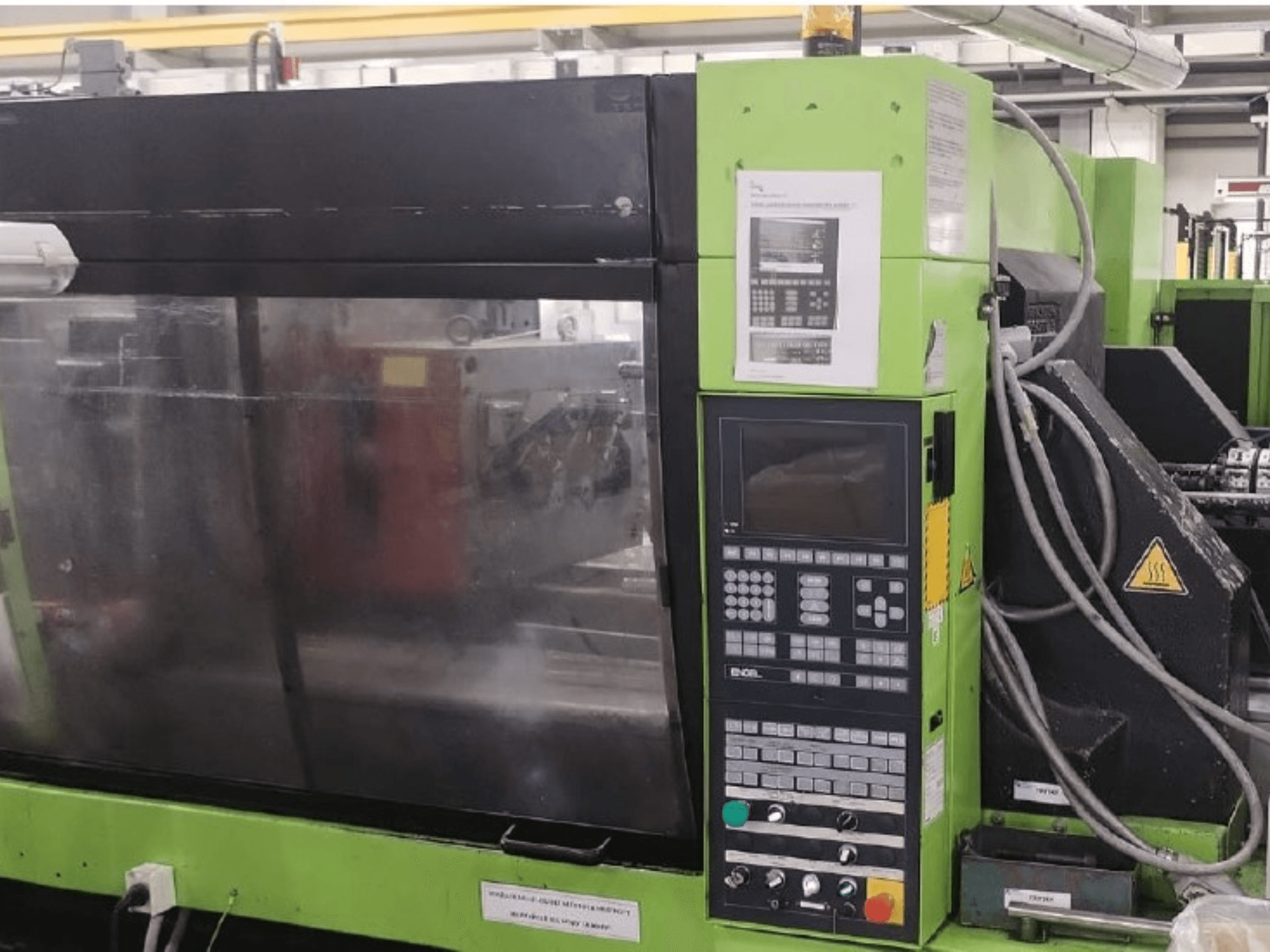

Hydraulic injection moulding machine manufactured in 2003. This Engel ES 1050/275 HL-V features a clamping force of 275 t and a maximum platen stroke of 1200 mm. It has a screw diameter of 60 mm and a maximum injection volume of 607 ccm. If you are looking to get high-quality injection moulding capabilities, consider the Engel ES 1050/275 HL-V machine we have for sale. Contact us for further details regarding this machine.
Overview
- brand: Engel
- year: 2003
- MODEL: ES 1050/275 HL-V
- application type: Injection Moulding
- Location: Czech Republic
- machine type: Hydraulic Injection Moulding Machine
Technical Information - Engel ES 1050/275 HL-V
Technical Specification
- Clamping Force: 2750 kN
- Max. Shot Weight: 547 g
- Screw Diameter: 60 mm
Additional Information
Screw diameter: 60 mm
Injection pressure: 1725 bar
Platen dimensions: 1050 x 650 (900) mm
Tie-bar spacing: Tie-bar-less (nemá)
Max. platen stroke: 1200 mm
Min. mold height: 350 mm
Centering ring: 160 mm
Ejector pin length: 330 mm
Ejector pin internal thread: M16
Core pulls: 2
Air blow: 1
Hydraulically operated nozzles: No
Pneumatically operated nozzles: No
Number of hot runners: 8
Max. injection volume: 607 ccm
Working hours: 60,701.3 h
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
