- ENGEL ES 16050/2000 Duo Injection moulding machine
Show in original language

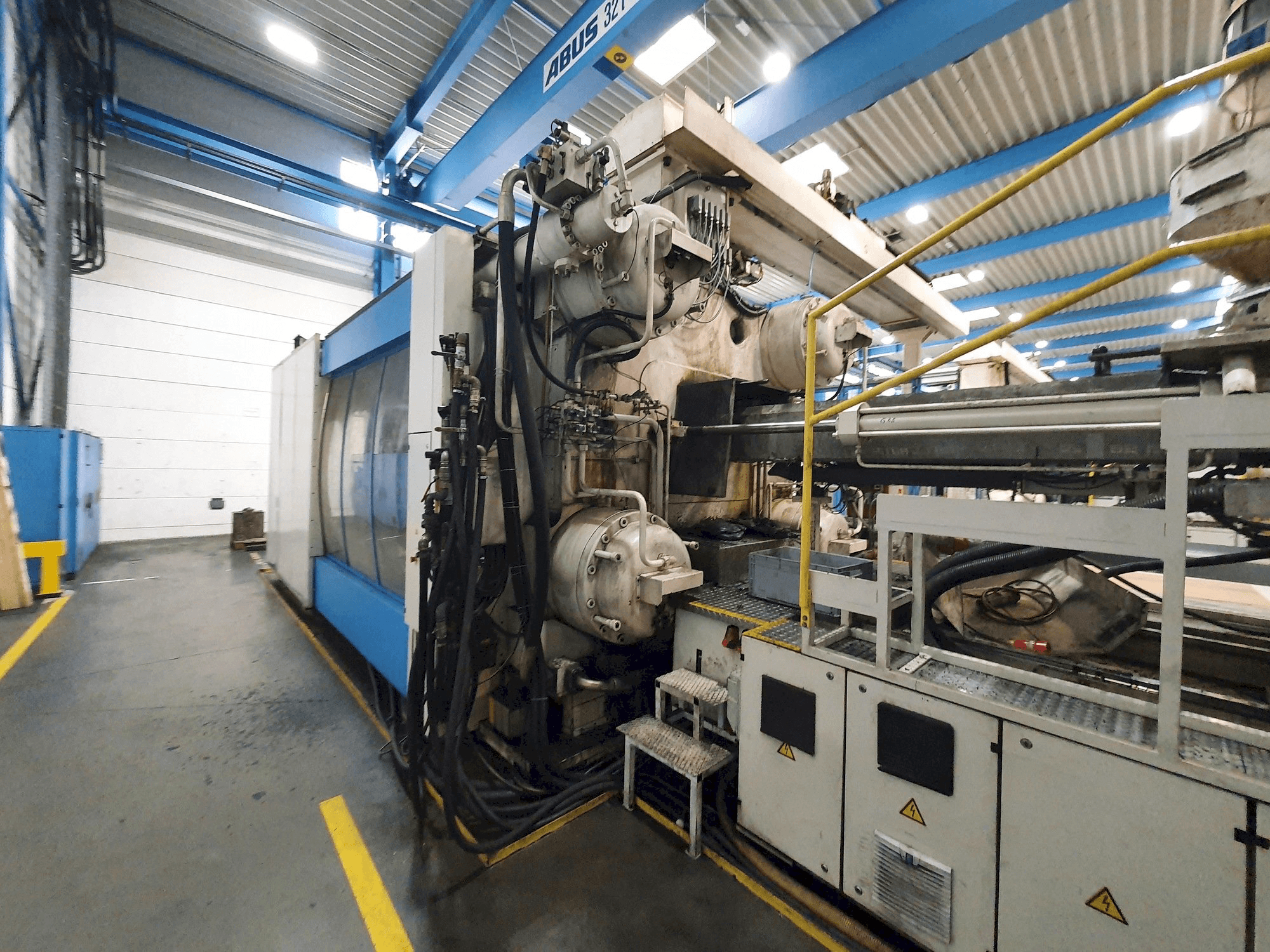

This ENGEL ES 16050/2000 Duo Injection moulding machine was manufactured in the year 1997. It is equipped with an Engel control unit. The machine has a clamping force of 20000 kN.
Overview
- brand: Engel
- year: 1997
- MODEL: ES 16050/2000 Duo
- production hours: 31513
- application type: Injection Moulding
- Location: Germany
- machine type: Hydraulic Injection Moulding Machine
Technical Information - Engel ES 16050/2000 Duo
Dimensions
- Machine Weight: 15000 kg
Technical Specification
- Clamping Force: 20000 kN
- Screw Diameter: 135 mm
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Linear handling robot engel type erc xxl
- Protective enclosure
- Power connections: 370 kw
Technical Machine Benefits
- Bar distance horizontal/vertical 2000/1600 mm
- Clamping platen horizontal/vertical, 2900/2500 mm
- Mold installation height max/min 1800/900 mm
- Total mold weight: 54000 kg
- Mold opening stroke: 3000 mm
- Centering ds/as :250/250 mm
- Crosshead thread m30
- Injection pressure: 16400 n/cm3, injection volume 8870 cm3
- Cascade 6-fold, core pulls fap/bap 2/3
- Heating circuits ma/psg 32/12
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
