Engel Victory 200/30 Tech US

Photo Gallery

Engel - Victory 200/30 Tech USUS-INJ-ENG-2014-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery

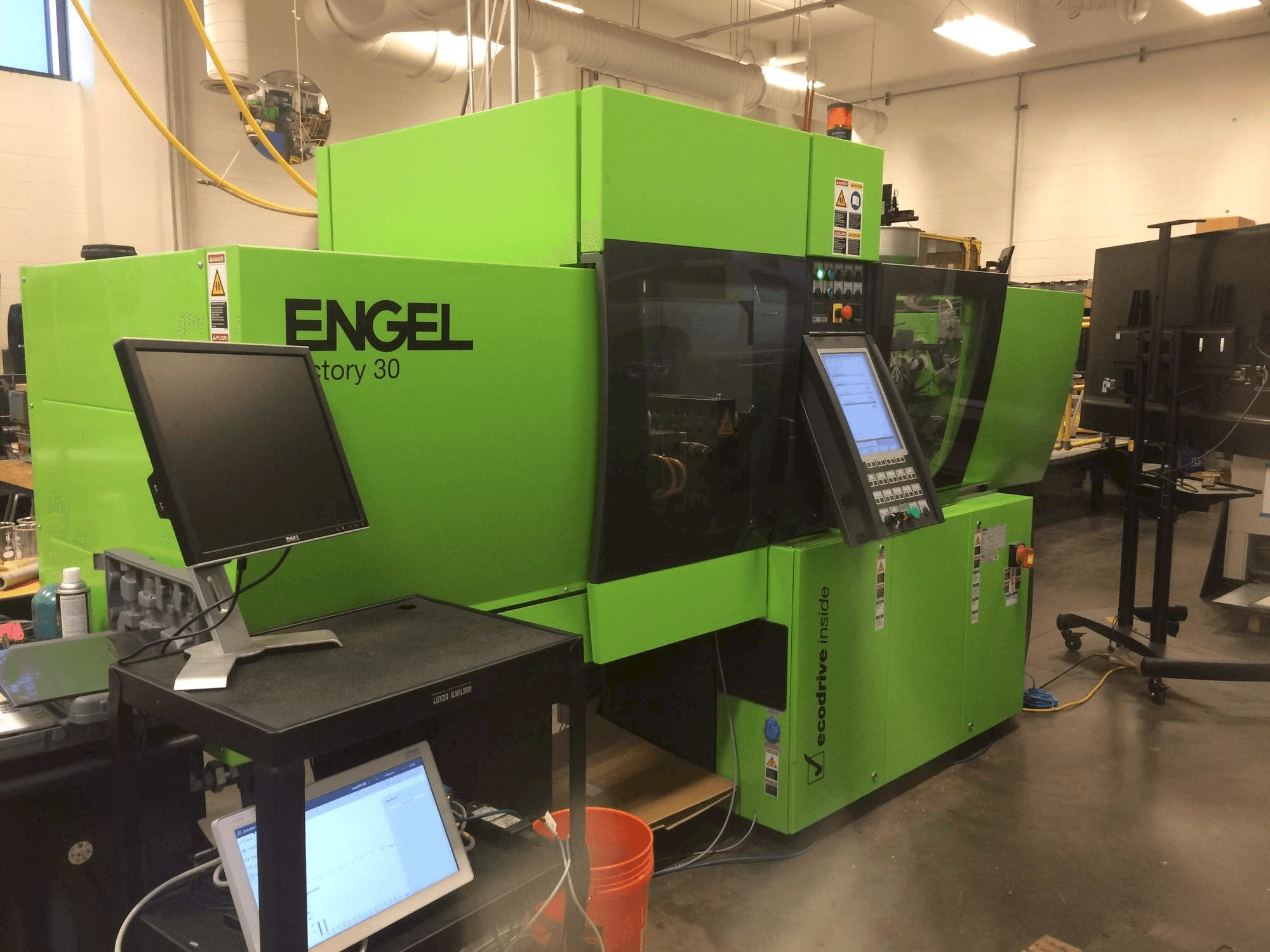

ENGEL Victory 200/30 Tech US Injection Moulding Machine

Show in original language

This ENGEL Victory 200/30 Tech US Injection Moulding Machine was built in Austria in 2014. It has been operative for 924 hours since then. This machine stands out for its unique tie-bar-less technology raises the efficiency and cost-effectiveness. It also has a maximum flexibility of mould dimensions. This allows for relatively large and technically complex moulds with moderate clamping forces.

Overview

brand: Engel
year: 2014
MODEL: Victory 200/30 Tech US
production hours: 924
application type: Injection Moulding
Location: United States
machine type: Hydraulic Injection Moulding Machine
control unit brand: ENGEL

Technical Information - Engel Victory 200/30 Tech US

Control Unit

Control Brand: ENGEL
Control Model: CC200

Technical Specification

Clamping Force: 300 kN

Additional Information

Machine Benefits

Qualitative Machine Benefits

Energy efficient hydraulic system with low noise leve
Valves placed close to the hydraulic appliances
Closed-loop controlled pre-heating and cooling of oil
Filtration with low wear of oil
Excellent energy efficiency by high dynamic servo pump
High-speed-injection hsi by accumulator
Mucell-software to maintain required melt pressure permanentaly, screw position and hydraulic shut off nozzle control

Technical Machine Benefits

Two-piece open nozzle (with removable tip)
Mucell-basic package
Injection unit swiveling
Solenoid operated pneumatic valve 2/2-ways, r1/4 inch ports, located on stationary platen, for airblow only (without tubing)
Maximum flexibility of mould dimensions
Maximum platen parallelism – static and dynamic
No tie-bars, maximum scope

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
