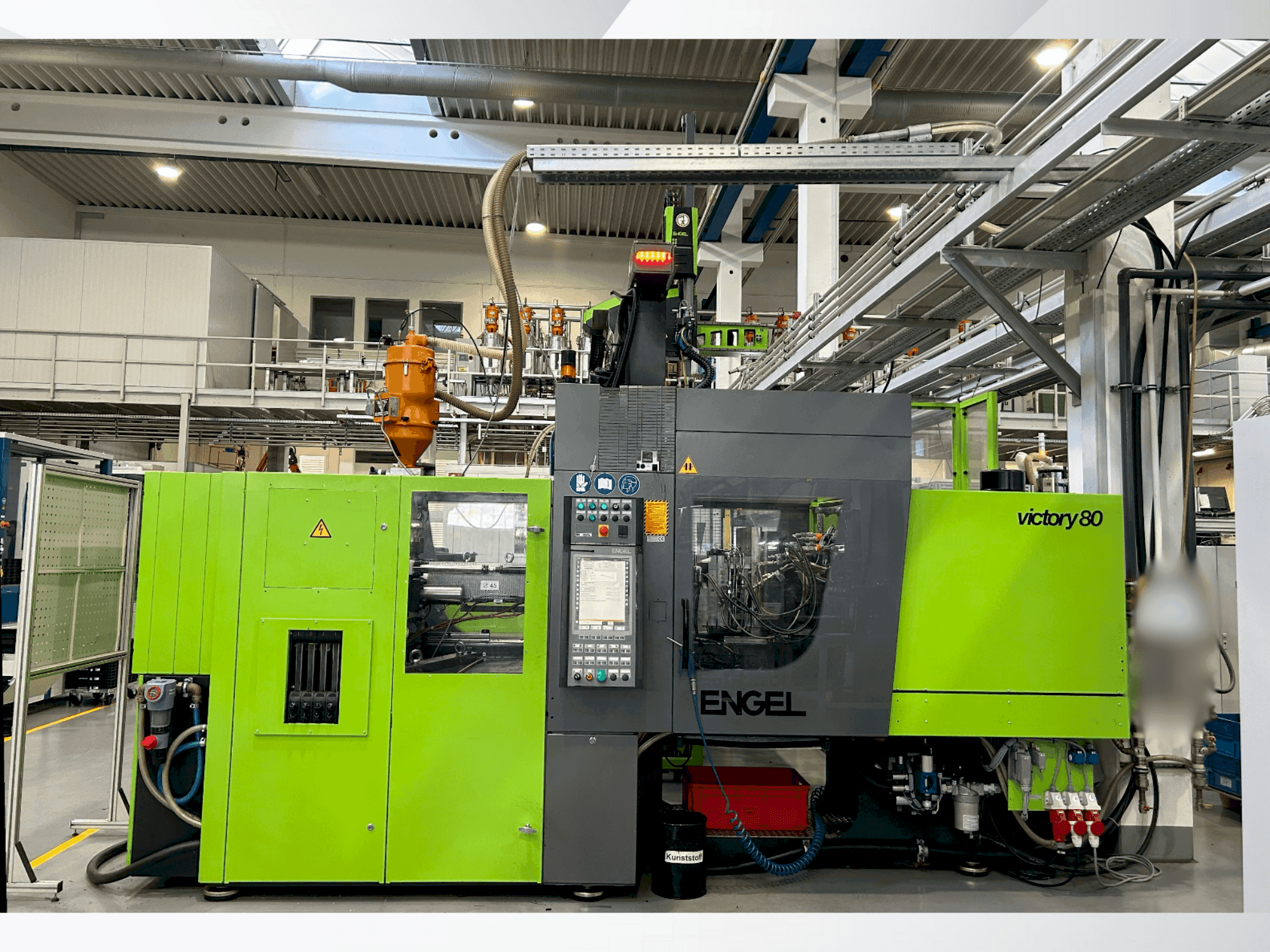

Front view of Engel VICTORY 500/80 (2011) machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Engel VICTORY 500/80

Photo Gallery

Engel - VICTORY 500/80DE-INJ-ENG-2011-00007

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used Engel VICTORY 500/80 For Sale | gindumac.com

Show in original language

This hydraulic injection moulding machine was manufactured in 2011. It features an 800 kN clamping force and a screw diameter of 45mm, capable of a shot volume of 306ccm. The platen size is 670mmx670mm, and it can handle a mould opening height from 300mm to 900mm. Consider the opportunity to buy this Engel VICTORY 500/80 hydraulic injection moulding machine. Contact us for more information about this machine.

Overview

brand: Engel
year: 2011
MODEL: VICTORY 500/80
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
control unit brand: ENGEL

Technical Information - Engel VICTORY 500/80

Control Unit

Control Brand: ENGEL
Control Model: eco victory 500/80

Technical Specification

Clamping Force: 800 kN
Screw Diameter: 45 mm

Additional Information

Additional equipment

Core pull DS 1 time AS 2 times

Machine Benefits

Technical Machine Benefits

Quick stroke/opening stroke
Distance between bars: tie-bars loose machine
Pumpenantriebsleitung / pump drive power 15 kw
Handling system is included in the scope of delivery

Extra Information

Injection unit 1 Schneckendurchmesser / Screw diameter 35/35/40/45 mm Max. Hubvolumen / Max. swept volume 192/192/251/318 cm3 Screw speed max / Screw speed max 400/400/400/320 r/min Screw speed max current / Screw speed max current 320 r/min Einspritzstrom / Injection rate 151/151/197/250 cm3 / s Einspritzstrom erhöht / Injection rate increased 98/98/128/162 cm3 / s Spez. Spritzdruck / Spec. injection pressure Injection pressure 1703/1703/1297/1030 bar Spez. Spritzdruck erhöht / Spec. injection pressure increased Injection pressure increased 2390/2390/2023/1598 bar Nozzle stroke 300 mm Nozzle cont. pressure / Nozzle cont. Pressure 51,9 kN

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
