➤ Used Enshu ES450 For Sale | gindumac.com

Show in original language

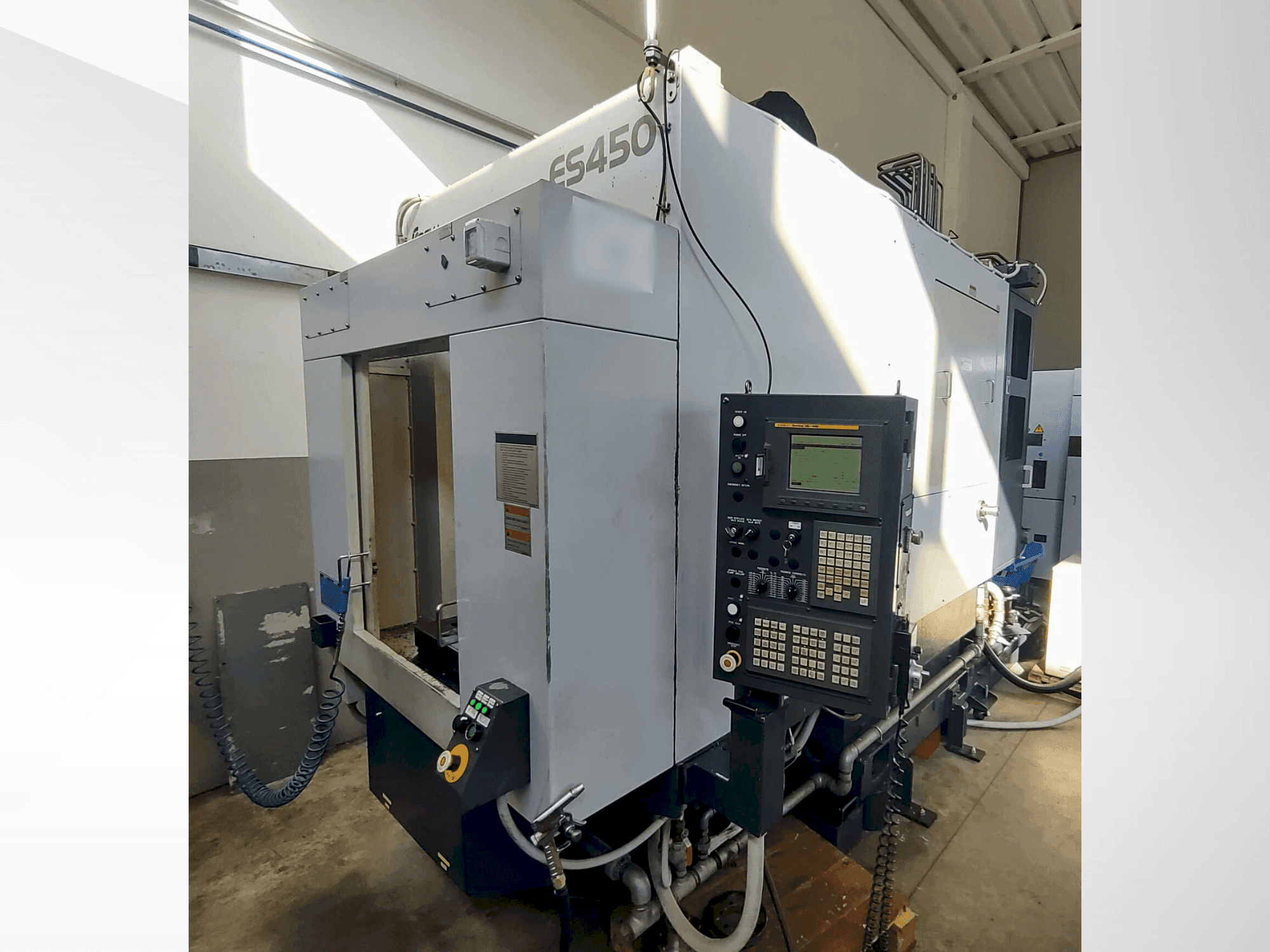

This Enshu ES450 was manufactured in 2004. It features a spindle speed of up to 12,000 min⁻¹, a tool storage capacity of 20, and a rapid traverse feed rate of 60,000 mm/min. The machine accommodates a maximum workpiece weight of 800 kg and offers a cutting feed rate of up to 15,000 mm/min. Consider the opportunity to buy this Enshu ES450 vertical machining centre. Contact us for more information.

Overview

brand: Enshu
year: 2004
MODEL: ES450
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - Enshu ES450

Control Unit

Brand: FANUC
Model: 18i-MB

General Data

Measurements width: 3390 MM
Measurements depth: 1580 MM
Measurements height: 3138 MM
Machine weight: 7700 KG

Main drive

Spindle speed range: 40 - 12000 1/MIN
Spindle motor power: AC 15 kW / 11 kW / 7.5 kW

Movement

X-AXIS Movement: 650 MM
Y-AXIS Movement: 450 MM
Z-AXIS Movement: 460 MM

Table

Outer length: 900 mm
Outer width: 450 mm
Table load: 800 kg

Tools

Slots in storage: 20 tools
Max weight: 8 kg
Max tool diameter: 90 mm (160 mm without adjacent tool)
Max tool length: 250 mm

Additional Information

Additional equipment

Pallet System (Pallet change method: Rotary type, Pallet change time: 5 sec)

Machine Benefits

Qualitative Machine Benefits

Tool change time (cutting to cutting): 3. 0 sec
Feed motors (x/y/z): 3. 8 kw (y: 2 motors)
Hydraulic pump motor: 1. 5 kw
Lubricant pump motor: 17 w
Magazine motor: 0. 9 kw
Required electric power: 35 kva
Compressed air consumption: 300 l/min (0. 4–0. 8 mpa)
Table height from floor: 850 mm

Technical Machine Benefits

Distance from table top to spindle center: 200–660 mm
Table configuration: 12 mm grooves with 16-m12 threads
Tapered bore: 7/24 taper no. 40
Spindle bearing inner diameter: 65 mm
Rapid traverse feed rate: 60000 mm/min
Cutting feed rate: 1 – 15000 mm/min
Tool shank: mas bt40
Pull stud: mas p40t-p
Tool selection method: nearest absolute address
Tool change time (tool to tool): 2. 11 sec

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
