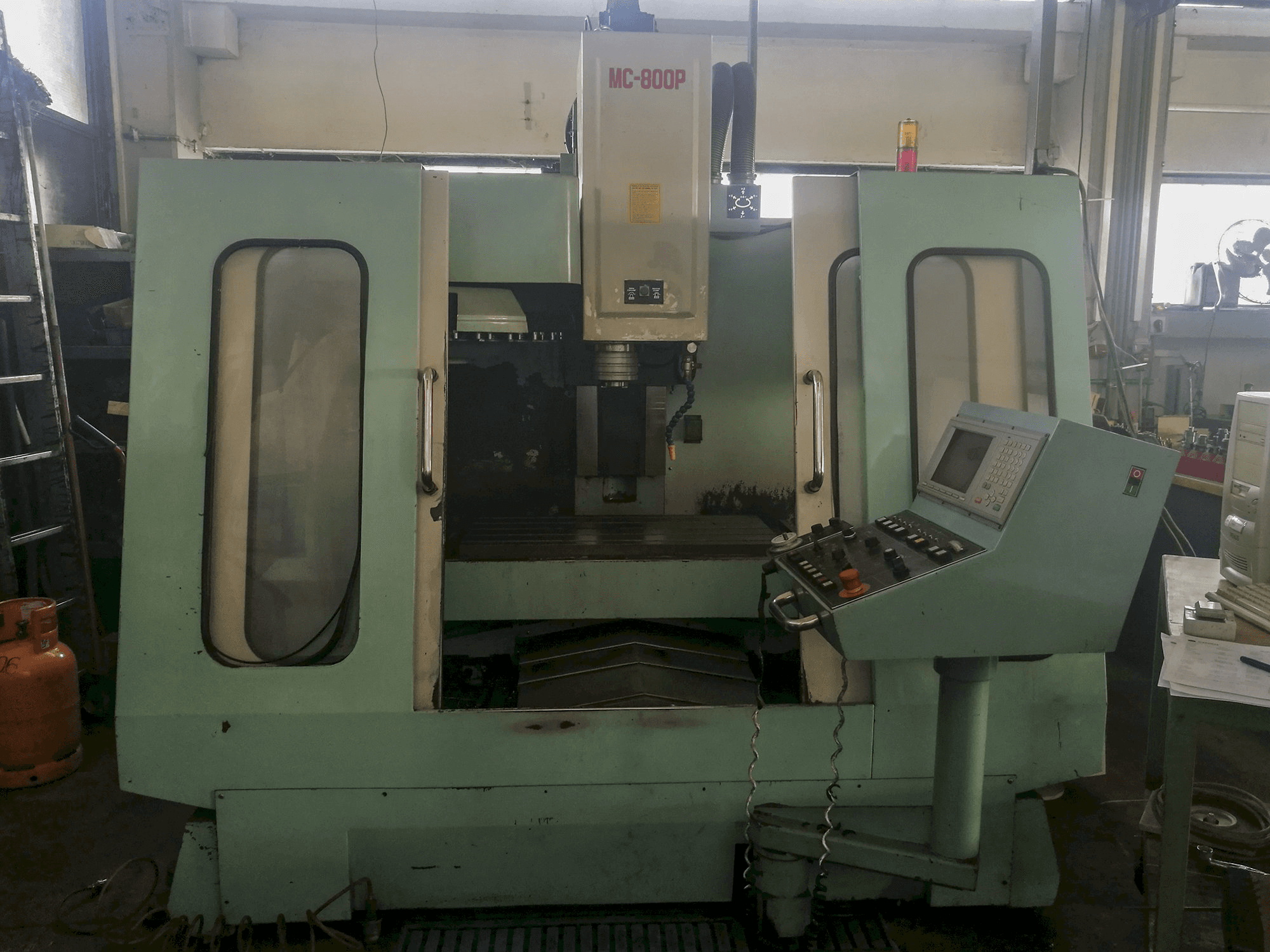

Front view of Eumach MC-800P Machine

Eumach MC-800P

Eumach - MC-800P



Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

Click to chat on WhatsApp
Show in original language

This Eumach MC-800P Vertical Machining Center from 1997 was fabricated in Taiwan and has a production time of approximately 36000 working hours. Operated through a Mitsubishi Meldas 520 Control unit, this model allows simultaneous axis operation and stands out due to a big table. During the past, this machine has mainly worked with steel parts. A Renishaw workpiece probe is available upon request.


  • brand: Eumach
  • year: 1997
  • MODEL: MC-800P
  • production hours: 36000
  • application type: Milling
  • Location: Croatia
  • machine type: Machining centers (vertical)
  • availability: Sold
  • control unit brand: Mitsubishi
  • GINDUMAC ID: HR-MIL-EUM-1997-00001

Technical Information

General Data

  • Measurements width: 2400 mm
  • Measurements depth: 3000 mm
  • Measurements height: 2600 mm
  • Machine weight: 5500 kg

Control Unit

  • Brand: Mitsubishi
  • Model: Meldas 520
  • CNC main language: English

Main drive

  • Number of spindles: 1
  • Spindle speed range: 6000 1/min


  • X-AXIS Movement: 800 mm
  • Y-AXIS Movement: 510 mm
  • Z-AXIS Movement: 510 mm


  • Workpiece weight: 500 kg


  • Outer length: 1000 mm
  • Outer width: 500 mm
  • Number of tslots: 5
  • Distance between: 100 mm


  • Slots in storage: 24
  • Max weight: 7 kg
  • Max tool diameter: 150 mm
  • Max tool length: 300 mm
  • Type of tool holder: BT40


  • Main electronic connection: 220 V
  • Power consumption: 20 kVA

    Additional Equipment

    • - Renishaw workpiece probe (upon request)

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
