Euromac - MTX Flex 6 HybridPL-PUN-EUR-2013-00001

Name: Euromac MTX Flex 6 Hybrid
Brand: Euromac
SKU: PL-PUN-EUR-2013-00001
Price: 55000 EUR
Availability: InStock

55,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used Euromac MTX Flex 6 Hybrid For Sale | gindumac.com

Show in original language

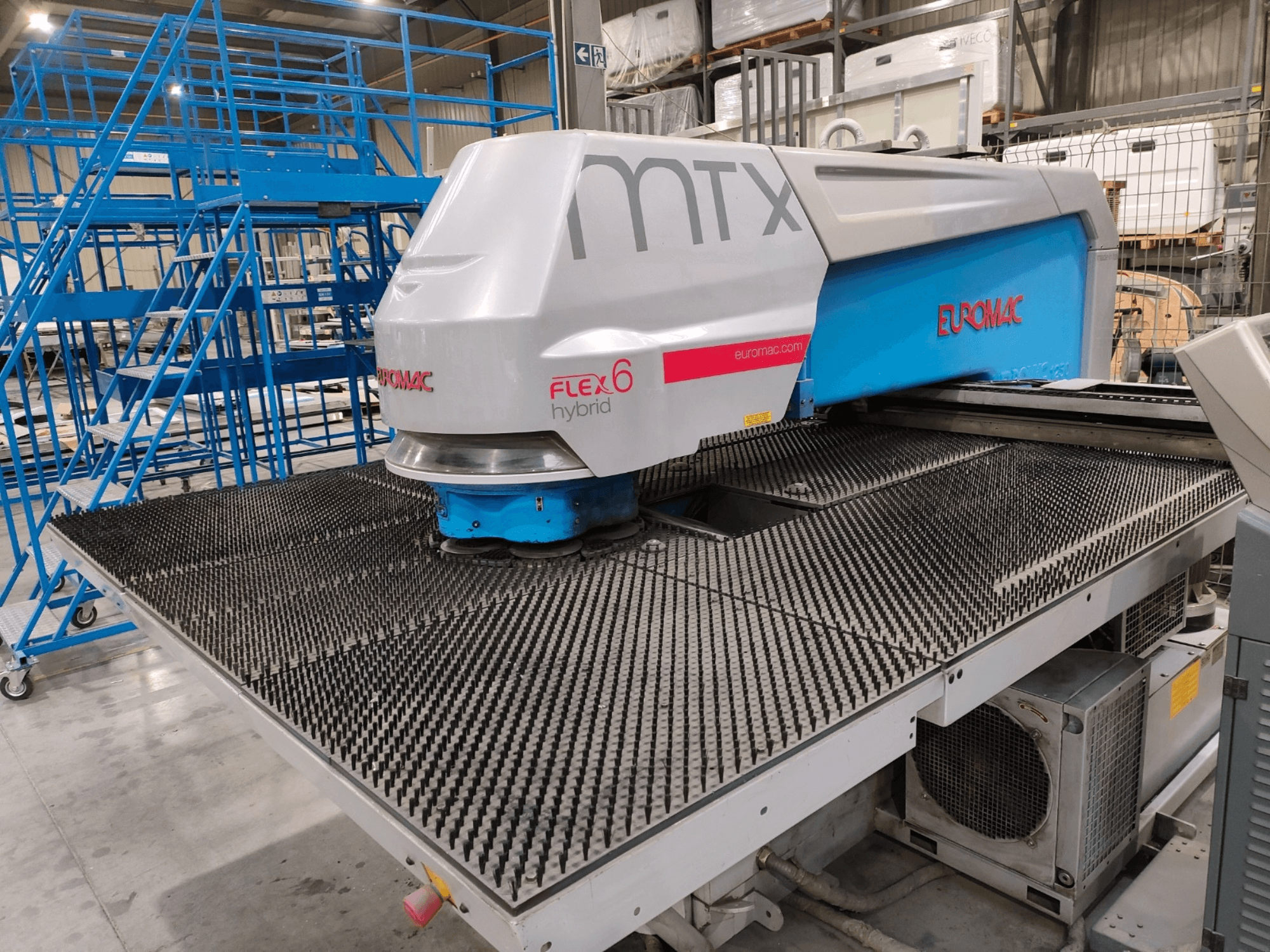

This Euromac MTX Flex 6 Hybrid was manufactured in 2013. It features a maximum punching force of 300 kN and can handle sheet weights up to 200 kg. Equipped with a hydraulic system controlled by a servomotor, it ensures precision and efficiency. The machine supports automatic repositioning up to 10000 mm and has a maximum punching diameter of 85 mm. Ideal for high-quality punching capabilities. Contact us for more information about this machine.

Overview

brand: Euromac
year: 2013
MODEL: MTX Flex 6 Hybrid
application type: Punching
Location: Poland
machine type: CNC Punching Machine

Technical Information - Euromac MTX Flex 6 Hybrid

Dimensions

Machine Weight: 6500 kg

Technical Specification

Punching Force: 300 Kn

Additional Information

Y-axis stroke with multitool/single-tool: 1250 / 1300 mm
X-axis stroke: 1250 / 1300 mm
Automatic repositioning: up to 10000 mm
Punch stroke adjustment range: 0.1–31 mm
Hydraulic system with servomotor control: standard
Punching accuracy: ±0.05 mm
Shape repeatability accuracy: ±0.1 mm
Autoindex rotation speed: 174 rpm
Maximum strokes per minute:
- Punching at 20 mm pitch: 375 1/min
- Nibbling at 1 mm pitch: 1000 1/min
- Marking: 2000 1/min
Maximum sheet weight at reduced speed: 200 kg
Maximum punching diameter (Autoindex stations): 85 mm
Hydraulic tank capacity: 135 liters
Installed power: 8.5 kW
Average power consumption: 4.5 kW/h
Workpiece discarding trap: 350 × 350 mm
Overall dimensions: 2240 × 3630 mm
Status: The machine is currently disconnected, but can be connected and inspected. It is fully functional.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
