FADAL - 4020 FX HU-MIL-FAD-2007-00001

15,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

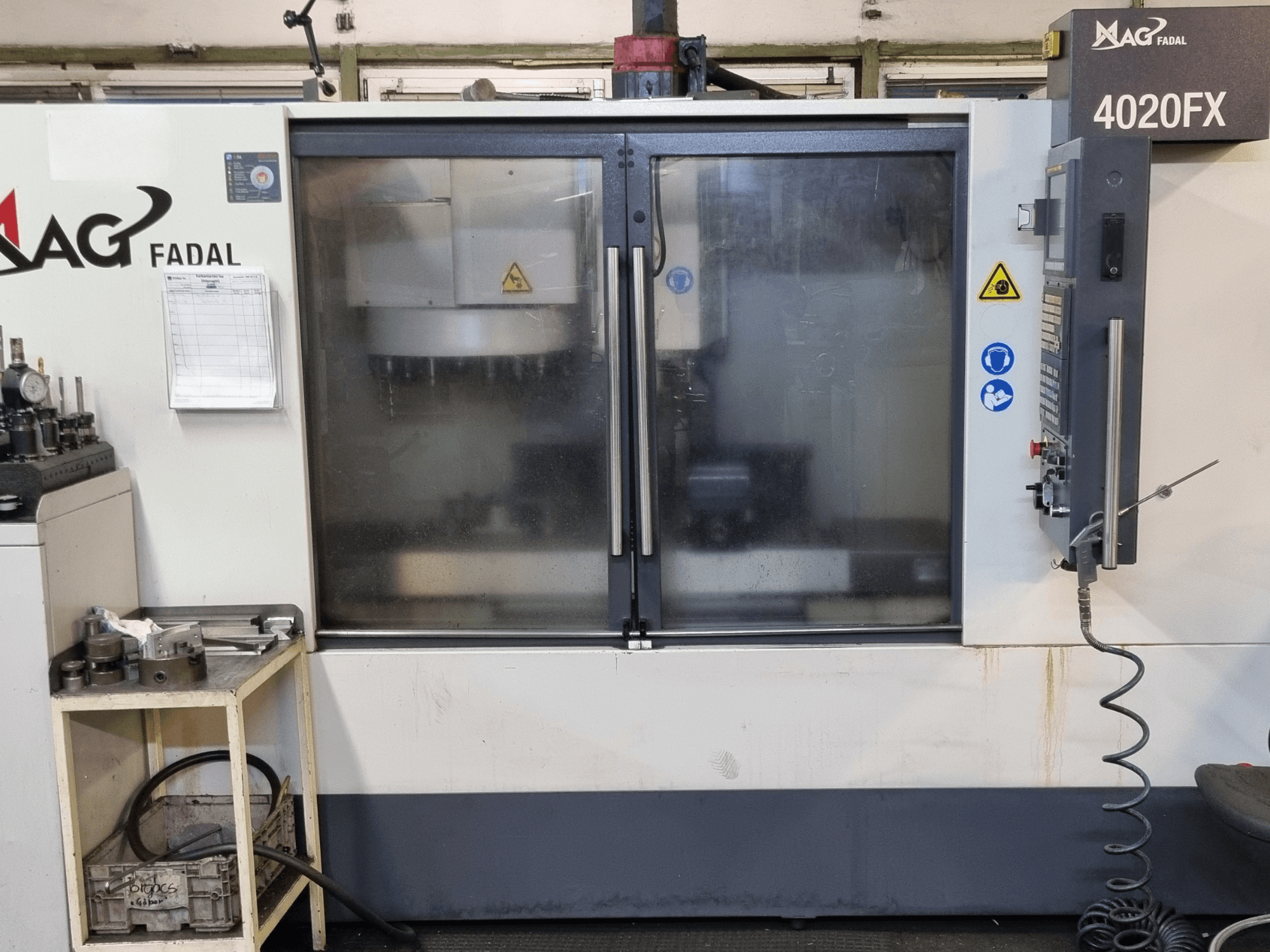

This 3-axis FADAL 4020 FX vertical machining centre was manufactured in 2007. It features an impressive X-axis travel of 1,016 mm, Y-axis travel of 508 mm, and Z-axis travel of 508 mm. The machine includes a robust table size of 1,219 x 508 mm and a maximum table load of 1,652 kg. If you are looking to get high-quality machining capabilities, consider the FADAL 4020 FX machine we have for sale. Contact us for further details.

Overview

  • brand: FADAL
  • year: 2007
  • MODEL: 4020 FX
  • application type: Milling
  • Location: Hungary
  • machine type: Vertical Machining Centre

Technical Information - FADAL 4020 FX

Dimensions

  • Machine Weight: 4990 kg
  • Table Load: 1652 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 1016 mm
  • Y-axis Travel: 508 mm
  • Z-axis Travel: 508 mm

Technical Specification

  • Max. Tool Weight: 6.8 kg
  • Spindle Power: 16 kW
  • Spindle Speed: 8000 RPM
  • Taper Size: ISO 40

Additional Information

  • Table

    • Size: 48" x 20" (1,219 x 508 mm)

    • T-slots: 5 x 18 mm x 95 mm

  • Feed rates

    • Cutting feed (X/Y/Z): 800 ipm (20.32 m/min)

    • Rapid traverse: 1,000 ipm (25.4 m/min)

  • Accuracy

    • Positioning accuracy: ±0.0002" (±0.0050 mm)

    • Repeatability: ±0.0001" (±0.0025 mm)

  • Spindle

    • Orientation: Electromechanical

    • Drive: AC vector drive

  • Power

    • Spindle motor: 17.75 HP (22.1 HP peak)

    • Torque: 39 ft-lbs (78 ft-lbs peak)

    • Optional high torque: 15 HP / 227 ft-lbs

  • Tool changer (ATC)

    • Capacity: 21 tools (30 optional)

    • Selection: Random, bi-directional

    • Max tool diameter: 76 mm (114 mm without adjacent tools)

    • Max tool length: 381 mm

  • Machine data

    • Power requirement: 76 A, 230 V, 3-phase

    • Air requirement: 120 psi, 15 scfm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Borja Garcia

Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
