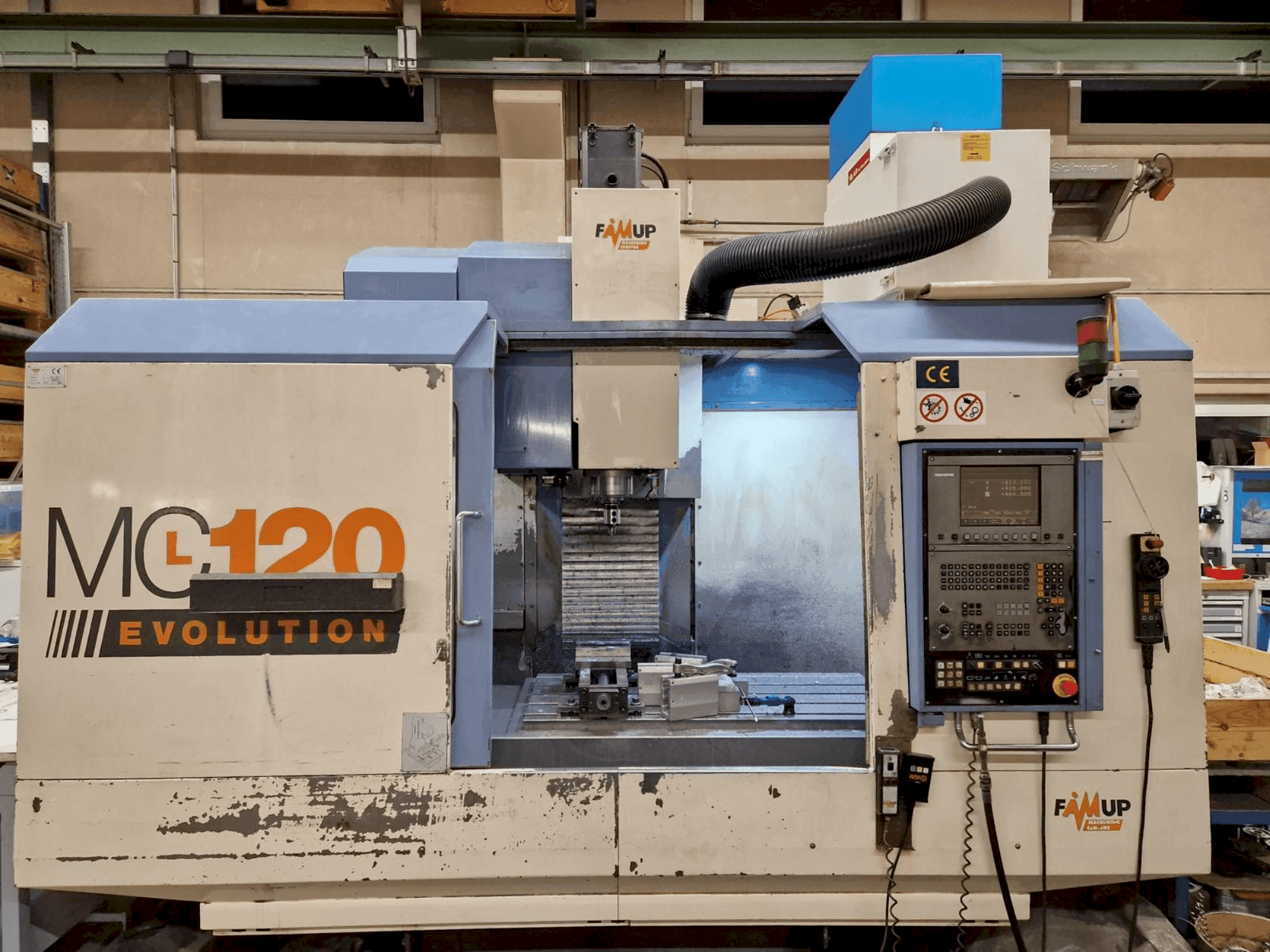

Front view of FAMUP MCL 120 Evolution  machine

FAMUP - MCL 120 EvolutionDE-MIL-FAM-2002-00001

28,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis FAMUP MCL 120 Evolution vertical machining centre was manufactured in 2002. It features a large work range with X, Y, Z axes at 1200 mm, 600 mm, and 640 mm respectively, and a rapid traverse rate up to 30,000 mm/min. The spindle supports speeds from 50 to 10,000 rpm, and the tool magazine holds 24 slots. If you are looking to get high-quality milling capabilities, consider the FAMUP MCL 120 Evolution machine we have for sale. Contact us for more information.

Overview

  • brand: FAMUP
  • year: 2002
  • MODEL: MCL 120 Evolution
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • availability: Immediately
  • control unit brand: HEIDENHAIN

Technical Information - FAMUP MCL 120 Evolution

General Data

  • Measurements width: 2100 mm
  • Measurements depth: 3350 mm
  • Measurements height: 3160 mm
  • Machine weight: 6500 kg

Control Unit

  • Brand: HEIDENHAIN

Movement

  • X-AXIS Movement: 1200 MM
  • Y-AXIS Movement: 600 MM
  • Z-AXIS Movement: 640 MM

Table

  • Outer length: 1300 mm
  • Outer width: 620 mm
  • Table load: 800 kg

    Additional Equipment

    • - Machine comes without suction unit (blue white thing on top of machine, see WA0104), without tools (WA0053) and without clamping system (WA0064)

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Sound level: 71. 5 db(a)
        • - Minimum compressed air pressure: 6 bar
        • - Foundation: unreinforced concrete
        • - Working feed (x, y, z): 10000 mm/min / rapid traverse (x, y, z): 30000 mm/min / working force (s1, x, y): 4800 n / working force (s1, z): 7200 n
        • - Number of slots: 5 / slot width: 18 mm / slot spacing: 125 mm
        • - Magazine slots: 24 / tool selection: double-sided / maximum tool diameter: 75 mm / maximum tool length: 280 mm / maximum tool weight: 6 kg / tool change time: 1. 7 seconds / tool change time: 1. 7 seconds
        • - Positional accuracy in one direction (x, y, z): ±5 micra/ repeatability in one direction (x, y, z): ±1. 5 micra
        • - Average reversal error: 3 micra/ coolant tank capacity: 350 dm³
        • - Pump type: centrifugal pump / max delivery rate: 4 dm³/min / max pressure: 25 bar

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
