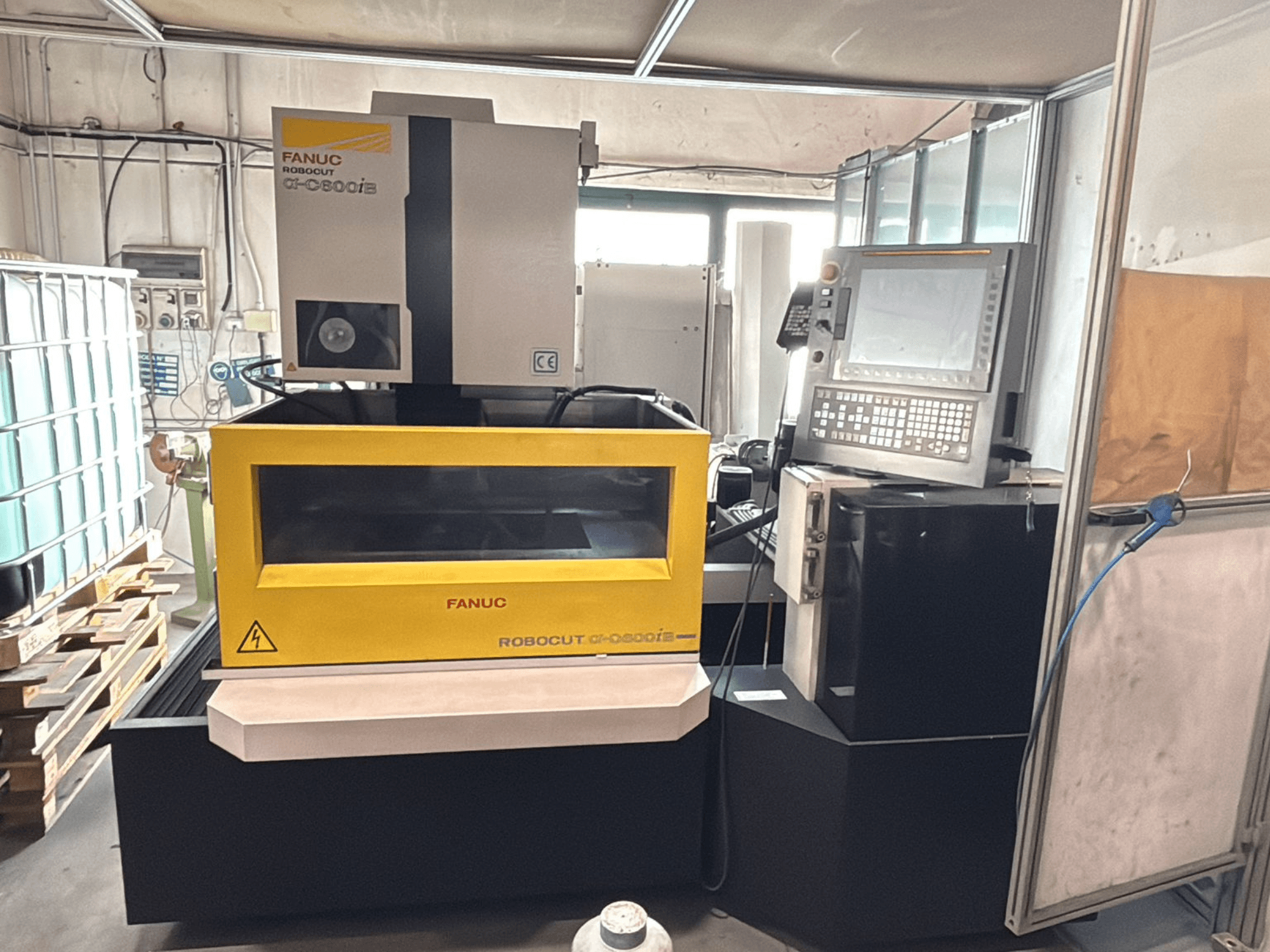

FANUC - ROBOCUT C600IBIT-EDM-FAN-2016-00001

Maximum workpiece dimensions: 1050 × 820 × 300 mm

Maximum workpiece weight: 1000 kg

XY table travel: 600 × 400 mm

Z-axis travel: 310 mm

UV-axis travel: 200 × 200 mm

Table Dimensions (Z-axis 400 mm option)

Z travel: 400 mm

Max workpiece (standard door): 1050 × 820 × 400 mm

Max workpiece (automatic door): 1050 × 775 × 300 mm

Maximum taper angle: ±30° / 150 mm

Maximum taper angle with 45° guide: ±45° / 70 mm

Minimum programming increment: 0.0001 mm

Wire diameter: Ø 0.10 – Ø 0.30 mm

Maximum wire weight: 16 kg

Optional 30 kg wire feed unit

Machine footprint: 2440 × 2680 mm

Weight: approx. 3000 kg

Acoustic noise: LpA: 64 dB / LpCpeak: 81 dB

Power supply: AC 200V ±10% (3-phase, 50/60 Hz)

AC 220V ±10% (3-phase, 60 Hz)

Power consumption: 13 kVA

Air supply: Pressure: 0.5–0.7 MPa

Flow: 100–110 L/min

Connector: Rc1/4

Environment: Temperature: 15–30°C (20±1°C recommended for high precision)

Humidity: ≤75% RH

Clean, oil-mist-free & dust-free environment required

Grounding: Type C grounding (≤10 Ω), independent from other machines
