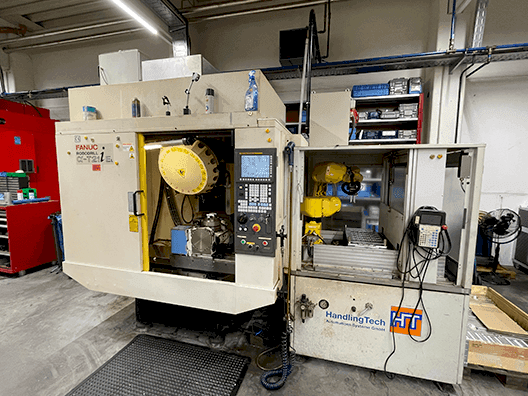

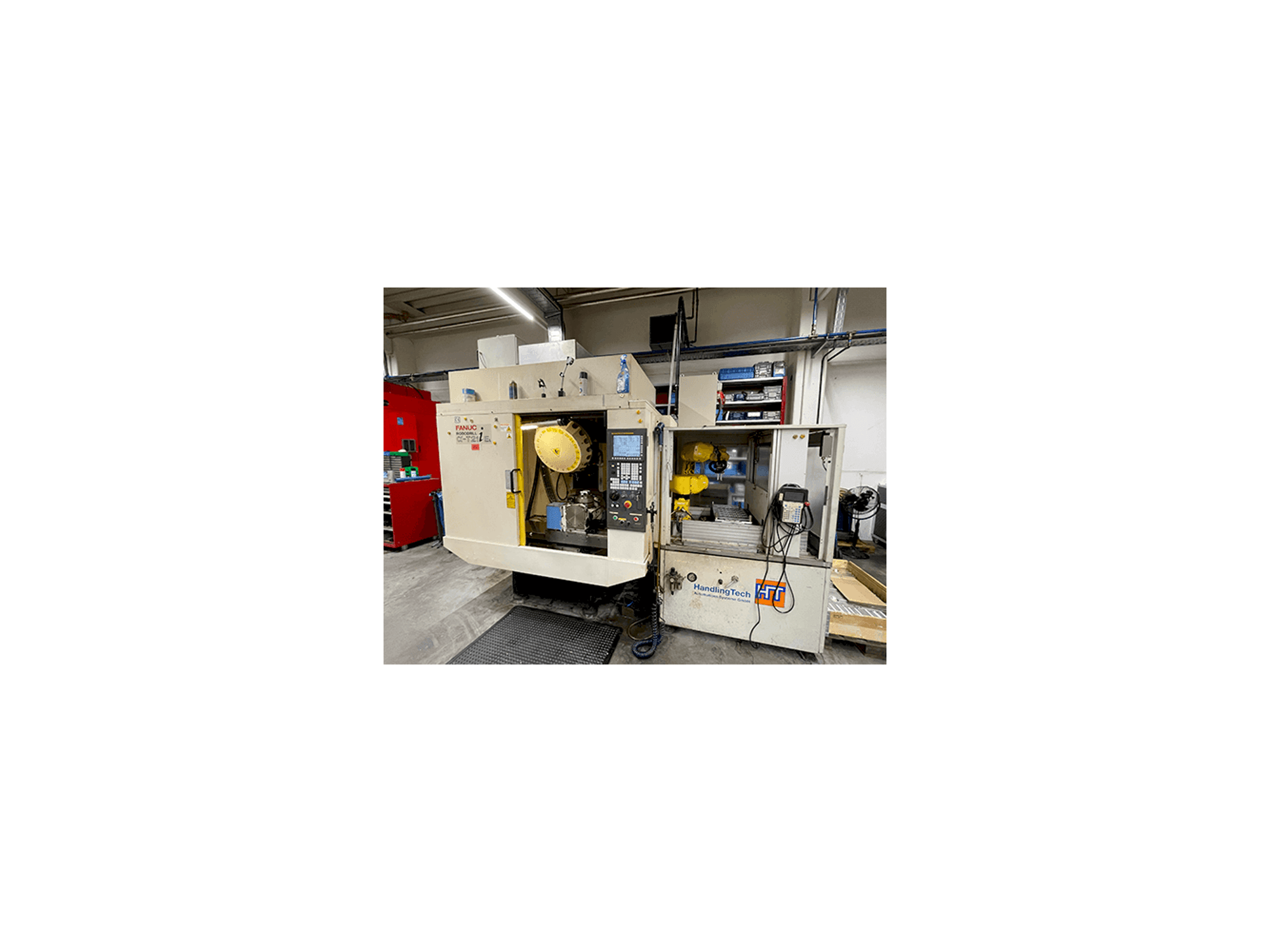

Front view of FANUC Robodrill Alpha-T21iEL machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

FANUC Robodrill Alpha-T21iEL

Photo Gallery

FANUC - Robodrill Alpha-T21iELAT-MIL-FAN-2005-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Fanuc Robodrill Alpha-T21iEL Vertical Machining center + Fanuc LR Mate 200iB robot loading

Show in original language

This Fanuc Robodrill Alpha-T21iEL Vertical Machining center + Fanuc LR Mate 200iB robot loading was manufactured in the year 2005 in Japan and has 30935 production hours. It is equipped with a Fanuc Series 31i-Model A5 control unit and has 4 axis. The machine has a spindle speed of 24000 rpm.

Overview

brand: FANUC
year: 2005
MODEL: Robodrill Alpha-T21iEL
production hours: 30935
application type: Milling
Location: Austria
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - FANUC Robodrill Alpha-T21iEL

Control Unit

Control Brand: FANUC
Control Model: Series 31i-Model A5

Dimensions

Table Length: 850 mm
Table Load: 250 kg
Table Width: 410 mm

Movement

Number of Axes: 4
X-axis Travel: 700 mm
Y-axis Travel: 400 mm
Z-axis Travel: 330 mm

Technical Specification

Spindle Power: 4 kW
Spindle Speed: 24000 RPM

Additional Information

Additional equipment

Renishaw probe + Renishaw interface
Fanuc LR Mate 200iB robot loading
1 x 2 jaw chucks
1 x 3 jaw chuck
101 tool holder
Embossing station incl. vice

Machine Benefits

Technical Machine Benefits

Tool holder: bt30
Feed rate rapid traverse: x/y/z axis: 54 m/min
Distance from table to spindle nose: 250-580 mm
Tool changer - type: umbrella
Number of tools in magazine: 21

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
