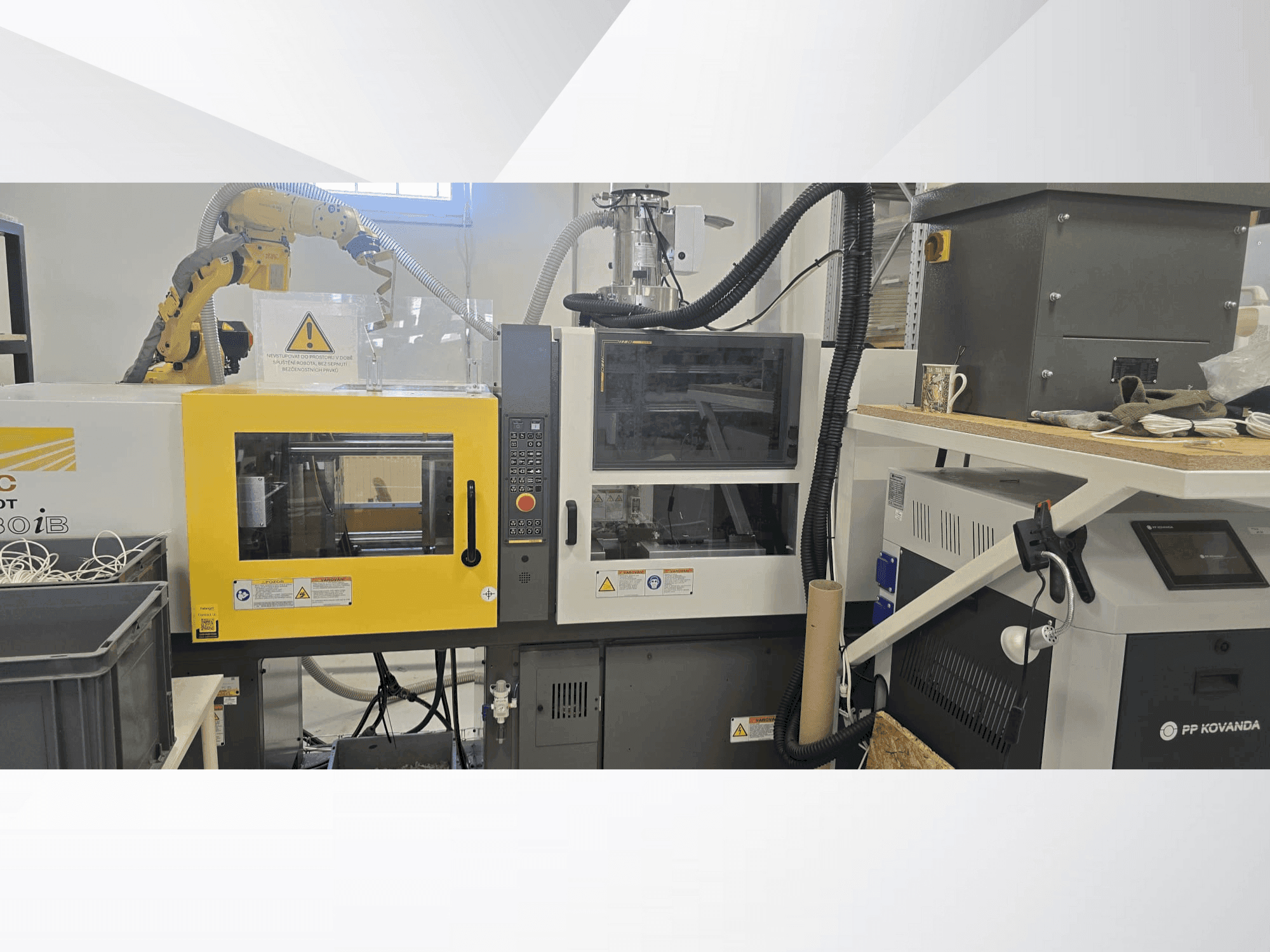

This FANUC Roboshot alpha-i30B was manufactured in 2023. It features a clamping force of 300 KN, a screw diameter of 22 mm, and a maximum injection speed of 600 mm/s. Ideal for precision in electrical injection moulding, it offers a compact platen size of 440x420 mm and efficient energy consumption. If you are looking to get high-quality moulding capabilities, consider the FANUC Roboshot alpha-i30B machine we have for sale. Contact us for more information.
Overview
- brand: FANUC
- year: 2022
- MODEL: Roboshot alpha-i30B
- application type: Injection Moulding
- Location: Czech Republic
- machine type: Electrical Injection Moulding Machine
- control unit brand: FANUC
Technical Information - FANUC Roboshot alpha-i30B
Control Unit
- Control Brand: FANUC
Dimensions
- Machine Weight: 2000 kg
Technical Specification
- Clamping Force: 300 kN
- Screw Diameter: 22 mm
Additional Information
Machine Benefits
Qualitative Machine Benefits
The machine has an estimated 100000 cycles and was only used for prototype production of tpe.
Technical Machine Benefits
Max. Injection volume: 29 cm³
Injection stroke: 75 mm
Max. Injection speed: 600 mm/s
Max. Injection rate: 228 cm³/s
Number of heater zones (barrel): 3
Number of pyrometers (nozzle): 1
Total heater wattage: 3. 8 kw
Extra Information
Machine still under power / Fl net option for Fanuc Robot/ Ethernet IP option for Fanuc Robot/ Fanuc Robot control integration into Roboshot
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
