➤ Used Feeler FTC 20 For Sale | gindumac.com

Show in original language

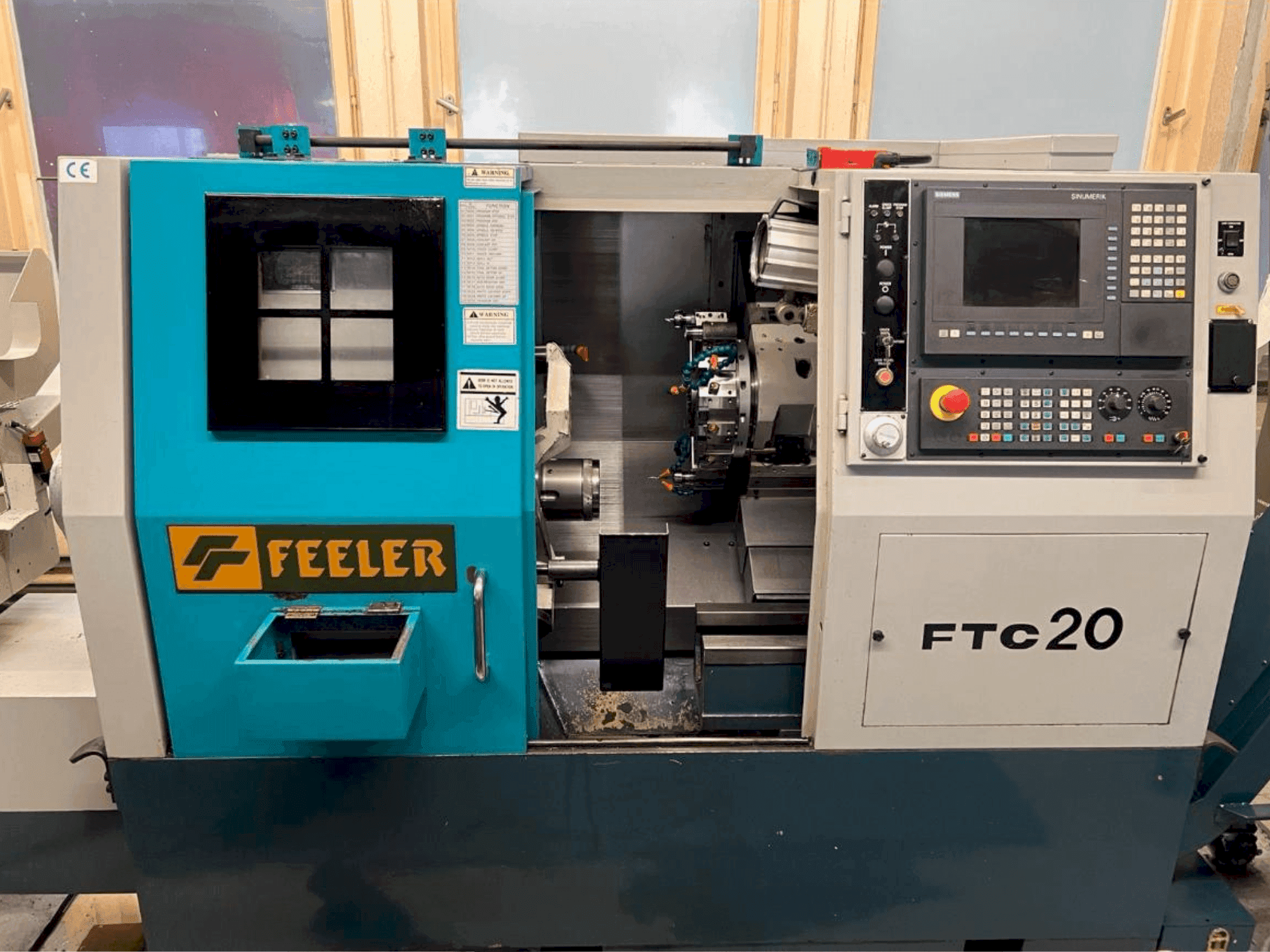

This Feeler FTC 20 was manufactured in 1999. It features a swing over bed of 560 mm and a maximum turning diameter of 350 mm. The spindle operates at speeds up to 3500 rpm, supported by a robust 15 kW motor. Ideal for precision turning with its 8 tool stations and manual tailstock. Consider the opportunity to buy this Feeler FTC 20 horizontal turning machine. Contact us for more information about this machine.

Overview

brand: Feeler
year: 1999
MODEL: FTC 20
application type: Turning
Location: Romania
machine type: Horizontal Turning Machine

Technical Information - Feeler FTC 20

General Data

Measurements width: 1535 mm
Measurements depth: 2630 mm
Measurements height: 1800 mm
Machine weight: 3550 kg

Main drive

Spindle speed range: 35–3500 1/MIN
Spindle motor power: 11 / 15 kW

Movement

X-AXIS Movement: 175 + 25 mm
X-AXIS Rapid traverse: 24000 mm/min
Z-AXIS Movement: 380 mm
Z-AXIS Rapid traverse: 24000 mm/min

Workpiece

Workpiece drm over bed: 560 mm
Workpiece drm over support: 350 mm

Additional Information

Chuck diameter: 210 mm
Bar capacity: Ø52 mm
Maximum turning length: 380 mm
Maximum turning diameter: Ø350 mm
Spindle nose: a2-6
Hole through spindle: 62 mm
Spindle bore taper: 1:20

Turret Number of tool stations: 8 sets
Tool size (square): 25 mm
Inside diameter of boring bar holder: Ø40 mm
Turret indexing time: 0.13 sec
Tailstock travel type: Manual
Tailstock travel: 300 mm
Quill travel type: Hydraulic
Quill travel: 80 mm
Quill diameter: 65 mm
Quill taper: MT #4

Machine comes with bar feeder.

Additional equipment

Coolant tank capacity: 100 L

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
