Feeler - QM-22ATR-MIL-FEE-2006-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Feeler QM-22A Machining Center

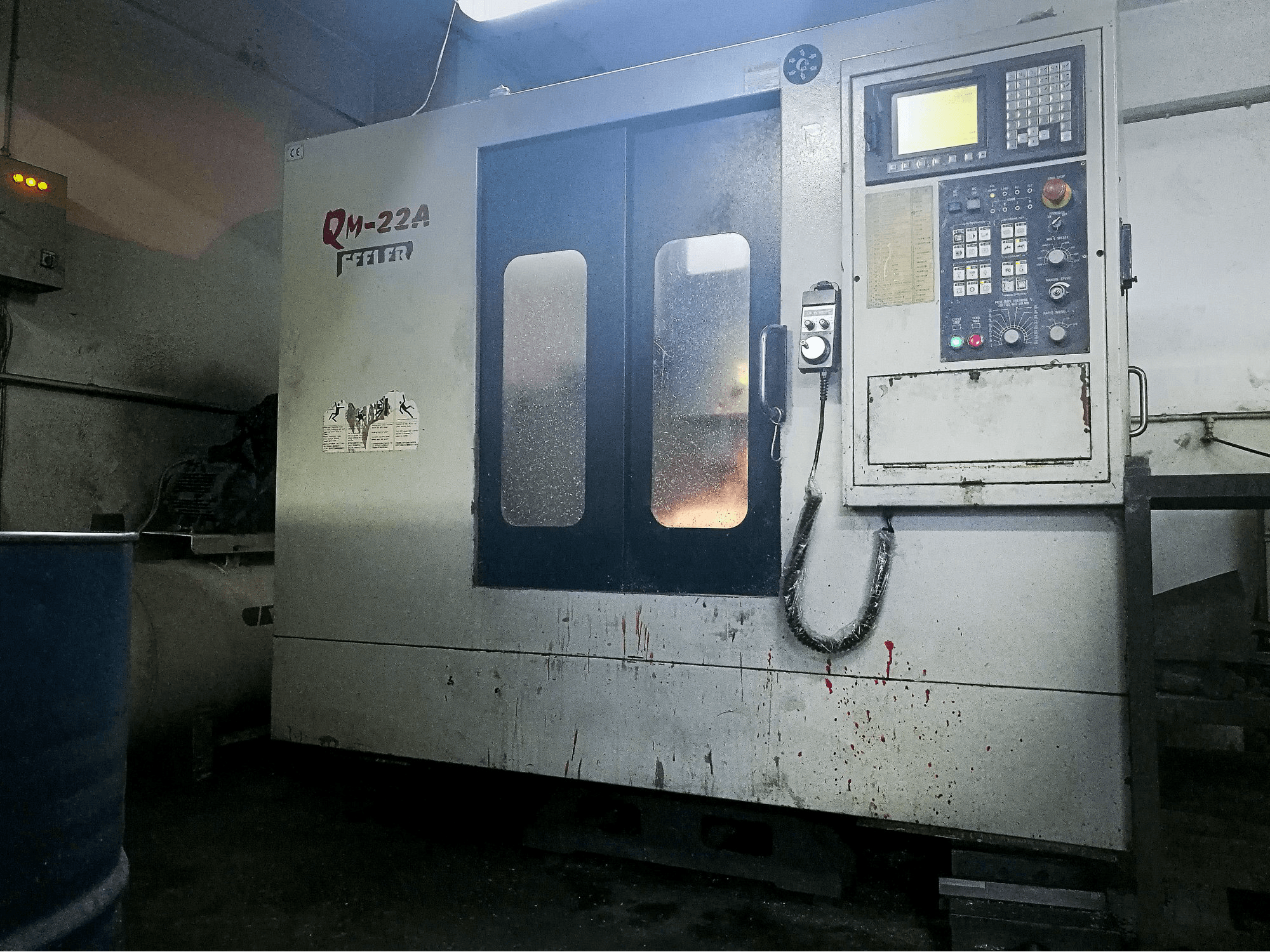

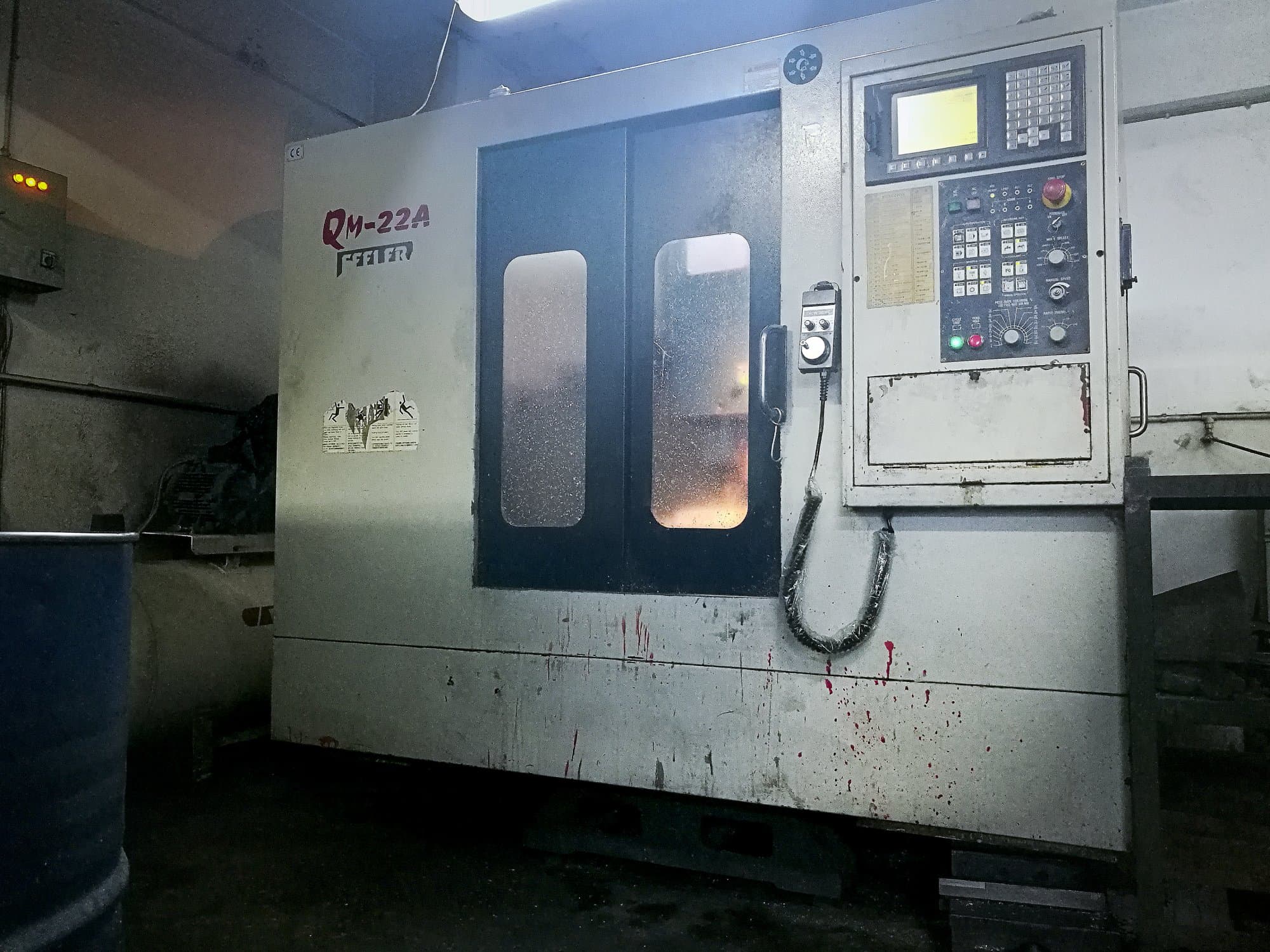

This Feeler QM-22A Machining Center from 2006 is operated through a FANUC 0i-MC Control unit and comes with a spacious table of 1100 x 600 millimeters (L x W). The equipment stands out for its 20x tool changer, which allows a quicker operation and a reduction of non-productive time, as well as for its high spindle speed (measurable in 10000 rounds per minute).
Overview
- brand: Feeler
- year: 2006
- MODEL: QM-22A
- application type: Milling
- Location: Turkey
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - Feeler QM-22A
Control Unit
- Control Brand: FANUC
- Control Model: 0i-MC
Dimensions
- Machine Depth: 3875 mm
- Machine Height: 3140 mm
- Machine Weight: 3000 kg
- Table Length: 1100 mm
- Table Width: 600 mm
Movement
- X-axis Travel: 1020 mm
- Y-axis Travel: 600 mm
- Z-axis Travel: 550 mm
Technical Specification
- Max. Tool Weight: 7 kg
- Number of Tools: 20
- Spindle Power: 11 kW
- Spindle Speed: 10000 RPM
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
