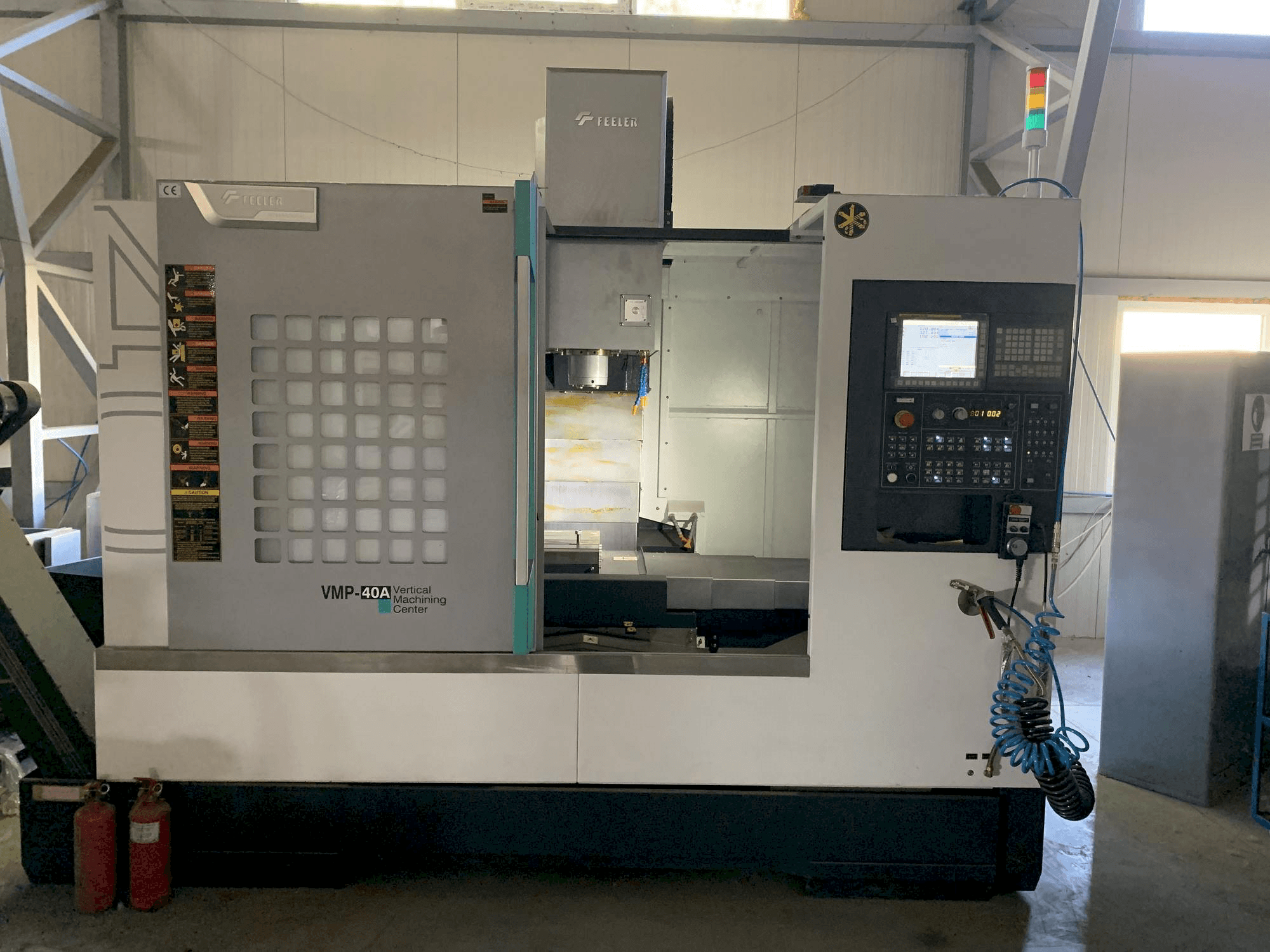

Feeler VMP 40 Vertical Machining center

Show in original language

This Feeler VMP 40 Vertical Machining center was made in 2019 in Taiwan. It is controlled by a FANUC Series Oi-MF control unit and has 3 axis. The machine has a spindle speed of 50 up to 10000 rpm.

Overview

brand: Feeler
year: 2019
MODEL: VMP 40
application type: Milling
Location: Hungary
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - Feeler VMP 40

General Data

Measurements height: 2800 mm
Machine weight: 6300 kg

Control Unit

Model: Series Oi-MF
Brand: FANUC

Main drive

Spindle speed range: 50-10000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1020 mm
Y-AXIS Movement: 520 mm
Z-AXIS Movement: 505 mm

Table

Outer length: 520 mm
Outer width: 1150 mm

Media

Main electronic connection: 220 V / 50 Hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance between spindle centre and column: 560 mm
- - Distance between table and ground: 940 mm
- - Spindle to table distance: 80-585 mm
- - Max. Load capacity: 800 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
