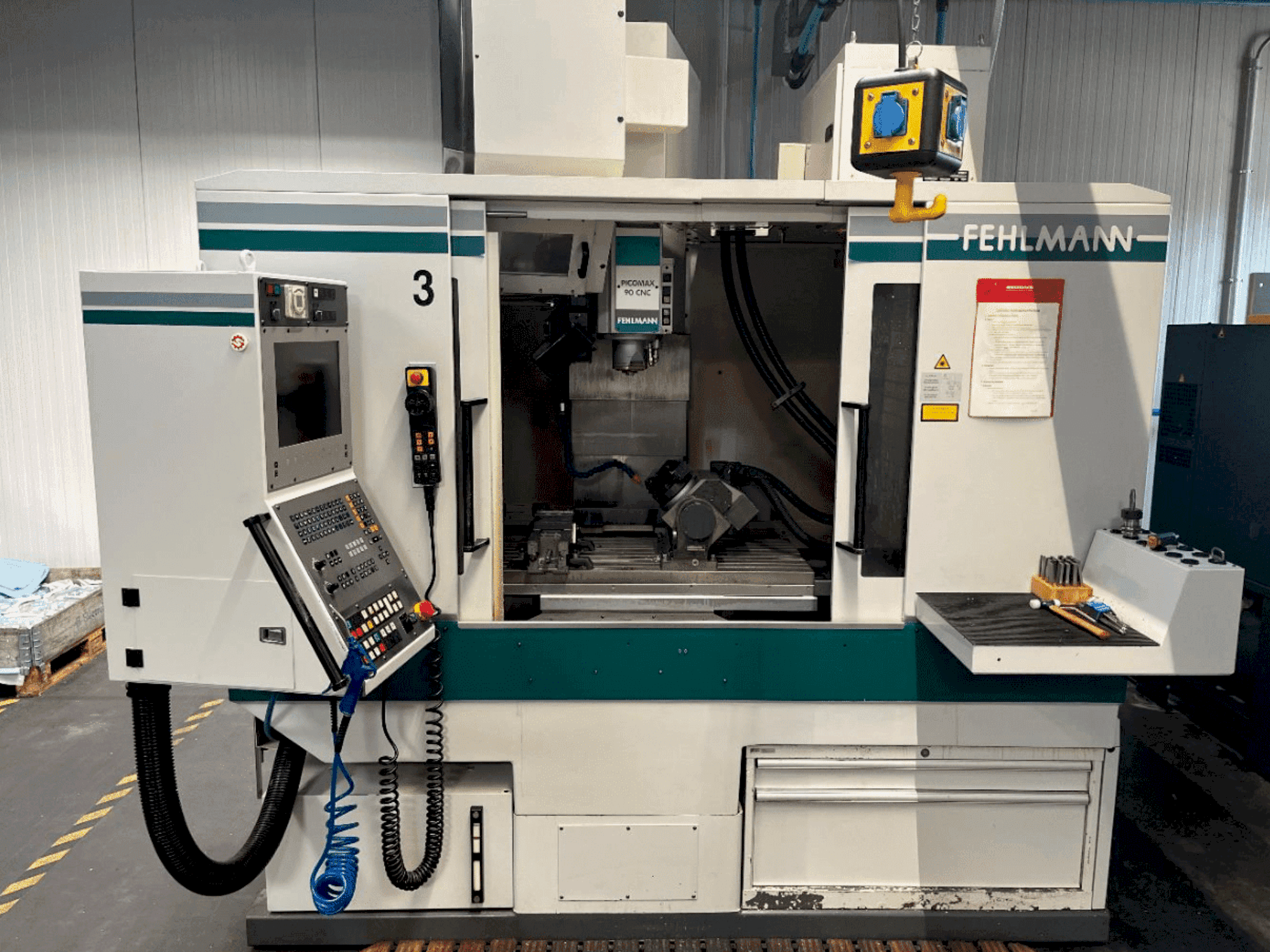

This 3-axis FEHLMANN Picomax 90-M vertical machining centre was manufactured in 2002. It features a spindle speed range from 50 to 18,000 rpm, a table size of 920x380 mm, and a maximum workpiece weight of 250 kg. The machine includes a 4th and 5th axis dividing head, coolant device, and a RENISHAW measuring probe. Ideal for detailed and precise machining tasks. For more information about this vertical machining centre, please reach out to us.
Overview
- brand: FEHLMANN
- year: 2002
- MODEL: Picomax 90-M
- production hours: 23100
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- availability: Immediately
Technical Information - FEHLMANN Picomax 90-M
General Data
- Measurements width: 1700 mm
- Measurements depth: 2200 mm
- Measurements height: 3000 mm
- Machine weight: 3200 kg
Main drive
- Number of spindles: 1
- Spindle speed range: 18000 rpm 1/MIN
- Spindle motor power: 6.3 kW
- Tool taper: SK 30
- Number of axis: 3
Movement
- X-AXIS Movement: 500 mm
- Y-AXIS Movement: 350 mm
- Z-AXIS Movement: 610 mm
Workpiece
- Workpiece weight: 250 kg
Table
- Outer length: 920 mm
- Outer width: 380 mm
- Min distance between vertical spindle and table: 94 mm
- Max distance between vertical spindle and table: 704 mm
Media
- Internal cooling: Yes
Additional Information
- Technical Machine Benefits:
- - Comprehensive feed rates for x, y, and z axes (1 - 20,000 mm/min)
- - Direct measuring system for x and y axes
- - Drilling capacity in steel: 25 mm
- - Thread cutting in steel: m 24
- - Milling capacity: 100 cm³/min
- - Connection: 50 hz 3x 400 volt
- - Total power requirement: 20 kw
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
