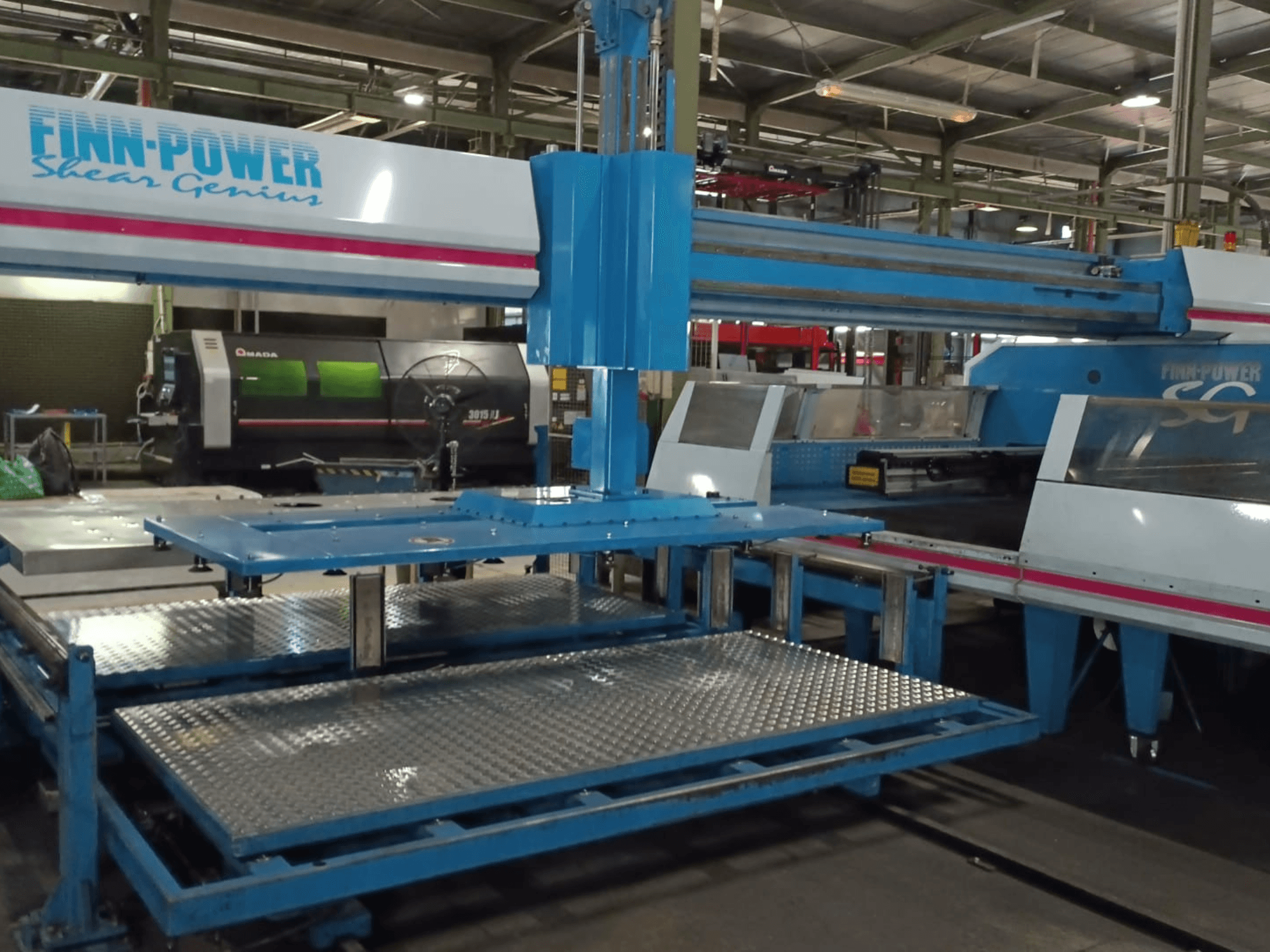

Finn-Power - SG6 Shear Genius IT-PUN-FIN-2000-00001

• Max. punch diameter: 89 mm

• Max. sheet thickness (punching): 5 mm

• Punching area: 1500 × 2500 mm (with repositioning: 1500 × 3000 mm)

• Max. usable area: 1500 × 3000 mm

• Tool turret: 20 stations

  • AutoIndex stations: 2 × B, 1 × C, 1 × D

  • Fixed stations: 8 × B, 2 × C, 1 × D (Forming)

  • Multitools: 5

• Automatic bidirectional turret rotation: Yes

• Automatic CNC tool change: Yes

• Shear cutting length: 1500 mm

• Max. steel thickness (shearing): 5 mm

• Anti-burr system: Yes

• Shear actuation: Hydraulic

• Working pressure: 120–160 bar

• Hydraulic oil tank: 330 l

• Electrical connection power: 80 kVA

• Average power consumption: Approx. 30 kW

• Working hours: 52,530 h

• Connected to power: Yes

• Fully operational: Yes

• Technical documentation/data: Available

• Reason for sale: Replaced by laser with storage; current production needs and floor space optimization

Additional equipment

• Automatic loading system: LD 3000/2+2W (Year 2000)

  • Max. sheet length: 3000 mm

  • Automatic sheet alignment: Yes

  • Servo-controlled movement: Yes

• Stacking system: STS 2/3000 (Year 2000)

  • Max. stacking load: 1000 kg

  • Stacking areas: 2 × (3000 × 1500 mm)

• Unloading system: 4 independent CNC-controlled traps

• Automatic scrap separation: Yes

• Included tooling: Punches and dies (final tooling list to be confirmed)

• Spare parts included: Some spare parts for consumable components
