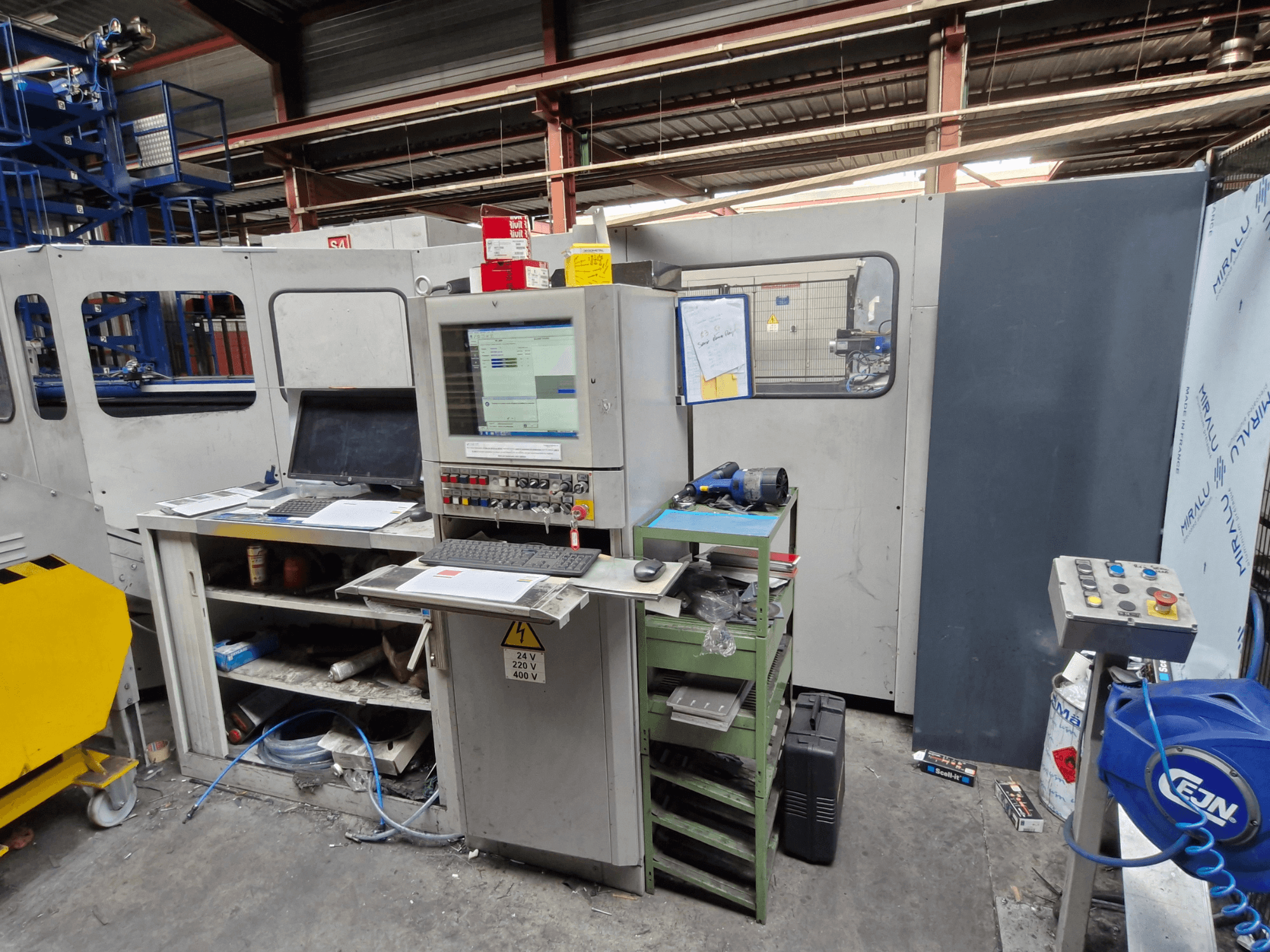

CNC punching machine manufactured in 2001. This Salvagnini S4-40 features a maximum sheet size of 4064 x 1524 mm and can process materials up to 5 mm thick, including mild steel and aluminum. It includes a versatile H-type punching head with multiple stations for efficient operation. If you are looking to get high-quality punching capabilities, consider the Salvagnini S4-40 machine we have for sale. Contact us for further details.
Overview
- brand: Salvagnini
- year: 2001
- MODEL: S4-40
- application type: Punching
- Location: France
- machine type: CNC Punching Machine
- control unit brand:
Technical Information - Salvagnini S4-40
Technical Specification
- Max. Sheet Thickness: 5 mm
- Punching Force: 120 Kn
Additional Information
Punching head: H-type
40 stations – 70 kN
4 stations – 120 kN
2 rotating stations – 120 kN
2 lower embossing stations (tonnage to be confirmed)
Sheet capacity:
Maximum sheet size: 4064 x 1524 mm
Minimum finished part size: 250 x 80 mm
Material thickness capacity:
Mild steel (410 N/mm²): 3.5 mm
High strength steel (600 N/mm²): 2.0 mm
Aluminium (260 N/mm²): 5.0 mm
Stainless steel: 3.5 mm
Processable material strength:
600 N/mm² at 2 mm thickness
410 N/mm² at 3.5 mm thickness
260 N/mm² at 5 mm thickness
Electrical data:
Voltage: 400 V
Frequency: 50 Hz
Installed power: 79 kVA
Nominal current: 114 A
Compressed air: 6–12 bar required pressure
Nominal punching force: approx. 300 kN / 30 tons (to be confirmed; exact official records/nameplate data not available)
Recorded hours: 53,019 h (2025 service report)
Additional equipment
Loader magazine: MD4015
