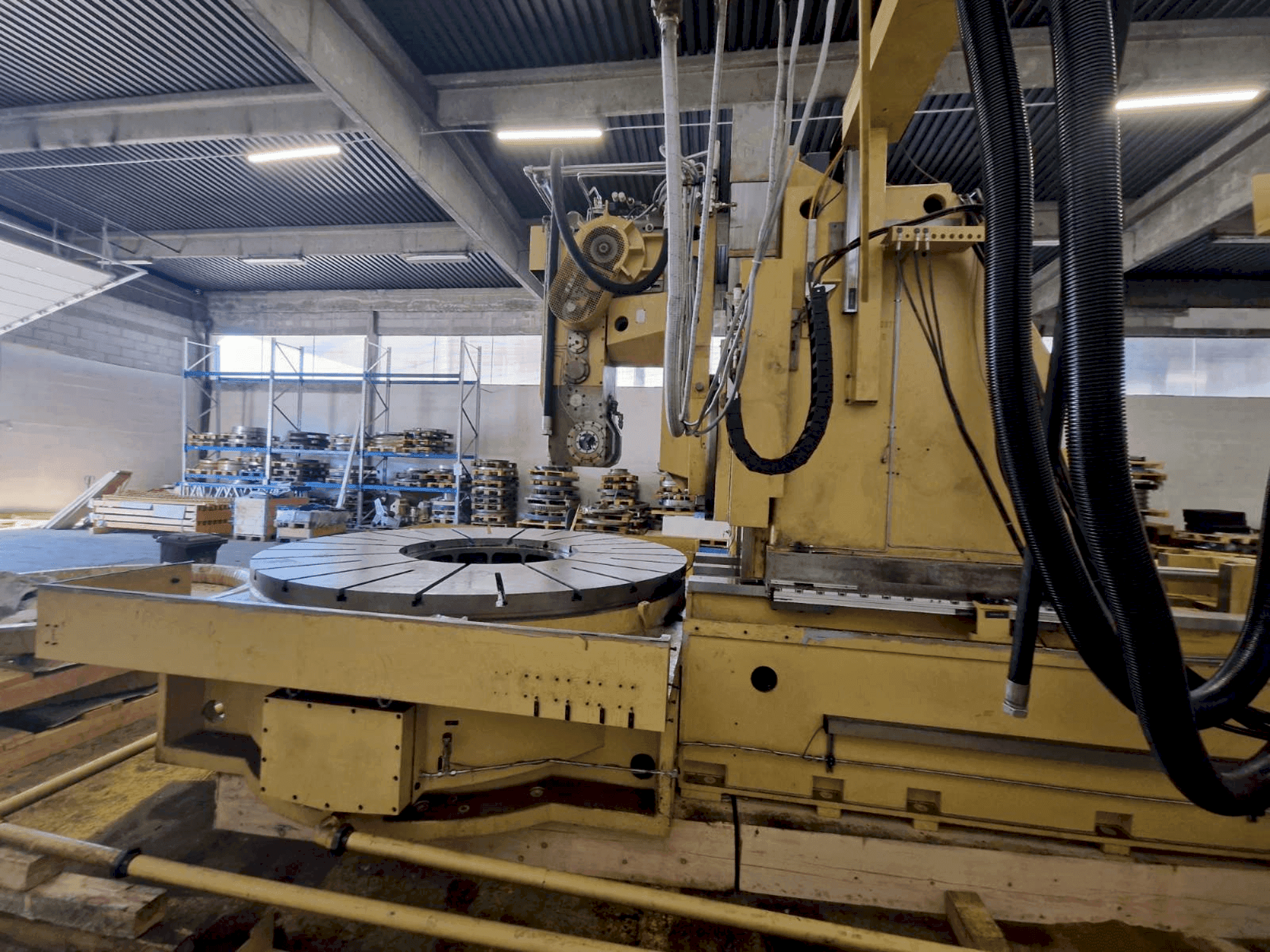

Gleason PFAUTER P 2800

Photo Gallery

Gleason PFAUTER - P 2800SI-MIL-GLE-2007-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Gleason PFAUTER P 2800 For Sale | gindumac.com

Show in original language

This 5-axis CNC milling machine manufactured in 2007 features a Siemens SINUMERIK 840 D controller with electronic gear and integrated safety functions. It can handle workpieces up to 2800 mm in diameter and offers motorized milling heads with a swivel range of +30/-45 degrees. Ideal for both internal and external gears, consider the opportunity to buy this Gleason Pfauter P 2800 CNC milling machine. Contact us for more information about this machine.

Overview

brand: Gleason PFAUTER
year: 2007
MODEL: P 2800
application type: Other Machine Tools
Location: Slovenia
machine type: Machine Tool
control unit brand: SIEMENS

Technical Information - Gleason PFAUTER P 2800

Control Unit

Control Brand: SIEMENS
Control Model: SIEMENS 840D

Additional Information

Additional equipment

Siemens Path Control SINUMERIK 840 D, featuring 5 axes, 1 spindle, electronic gear, and integrated safety functions
Motorized Milling Heads for internal and external gears with a swivel range of +30 / -45 degrees
External Gears: Min. Diameter: 950 mm / Max. Diameter: 2800 mm
Cutter Arbor Cone: HSK-B160 (Hollow Shank Taper According to DIN 69063)

Machine Benefits

Technical Machine Benefits

Nominal workpiece diameter: 2800 mm
Table diameter: 2500 mm / pitch wheel diameter: 2200 mm / table bore diameter: 800 mm / table bore depth: 875 mm
Smallest/largest distance between milling cutter and workpiece axis: 600 mm / 1735 mm / largest axial slide path: 1000 mm /largest milling cutter displacement path: 300 mm
Min. /max. Wheelbase for internal gears: 280 mm / 1820 mm / min. Workpiece inner diameter: approx. 1000 mm for internal gears / max. Workpiece ring thickness: 240 mm for internal gears / max. Workpiece width for internal gears: 470 mm
Largest champable hob diameter: 350 mm / largest champable hob length: 375 mm
Machine nominal module - hobbing: approx. 20 mm gear / machine nominal module - milling: approx. 30 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
