➤ Used GWEIKE LF3015GA For Sale | gindumac.com

Show in original language

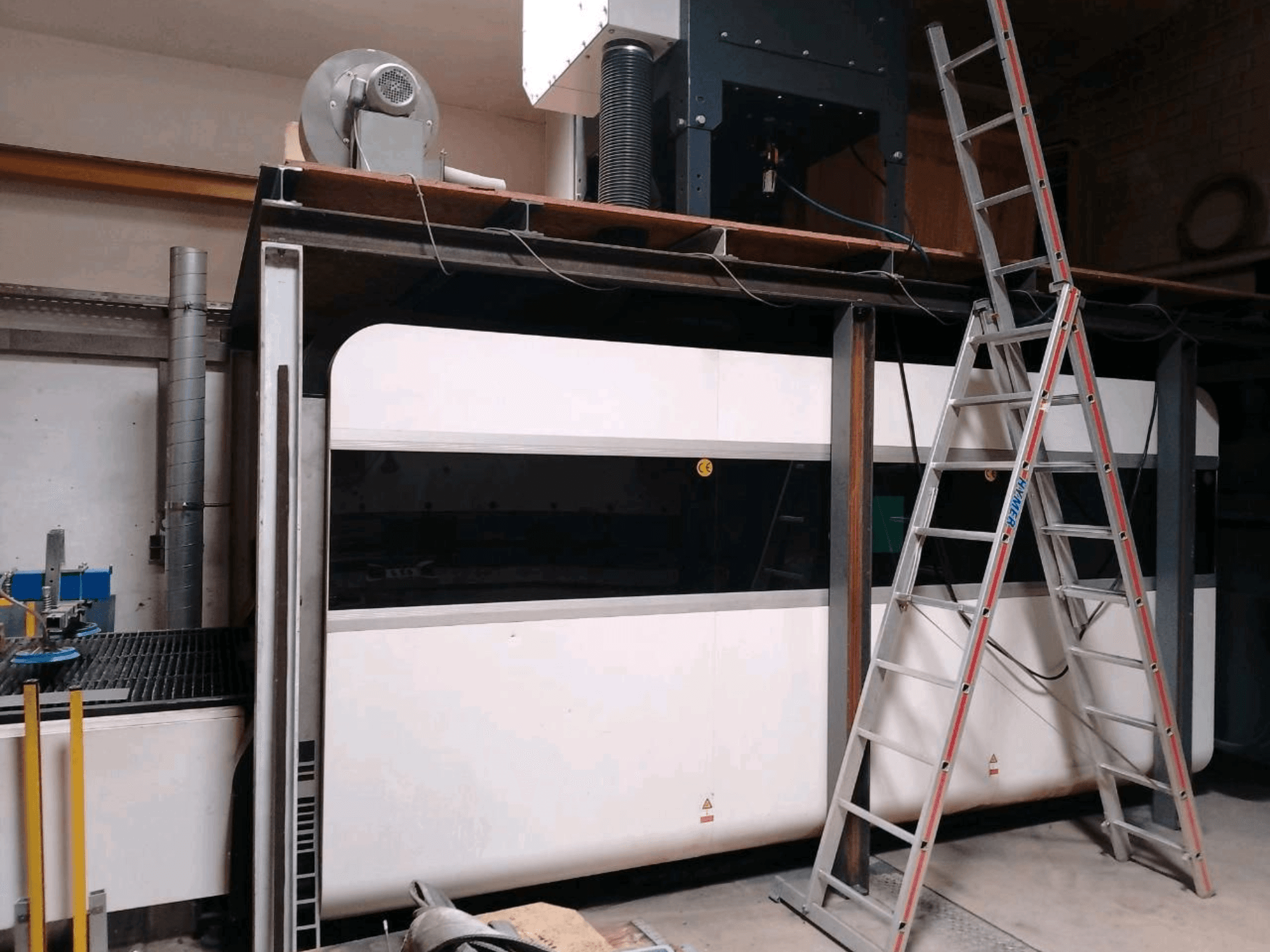

This 3-axis GWEIKE LF3015GA was manufactured in 2019. It features a powerful 3000 W laser and a generous working area of 3000 x 1500 mm, capable of cutting up to 20 mm steel and 12 mm stainless steel. The machine includes a robust exchange table and has a maximum moving speed of 120 m/min. If you are looking to get high-quality cutting capabilities, consider the GWEIKE LF3015GA fiber laser cutting machine we have for sale. Contact us for further details.

Overview

brand: GWEIKE
year: 2019
MODEL: LF3015GA
production hours: 3000
application type: Cutting
Location: Germany
machine type: Fiber Laser Cutting Machine

Technical Information - GWEIKE LF3015GA

Dimensions

Machine Height: 2125 mm
Machine Length: 8150 mm
Machine Weight: 6600 kg
Machine Width: 2825 mm
Table Length: 3000 mm
Table Load: 900 kg
Table Width: 1500 mm

Movement

Number of Axes: 3
X-axis Travel: 1500 mm
Y-axis Travel: 3000 mm
Z-axis Travel: 290 mm

Technical Specification

Cutting Speed: 120 m/min
Laser Power: 3 kW

Additional Information

- Laser Power: 3000 W (3 kW)

- Working Hours: Approx. 3,000 hours

- Cutting Capacity: Up to 20 mm steel, up to 12 mm stainless steel, aluminum possible

- Exchange Table Working Area: 3000 * 1500 mm

- Working Area for Metal Sheet: 3000 * 1500 mm

- X/Y Axis Position Accuracy: ±0.01 mm

- X/Y Axis Reposition Accuracy: ±0.02 mm

- Max. Moving Speed: 120 m/min

- Maximum Acceleration: 1.5G

- Max. Working Capacity of Sheet Table: 900 kg

- Transmission: Rack and gear

- Power Requirement: AC 380V ±10% 50Hz / 60A

- Suggested Space for Machine: 8 m * 3 m

- Gas Requirements: O2 (2 MPa, Purity 99.9%), N2 (6 MPa, Purity 99.9%)

- Best Working Temperature: 10-35°C

- Included Equipment / Scope of Delivery: Laser cabin (Whole Protect Cover, Double Exchange platform), CYPCUT Laser Software including remote control, Control cabinet, Cooling/Chiller unit, Extraction/Filter system, Rectifier, Vacuum lifter / Pallet crane attached to structure

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
