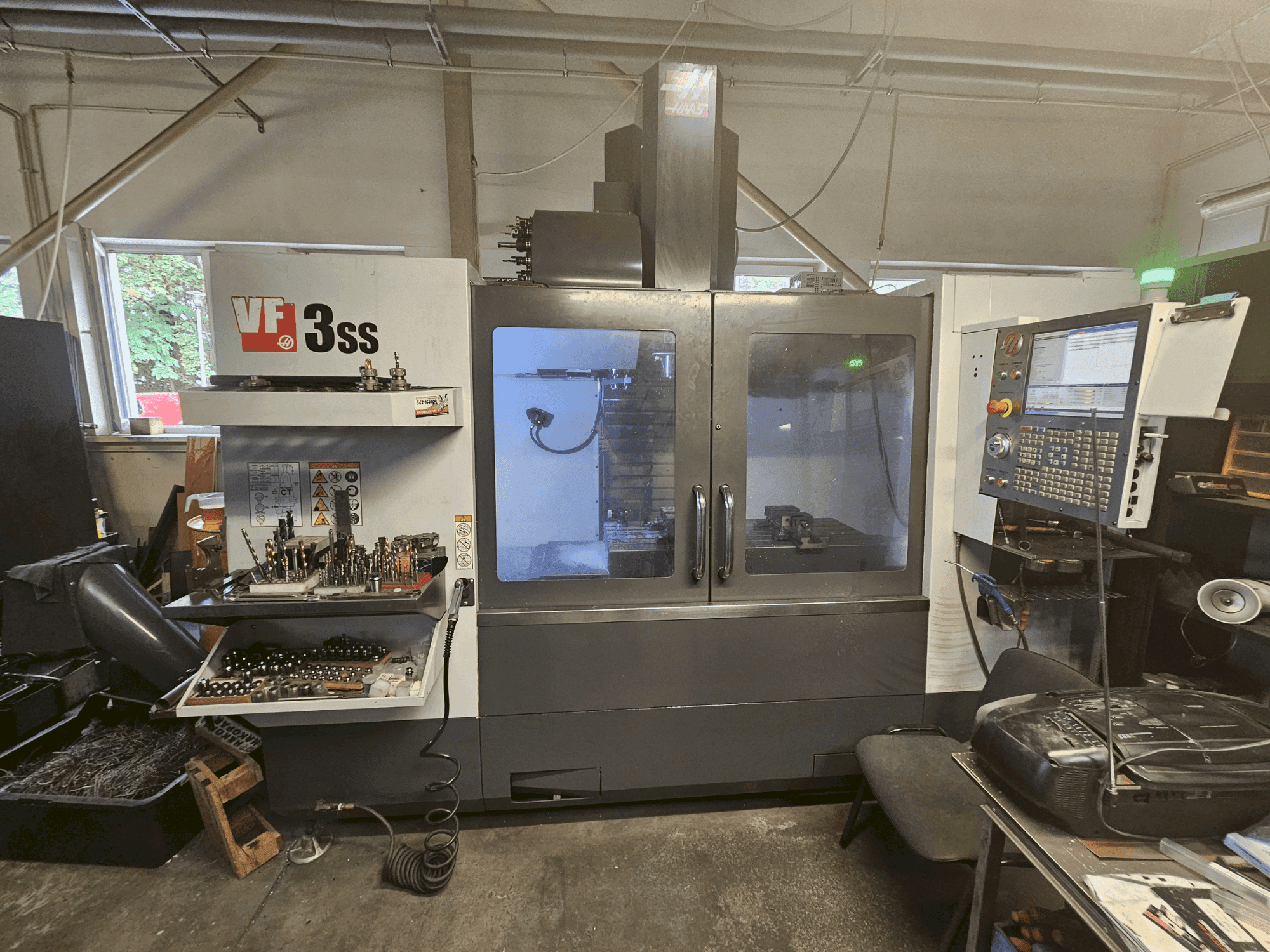

This 3-axis HAAS VF-3SS vertical machining center was manufactured in 2017. It features a 1016 mm X-axis travel, 508 mm Y-axis travel, and 635 mm Z-axis travel. The table supports up to 794 kg, with dimensions of 1219 mm by 457 mm. It includes 24 tool pockets and achieves a maximum spindle speed of 12,000 RPM. Consider the opportunity to buy this HAAS VF-3SS vertical machining center. Contact us for more information about this machine.

Overview

brand: HAAS
year: 2017
MODEL: HAAS VF-3SS
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
control unit brand: HAAS

Technical Information - HAAS HAAS VF-3SS

General Data

Measurements width: 2794 mm
Measurements depth: 2235 mm
Measurements height: 2692 mm
Machine weight: 5670 kg

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 12000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1016 mm
Y-AXIS Movement: 508 mm
Z-AXIS Movement: 635 mm

Workpiece

Workpiece weight: 794 kg

Tools

Max weight: 5.4 kg
Max tool diameter: 76 mm
Max tool length: 330 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Table size: 1219 mm (length) x 457 mm (width)
- - Number of tool pockets: 24
- - Max tool diameter (side positions empty): 127 mm
- - Max spindle torque: 122 nm
- - Power supply: 3x400v, 50 hz

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
