- ➤ Used HAAS VF-4 Machining Center For Sale | gindumac.com

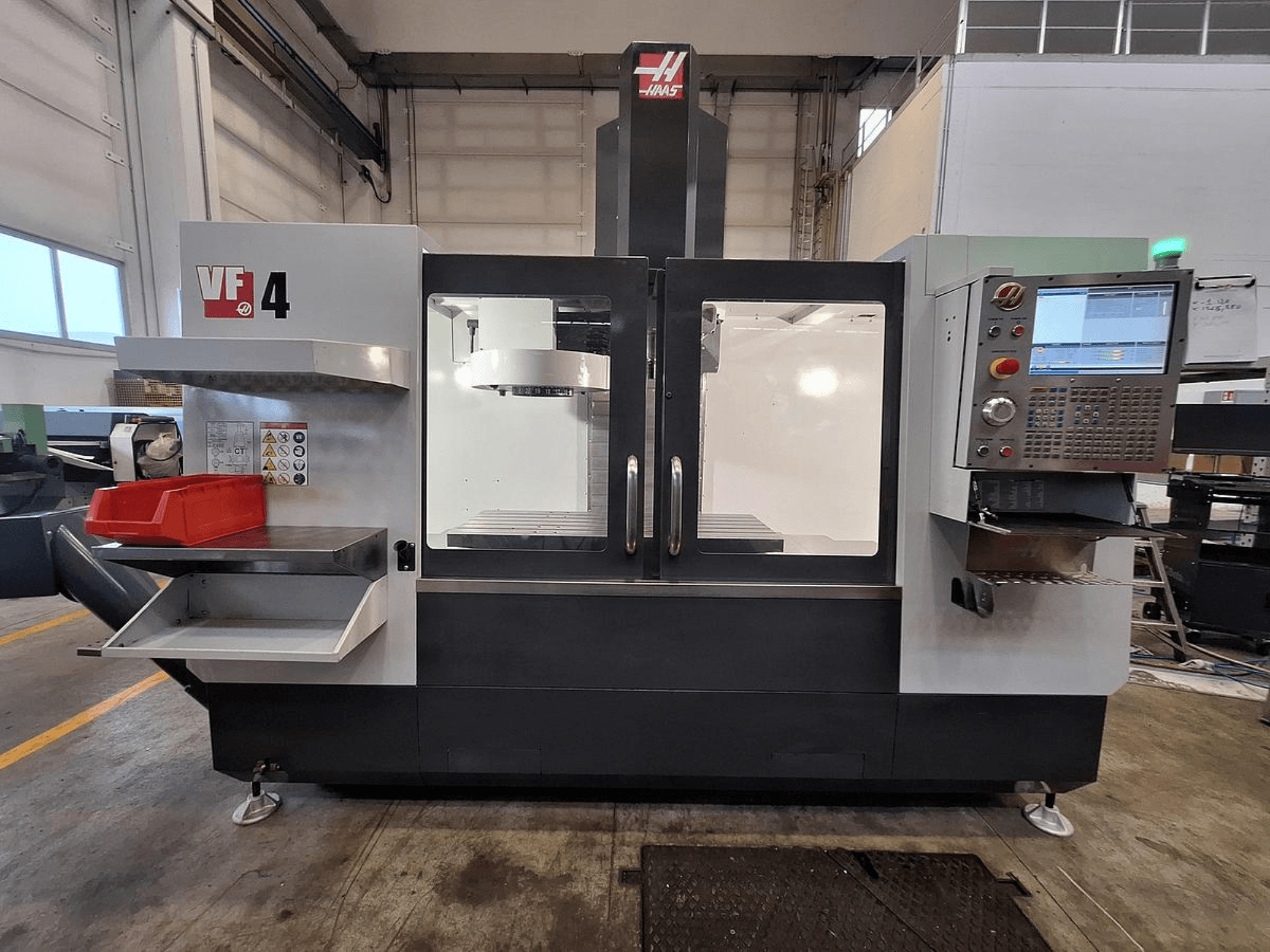

This 3-axis HAAS VF-4 was manufactured in 2017. It features an X-axis travel of 1270 mm, Y-axis travel of 508 mm, and Z-axis travel of 635 mm. The machine is equipped with a maximum spindle speed of 8,100 RPM and a robust table size of 1321 mm x 495 mm, supporting a maximum weight of 794 kg. If you are looking to get high-quality machining capabilities, consider the HAAS VF-4 vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: HAAS
- year: 2017
- MODEL: VF-4
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
- control unit brand:
Technical Information - HAAS VF-4
Movement
- Number of Axes: 3
- X-axis Travel: 1270 mm
- Y-axis Travel: 508 mm
- Z-axis Travel: 635 mm
Technical Specification
- Spindle Power: 22.4 kW
- Spindle Speed: 8100 RPM
Additional Information
Spindle taper: CT 40
Max torque: 122.0 Nm @ 2000 rpm
Table dimensions: 1321 x 495 mm
Max weight on table: 794 kg
Tool changer: 20 positions (umbrella type)
Rapid feedrate (X/Y/Z): 25.4 m/min
Table to spindle nose (min/max): 107 / 742 mm
T-slots: 5 slots, 16 mm width, 80 mm pitch
Power-on time: 18673:41:20
Cycle start time: 3974:33:16
Feed cutting time: 2117:17:34
Included machine options/features: 15" color monitor, rigid tapping, USB port
Additional equipment
Programmable coolant nozzle
Auger-type chip conveyor
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
