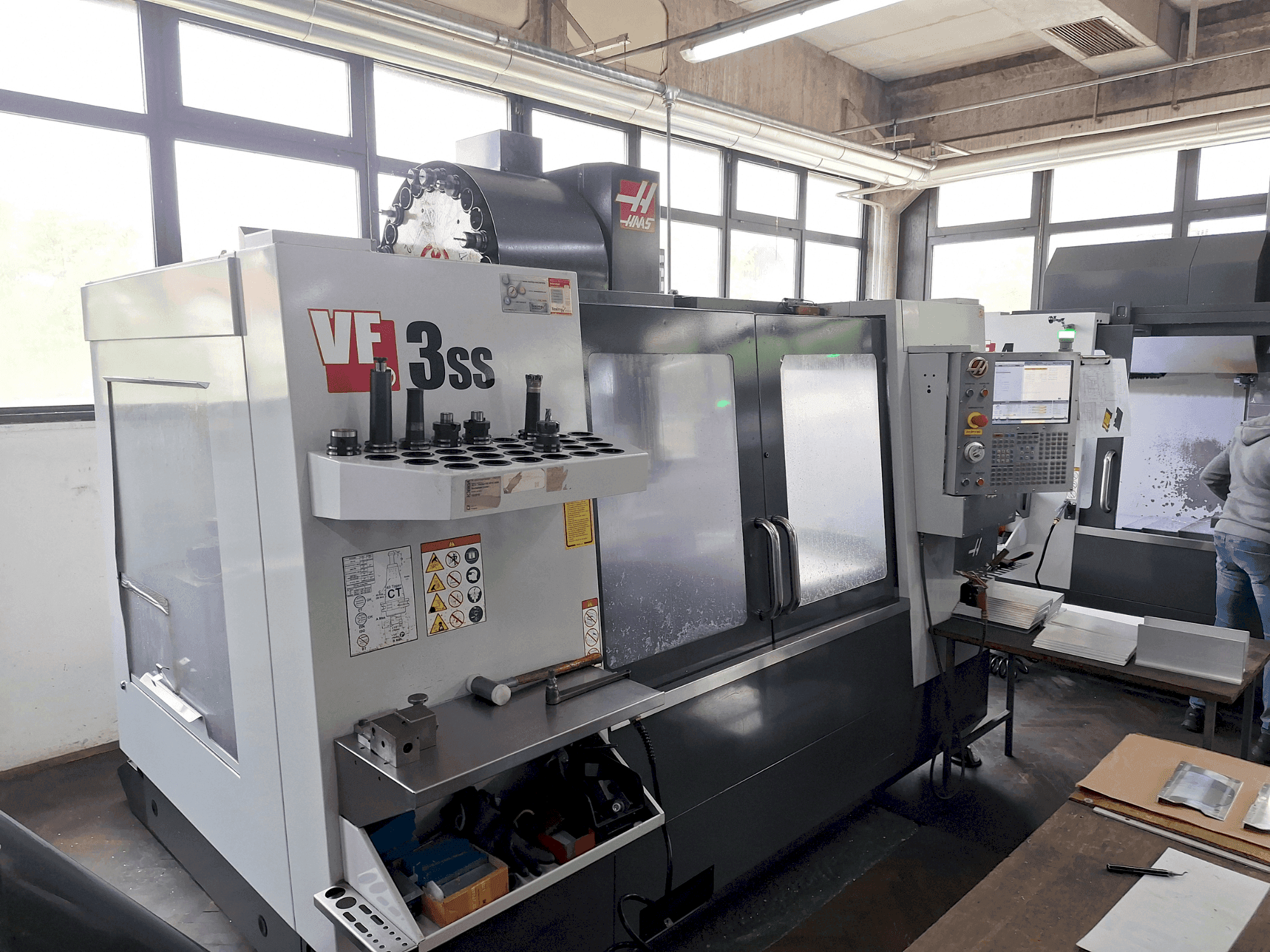

This 3-axis HAAS VF3 SS Machining Center was manufactured in 2017. It features a robust 1219 mm x 457 mm table, capable of handling up to 794 kg. Equipped with a high-speed spindle reaching 12000 rpm and a 30+1 side-mount tool changer for efficient operation. Ideal for precision tasks with rapid movements up to 35.6 m/min on all axes. A great opportunity to buy this HAAS VF3 SS Machining Center. For more information about this Machining Center, please reach out to us.
Overview
- brand: HAAS
- year: 2017
- MODEL: VF3 SS
- application type: Milling
- Location: Slovenia
- machine type: Machining centers (vertical)
- availability: Immediately
Technical Information - HAAS VF3 SS
Main drive
- Spindle speed range: 12000 rpm 1/MIN
- Spindle motor power: 22.4 kW
- Tool taper: SK 40
- Number of axis: 3
Movement
- X-AXIS Movement: 1016 MM
- Y-AXIS Movement: 508 MM
- Z-AXIS Movement: 635 MM
Additional Equipment
- - number of tools: 30+1
- - Air Requirements: 113 L/min @ 6.9 bar, Inline Air Hose: 3/8 in, Coupler (Air): 3/8 in, Air Pressure Min: 5.5 bar.
Additional Information
- Technical Machine Benefits:
- - Max cutting feedrate: 21. 2 m/min
- - Rapids on x, y, z: 35. 6 m/min
- - Max thrust (x, y, z): 13723 n, 13723 n, 17450 n
- - Tool-to-tool (avg): 1. 80 s
- - Chip-to-chip (avg): 2. 40 s
- Qualitative Machine Benefits:
- - Bearing lubrication: air / oil injection
- - Cooling: liquid cooled
- - Table Dimensions: Length: 1219 mm, Width: 457 mm, T-Slot Width: 15.90 mm to 16.00 mm, T-Slot Center Distance: 80 mm, Number of Std T-Slots: 5, Max Weight on Table: 794 kg // Electrical Specification: Input AC Voltage (3 Phase) - Low: 220 VAC, Full Load Amps (3 Phase) - Low: 70 A, Input AC Voltage (3 Phase) - High: 440 VAC, Full Load Amps (3 Phase) - High: 35 A // Shipping Dimensions and Weights:Domestic Pallet: 387 cm x 251 cm x 269 cm, 5316.0 kg // Export Pallet: 333 cm x 233 cm x 257 cm, 5316.0 kg // Domestic Pallet w/Conveyor: 387 cm x 251 cm x 269 cm, 6260 kg // Export Pallet w/Conveyor: 389 cm x 233 cm x 257 cm, 6260 kg // Domestic Pallet w/50+1 SMTC: 387 cm x 251 cm x 310 cm, 5525 kg // Export Pallet w/50+1 SMTC: 333 cm x 233 cm x 257 cm, 5525 kg // Domestic Pallet w/Conveyor & 50+1 SMTC: 387 cm x 251 cm x 310 cm, 5752 kg //Export Pallet w/Conveyor & 50+1 SMTC: 389 cm x 233 cm x 257 cm, 5752 kg // Domestic Pallet w/70+1 SMTC: 386 cm x 252 cm x 342 cm, 6278.0 kg // Export Crate w/70+1 SMTC: 386 cm x 258 cm x 359 cm, 6278.0 kg
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
