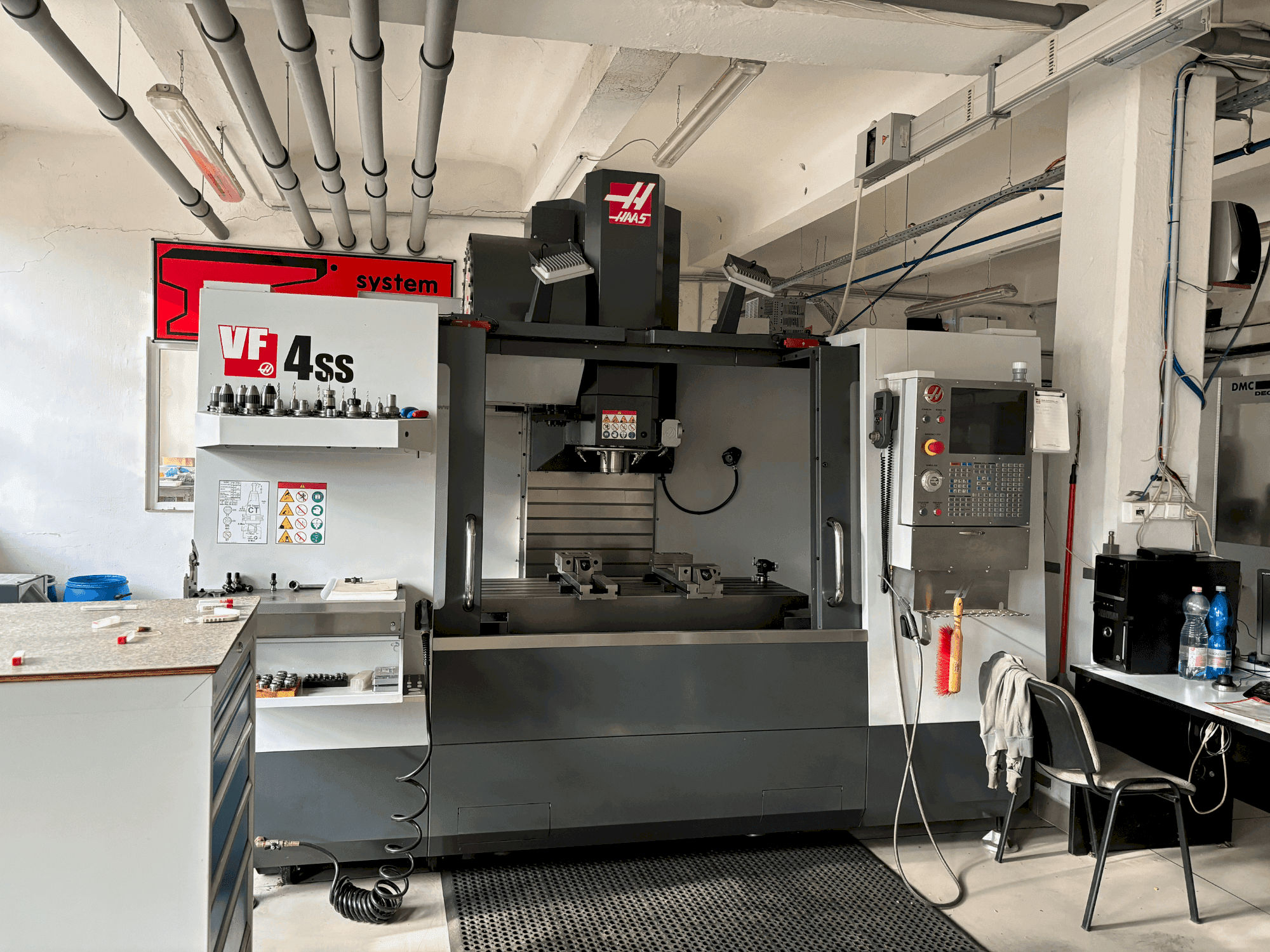

This 3-axis HAAS HASS VS4SS vertical machining centre was manufactured in 2016. It features a robust 30.0 hp spindle, capable of 12000 rpm and a maximum torque of 122.0 Nm. The machine offers a large working range with X-axis at 1270 mm, Y-axis at 508 mm, and Z-axis at 635 mm. If you are looking to get high quality machining capabilities consider the HAAS HASS VS4SS machine we have for sale. Contact us for more information.
Overview
- brand: HAAS
- year: 2016
- MODEL: HASS VS4SS
- application type: Milling
- Location: Hungary
- machine type: Vertical Machining Centre
- control unit brand: HAAS
Technical Information - HAAS HASS VS4SS
Control Unit
- Control Brand: HAAS
Dimensions
- Table Length: 1321 mm
- Table Width: 495 mm
Technical Specification
- Spindle Power: 22.4 kW
- Spindle Speed: 12000 RPM
Additional Information
Additional equipment
- Tool changer type: SMTC
- Tool capacity: 30+1
- Max tool diameter (full): 64 mm / Max tool diameter (adjacent empty): 127 mm / Max tool length (from gage line): 330 mm / Max tool weight: 5.4 kg / Tool change time (avg): 1.80 s / Time between tool changes (avg): 2.40 s
- Coolant capacity: 208 liters
- Options: 4th axis preparation, workpiece probe, tool probe, through-spindle coolant, WIFI, handwheel, electric cabinet cooling
- Domestic pallet with transporter: 387 cm x 260 cm x 277 cm / Weight with transporter: 6260 kg
Machine Benefits
Technical Machine Benefits
- Distance from spindle nose to table (max): 742 mm
- Distance from spindle nose to table (min): 107 mm
- Max weight on the table (evenly distributed): 794 kg
- Table: t-slot width: 15. 90 mm to 16. 00 mm / t-slot center distance: 80 mm /number of standard t-slots: 5
- Max torque: 122 nm at 2000 rpm / drive system: inline direct-drive / taper: ct40 | bt40 | hsk-a63 / bearing lubrication: air/oil injection / cooling: liquid cooled
- Input ac voltage (3-phase) - low: 220 vac / full load amps (3-phase) - low: 70 a / input ac voltage (3-phase) - high: 440 vac / full load amps (3-phase) - high: 35 a
