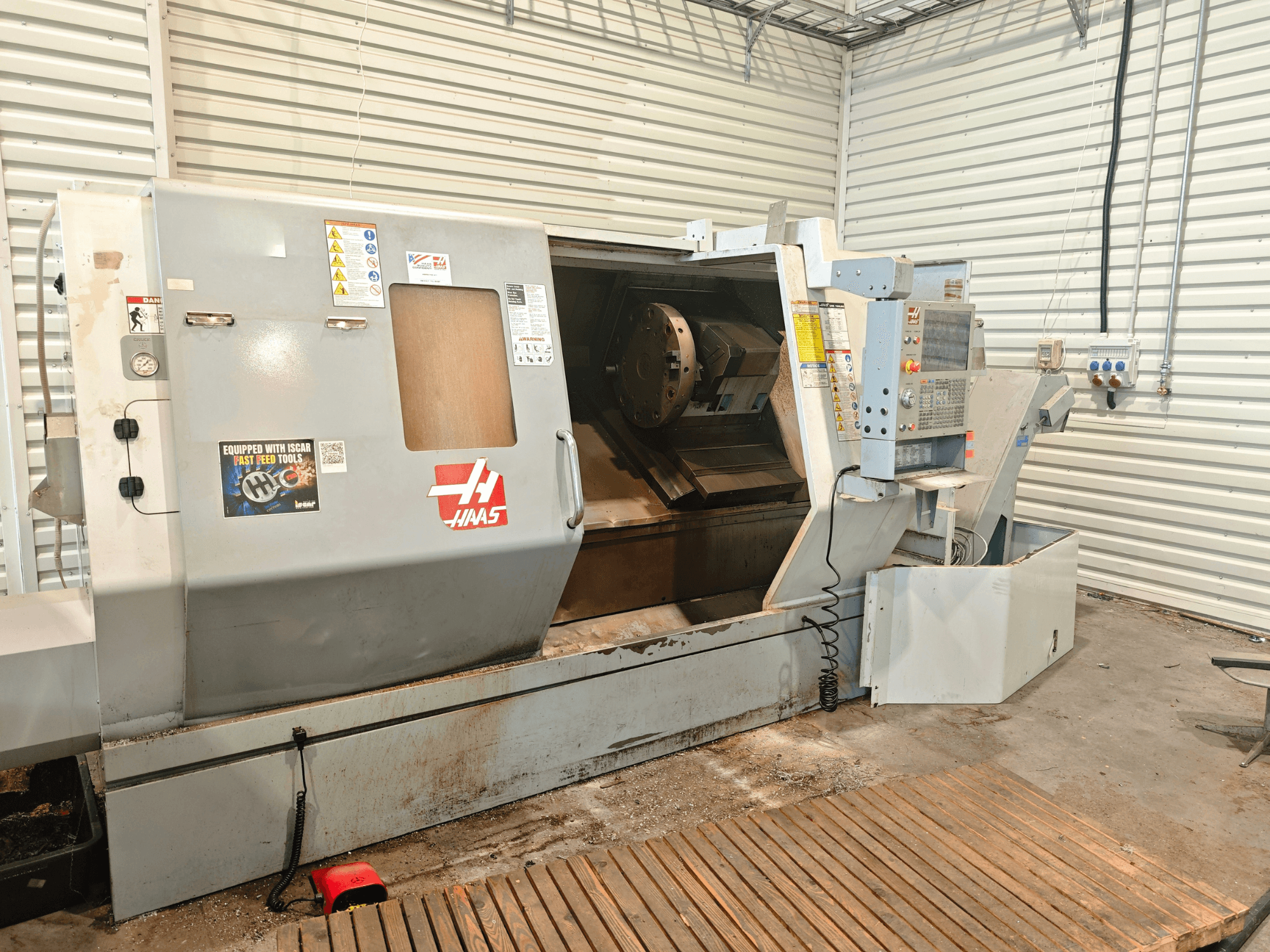

This 3-axis HAAS SL-40HE CNC turning center was manufactured in 2006. It features a maximum spindle speed of 2,400 rpm, a swing diameter over bed of 1,016 mm, and a Z-axis travel of 1,118 mm. The machine is equipped with a full-featured C-axis and driven tools, providing versatile machining capabilities. If you are looking to get high-quality turning capabilities, consider the HAAS SL-40HE machine we have for sale. Contact us for further details.

Overview

brand: HAAS
year: 2006
MODEL: SL-40HE
application type: Turning
Location: Lithuania
machine type: Horizontal Turning Machine

Technical Information - HAAS SL-40HE

Dimensions

Machine Weight: 11000 kg

Movement

Number of Axes: 3
X-axis Travel: 432 mm
Z-axis Travel: 1118 mm

Technical Specification

Counter Spindle: No
Driven Tools: Yes
Spindle Power: 29.8 kW
Spindle Speed: 2400 RPM

Additional Information

Swing over bed: 1,016 mm
Swing over cross slide: 635 mm
Max. bar capacity: 101.6 mm
C-axis: Full-featured C-axis
Tool presetter: Yes
Spindle nose: A2-8
Spindle bore: approx. 116.8 mm
Gearbox: 2-speed
Chuck: Kitagawa B-15, 3-jaw
Vector drive: 40/30 HP closed-loop vector drive
Electrical enclosure: NEMA Type 1 (indoor use only)
Voltage: 360/480 V
Phase: 3
Frequency: 50/60 Hz
Full load: 40 A
Largest load: 70 A
Short-circuit interrupting capacity: 10,000 A
Machine status: Dismantled, not under power; seller can load on truck with crane for approx. €800

Additional equipment

Iscar Fast Feed Tools tooling/solutions (as indicated by stickers)
Work light
Coolant tank and chip tray assembly
Foot pedal control
Status beacon light

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
