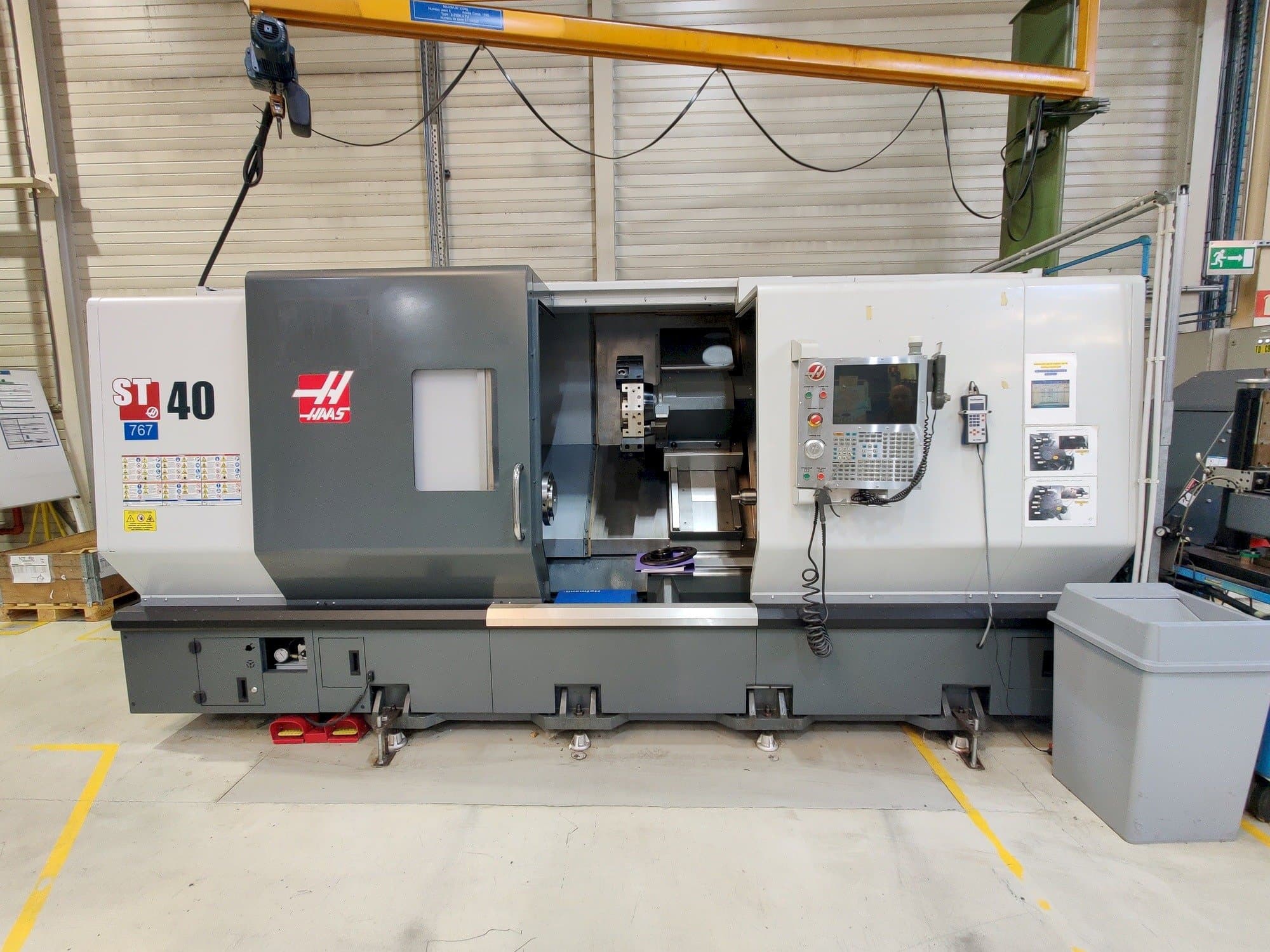

HAAS ST-40

Photo Gallery

HAAS - ST-40NL-TUR-HAA-2012-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ ST-40 Lathe by HAAS - Used

Show in original language

This HAAS ST-40 Lathe was made in 2012 in the United States and has only 100 hours. It is equipped with a Haas control unit. The machine has a spindle speed of 0 - 1400 rpm, diam. max. turning length of 648 mm.

Overview

brand: HAAS
year: 2012
MODEL: ST-40
production hours: 100
application type: Turning
Location: Netherlands
machine type: Horizontal Turning Machine
control unit brand: HAAS

Technical Information - HAAS ST-40

General Data

Measurements width: 5817 mm
Measurements depth: 3531 mm
Measurements height: 2261 mm
Machine weight: 12247 kg

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 0 - 1400 1/MIN
Spindle motor power: 29.8kW
Spindle bore: Ø 117.3 mm

Movement

X-AXIS Movement: 432 mm
X-AXIS Rapid traverse: 18 m/min
Z-AXIS Movement: 1118 mm
Z-AXIS Rapid traverse: 18 m/min

Media

Main electronic connection: 380 V, three-phase, 50-60 Hz
Power consumption: 28 kVA

Additional Information

Additional equipment

12-station bolt-on turret
Memory expansion up to 1 MB
High torque 2-stage gearbox
Rigid tapping
15” LCD color display and USB interface, Remote control
Programmable hydraulic tailstock
Locking access to memory by key switch on the panel
Additional filtration system 25µ
Hinged Belt Chip Conveyor
Rapid detection of power outages

Machine Benefits

Qualitative Machine Benefits

Coolant through the center high pressure 20 bar
Ethernet interface
Definable user macros
Spindle orientation

Technical Machine Benefits

Tank capacity: 340 l
Compressed air: 113 l/min @ 6. 9 bar
Torque at the spindle: 1998 nm @ 150 rpm
Spindle nose: a2-11
Cylinder bore: Ø 178 mm
Passage diameter: 876 mm
Diam. Max. Turning length: 648 mm
Max length turning length: 1118 mm
Positioning accuracy: ± 0. 0051 mm
Repeatability accuracy: ± 0. 0025 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
