HAAS - ST-40MX-TUR-HAA-2018-00001

Name: HAAS ST-40
Brand: HAAS
SKU: MX-TUR-HAA-2018-00001
Price: 75000 EUR
Availability: InStock

75,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HAAS ST-40 Horizontal Lathe For Sale | gindumac.com

Show in original language

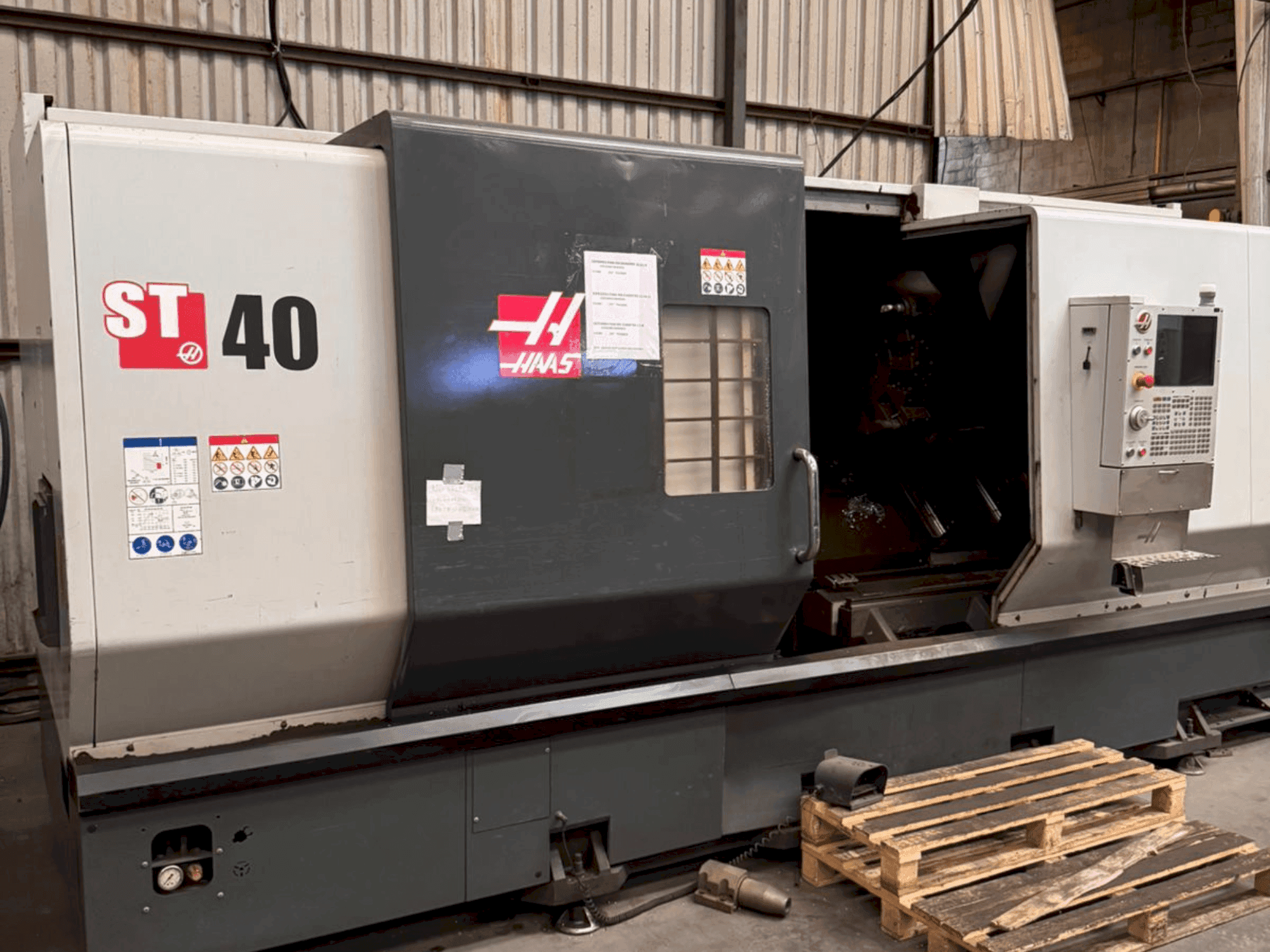

This HAAS ST-40 was manufactured in 2018. It features a 15-inch chuck, a maximum part swing of 35.5 inches, and a cutting diameter of 30 inches. The machine includes a 2-speed gearbox spindle, capable of 2,400 rpm, and a 12-station BOT turret. Additional equipment includes a belt-type chip conveyor and a programmable servo tailstock. Consider the opportunity to buy this HAAS ST-40 horizontal turning machine. Contact us for more information about this machine.

Overview

brand: HAAS
year: 2018
MODEL: ST-40
application type: Turning
Location: Mexico
machine type: Horizontal Turning Machine
control unit brand: HAAS

Technical Information - HAAS ST-40

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 2400 rpm 1/MIN
Spindle motor power: 40 hp
Number of axis: 2

Tail Stock

Pinol tool taper: MT5

Media

Chip conveyor: Yes

Additional Equipment

- Line Filter & Surge Suppressor – 220 VAC, 3-phase, 80 A, 60 Hz
- Early Power-Failure Detection Module
- Belt-Type Chip Conveyor

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Chuck size: 15 in (381 mm)
- - Maximum part swing: 35. 5 in (902 mm)
- - Maximum cutting diameter: 30. 0 in (762 mm)
- - Maximum machining length: 44 in (1118 mm)
- - Bar capacity: 4. 0 in (102 mm)
- - Turret type: 12-station bot turret (optionally bmt75)
- - Electrical requirements: 220 vac, 3-phase, 80 a, 60 hz
- - Spindle type: 2-speed gearbox
- - Programmable servo tailstock

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
