- ➤ Used HAAS DS-30SSY For Sale | gindumac.com

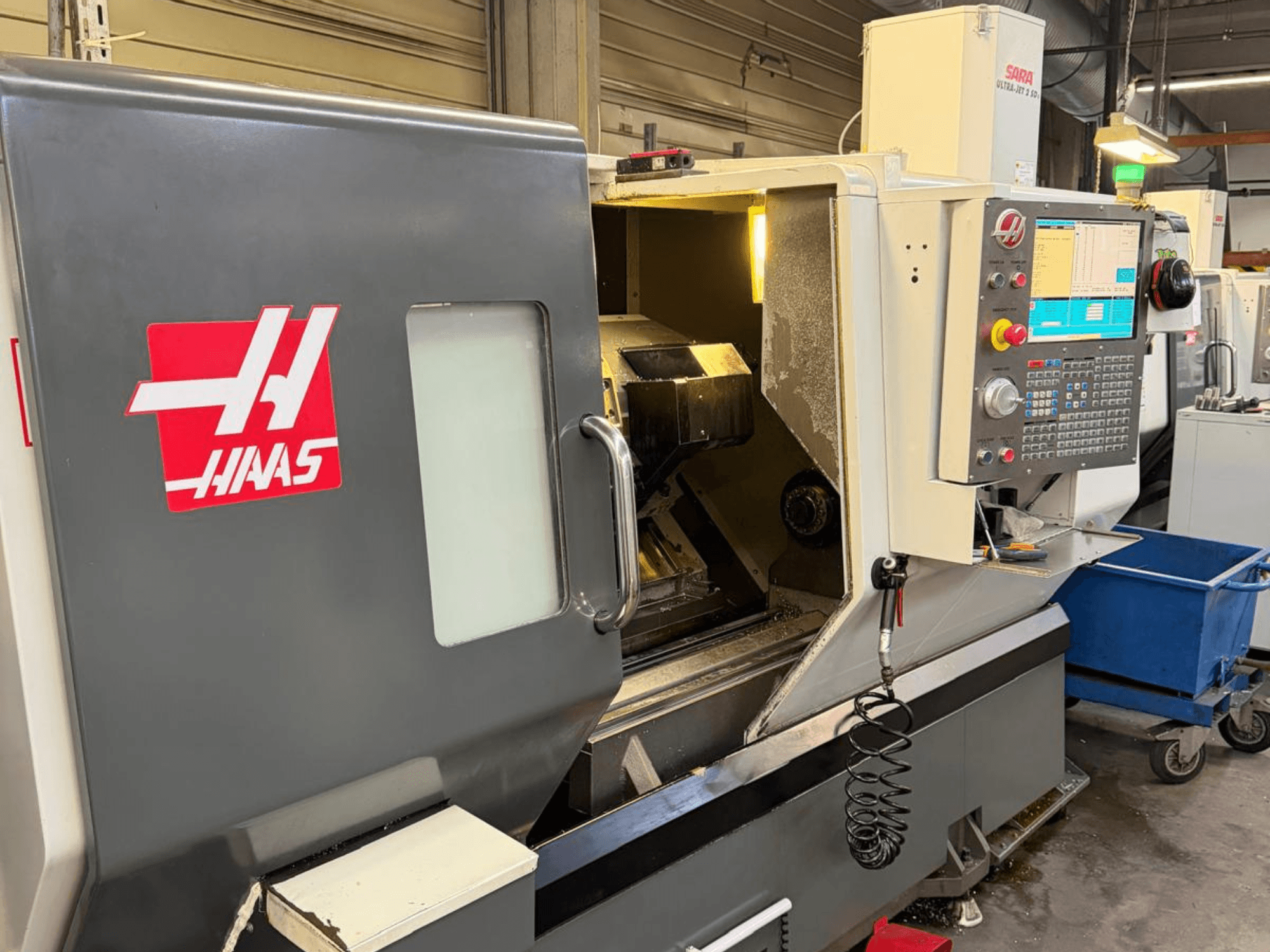

This 4-axis HAAS DS-30SSY was manufactured in 2013. It features Y-axis milling capability, a sub-spindle, and live tooling, enhancing its versatility for various machining tasks. The machine includes a 12-station bolt-on turret and comes equipped with a chip conveyor and mist collector. If you are looking to get high-quality turning capabilities, consider the HAAS DS-30SSY horizontal turning machine we have for sale. Contact us for further details.
Overview
- brand: HAAS
- year: 2013
- MODEL: DS-30SSY
- production hours: 9554
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- Available from: 28/06/2026
- control unit brand:
Technical Information - HAAS DS-30SSY
Movement
- Number of Axes: 4
- X-axis Travel: 239 mm
- Z-axis Travel: 826 mm
Technical Specification
- Counter Spindle: Yes
- Driven Tools: No
Additional Information
Condition: In good condition
Usage: Motion Time 54,567 h; Servo Time 62,795 h
Spindles: Dual spindle (sub-/counter spindle; rarely used)
Turret: 12-station bolt-on turret (BMT65 style)
Capabilities: Y-axis milling, live tooling
Electrical: 360–480 V, 3-phase, 50/60 Hz; Full load amps 40 A; Largest load 70 A; Short-circuit interrupting capacity 10,000 A
Additional equipment
Chip conveyor (Jorgensen)
Mist collector: SARA Ultra-Jet 2 SD
Parts catcher
Coolant hose
Foot pedals
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
