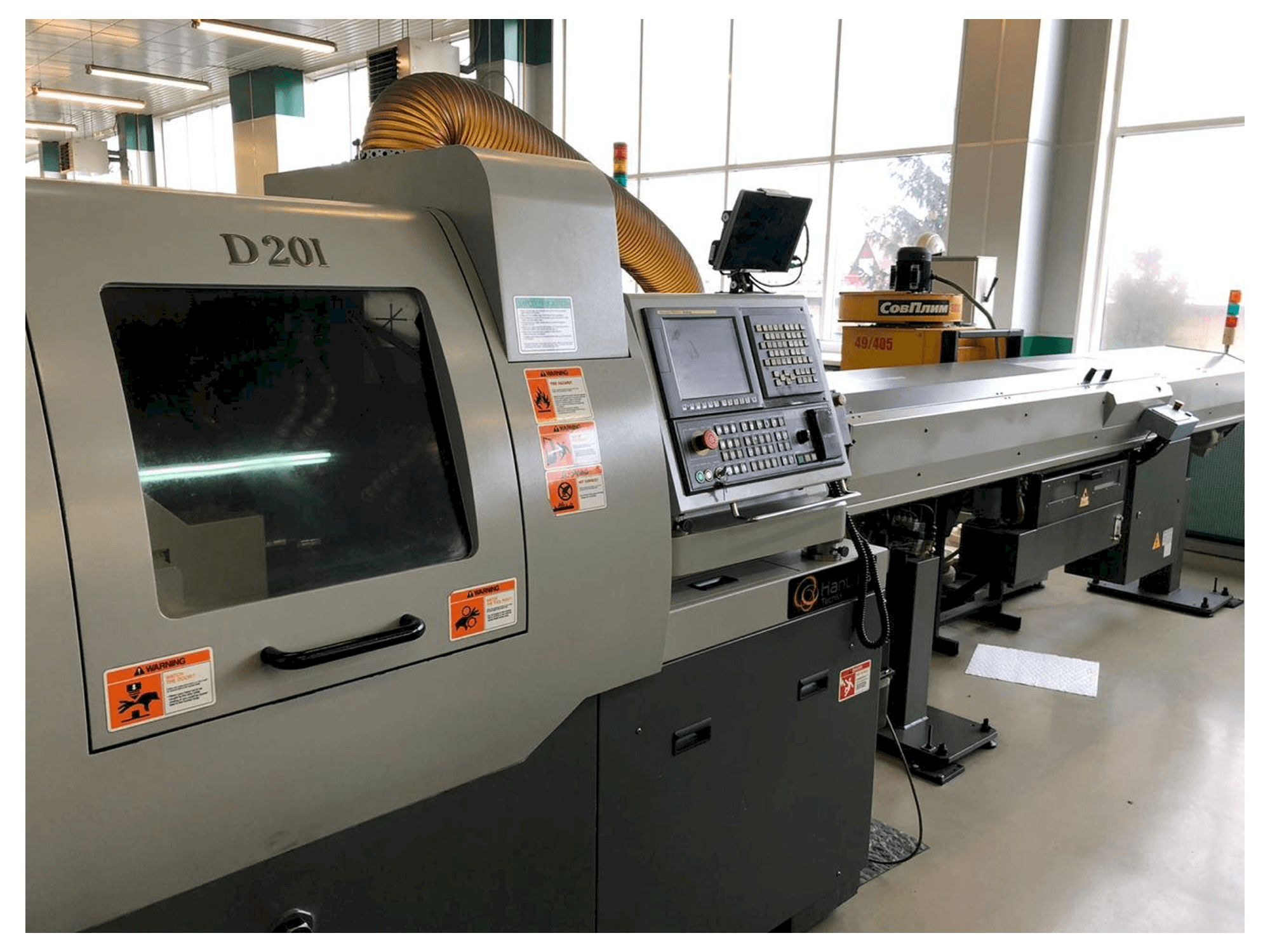

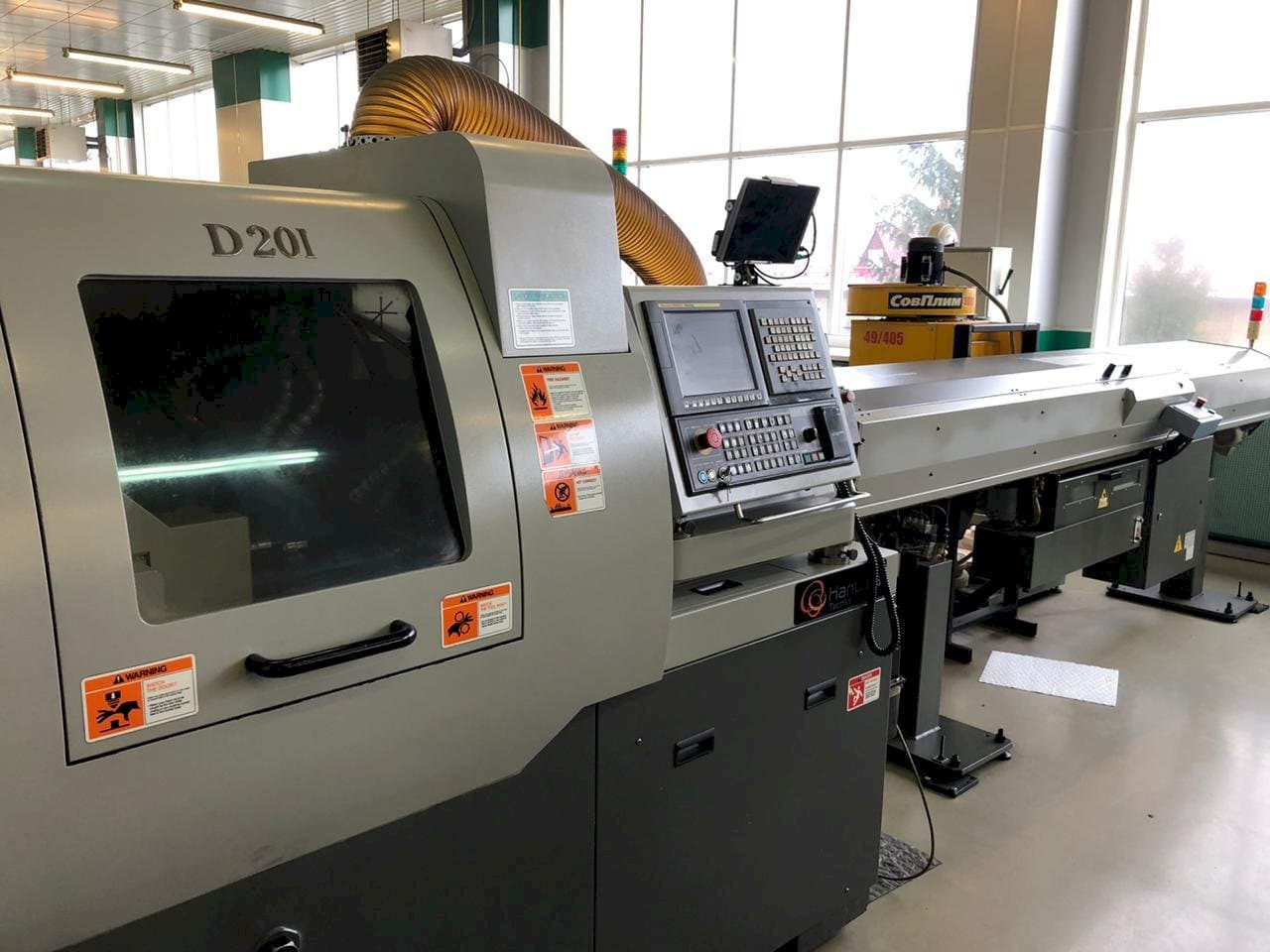

Hanwha XD20M

Photo Gallery

Hanwha - XD20MRU-TUR-HAN-2011-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Hanwha XD20M Lathe

Show in original language

This Hanwha XD20M Lathe was made in the year 2011. It is controlled through a CNC system FANUC i Series. It is equipped with a main spindle which can work with a spindle speed up to 10000 rpm, and a counter spindle which can work with a spindle speed up to 8000 rpm. Both spindles can work with a Max. processed diameter Ø20 mm.

Overview

brand: Hanwha
year: 2011
MODEL: XD20M
application type: Turning
Location: Russia
machine type: Swiss Type Turning Machine
control unit brand: FANUC

Technical Information - Hanwha XD20M

General Data

Measurements width: 2360 mm
Measurements depth: 1250 mm
Measurements height: 1740 mm
Machine weight: 2700 kg

Control Unit

Model: i Series
Brand: FANUC

Main drive

Spindle speed range: 10000 1/MIN
Spindle motor power: 2.2/3.7 kW

Media

Main electronic connection: 15 kVA

Additional Information

Machine Benefits

Technical Machine Benefits

Main spindle: max. Processed diameter (mm) Ø20
Counter spindle: max. Rotation speed (rpm) 8000, max. Processed diameter (mm) Ø20
Coolant tank (l) 170
Lubrication tank (l) 1. 8
Air consumption (nl/min) 120~150
Color screen 10. 4"
Max. Diameter of axial drilling on the main spindle/counterspindle (mm) 10 / non-drive: 10; drive: 8
Max. Diameter of the thread to be cut by the tap on the main spindle/ counterspindle m8 / not drive. : m8; drive: m6
Max. Diameter of the thread to be cut by the tap on the cross drilling / milling caliper m6(er16)
Max. Drilling diameter on the cross drilling / milling support (mm) 10 (er16)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
