- Heckert HEC500D XXL Horizontal Machining center

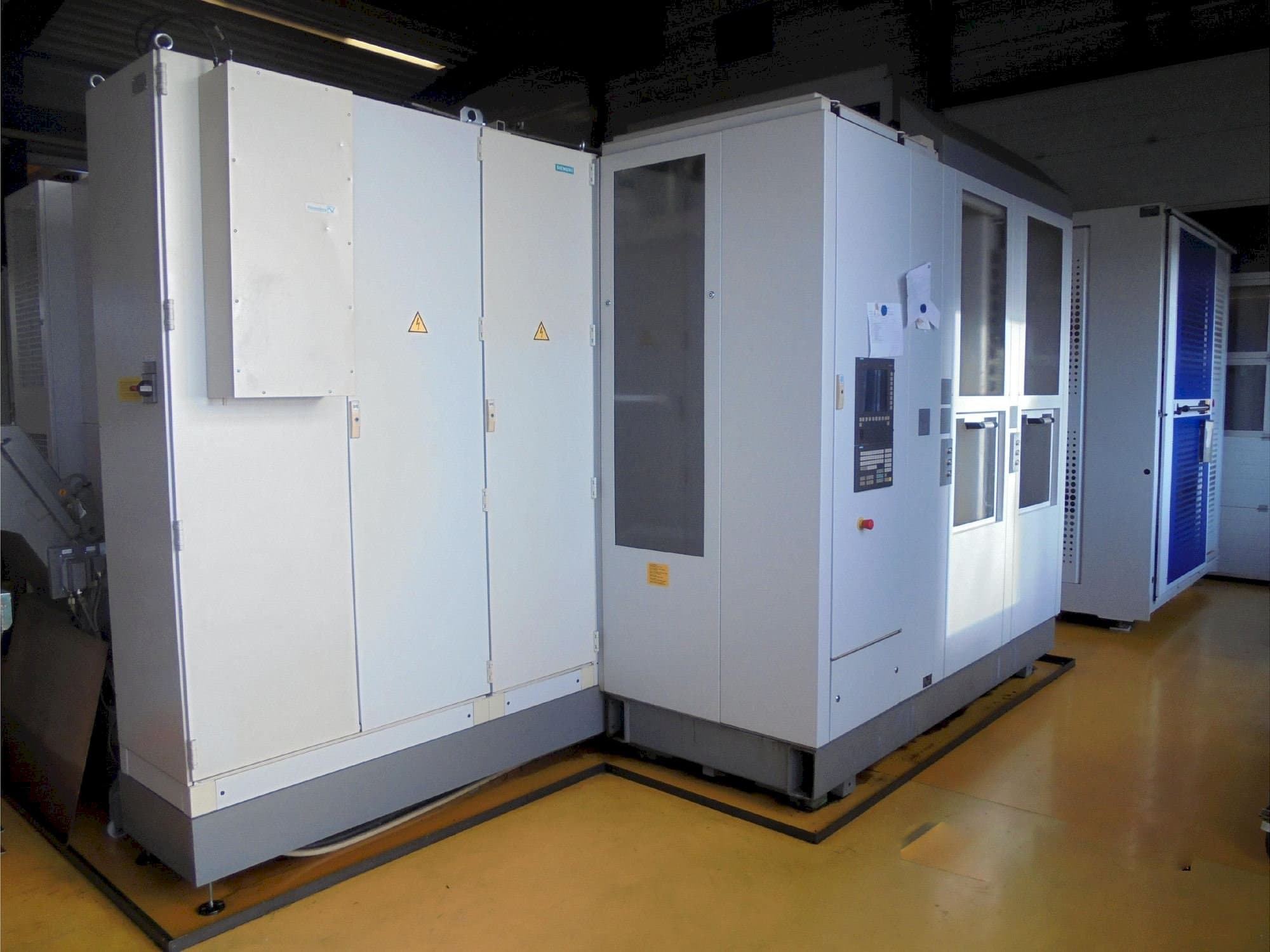

This Heckert HEC500D XXL Horizontal Machining center was manufactured in the year 2010. It is equipped with a SIEMENS SINUMERIK 840D control unit. The machine has a spindle speed of 15000 rpm.
Overview
- brand: Heckert
- year: 2010
- MODEL: HEC500D XXL
- application type: Milling
- Location: Germany
- machine type: Horizontal Machining Centre
- availability: Sold
- control unit brand: SIEMENS
Technical Information - Heckert HEC500D XXL
Control Unit
- Model: Sinumerik 840 D
- Brand: SIEMENS
Main drive
- Spindle speed range: 15000 1/MIN
Additional Information
- Technical Machine Benefits:
- - Tool holder, hollow shank taper din 69893 *tool chain magazine 60 places. 500 x 500 mm
- - Prepared for retrofitting a portable electronic handwheel (in the manual control panel) *internal coolant supply: coolant through the center of the spindle centric form ad; mechanically adjustable; coolant tank integrated with backwash filter external coolant supply: coolant via nozzles pindle
- - Flushing gun at the clamping station
- - Shaft shower > open outlets
- - Chip conveyor, scraper
- - Completely enclosed work area cladding according to uv
- - Piece counter on the nc screen
- - Remote diagnosis with analog modem
- - Computer connection via ethernet interface
- - Pallet sequence operation,tool speed monitoring ,operating hours display
- Qualitative Machine Benefits:
- - Operating voltage, dialog language german or english, when ordering the options, the corresponding items of the basic equipment are omitted.
- - Color scheme: light grey ral 7035, mouse grey ral 7005, ruby red ral 3003. Documentation in german on cd-rom
- - Sinumerik 840d control system
- - The machining center is equipped with a cnc sinumerik 840d or de with integrated plc. The control system in combination with the simodrive 61d drive components is designed for maximum machining accuracy and high productivity.
- - The most important functions of the standard equipment are listed below: operating and display components / interfaces - flat control panel with 15" tft color display - at-compatible pc as hmi-pcu50 with windows user interface and membrane keyboard
- - (hmi = human-machine communication), remote diagnostics with analog modem and software 1 /
- - Machine control panel for operating machine functions - usb interface on the main control panel
- - Ethernet interface 10/100 mbit/s for rj45 connector
- - Cnc user memory 5. 1 mbyet buffered for programs and data
- - Manual input (mda) and teach ni - set-up functions (jog) for all axes and the milling spindle with machine control panel or manual control panel - constantly active diagnostics system with error and status display in plain text - screens for display or input of: tool data, process data, data for chip conveyor runtime regime, data for operator influence, operating hours display service function for tool and pallet changes tool corrections - tool management - tool wear monitoring (time, number of pieces) - tool radius correction in the plane zero point offsets - 04zero point offsets ej axis and additional additive, programmable zero point offsets - zero point offsets programmable (frames)
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
