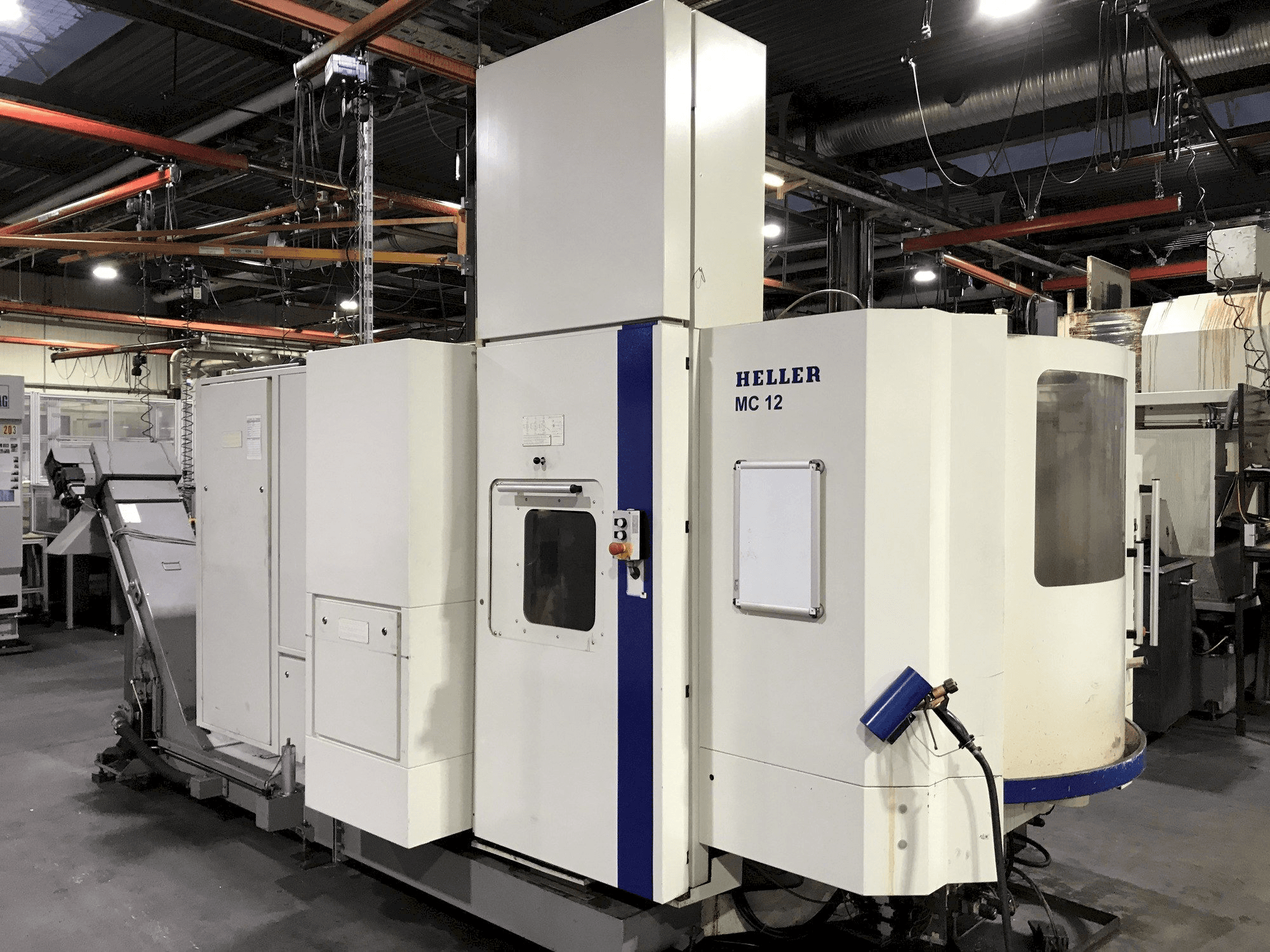

HELLER MC 12 Horizontal Machining Center

Show in original language

This HELLER MC 12 Horizontal Machining Center was made in 2004 in Germany. Equipped with a Siemens Sinumeric 840 D control unit. This machine works with a spindle speed between 45 - 12000 rpm and a tool taper HSK 63.

Overview

brand: HELLER
year: 2004
MODEL: MC 12
application type: Milling
Location: Germany
machine type: Horizontal Machining Centre
control unit brand: SIEMENS

Technical Information - HELLER MC 12

General Data

Measurements width: 6300 mm
Measurements depth: 2600 mm
Measurements height: 3100 mm
Machine weight: 8000 kg

Control Unit

Model: Sinumeric 840 D
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 45 - 12000 1/MIN
Tool taper: HSK 63
Number of axis: 3

Movement

X-AXIS Movement: 560 mm
X-AXIS Feed Force: 6000 N
Y-AXIS Movement: 560 mm
Y-AXIS Feed Force: 6000 N
Z-AXIS Movement: 510 mm
Z-AXIS Feed Force: 6000 N

Table

Outer length: 400 mm
Outer width: 400 mm

Tools

Slots in storage: 42
Max weight: 8 kg
Max tool length: 300 mm

Media

Main electronic connection: 400 V / 50 Hz

Additional Information

Additional equipment

All linear axes with direct measuring system

Machine Benefits

Technical Machine Benefits

Rapid feed b 50 m/min
Coolant reservoir content 1100 l
Chip conveyor discharge height 1200 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
