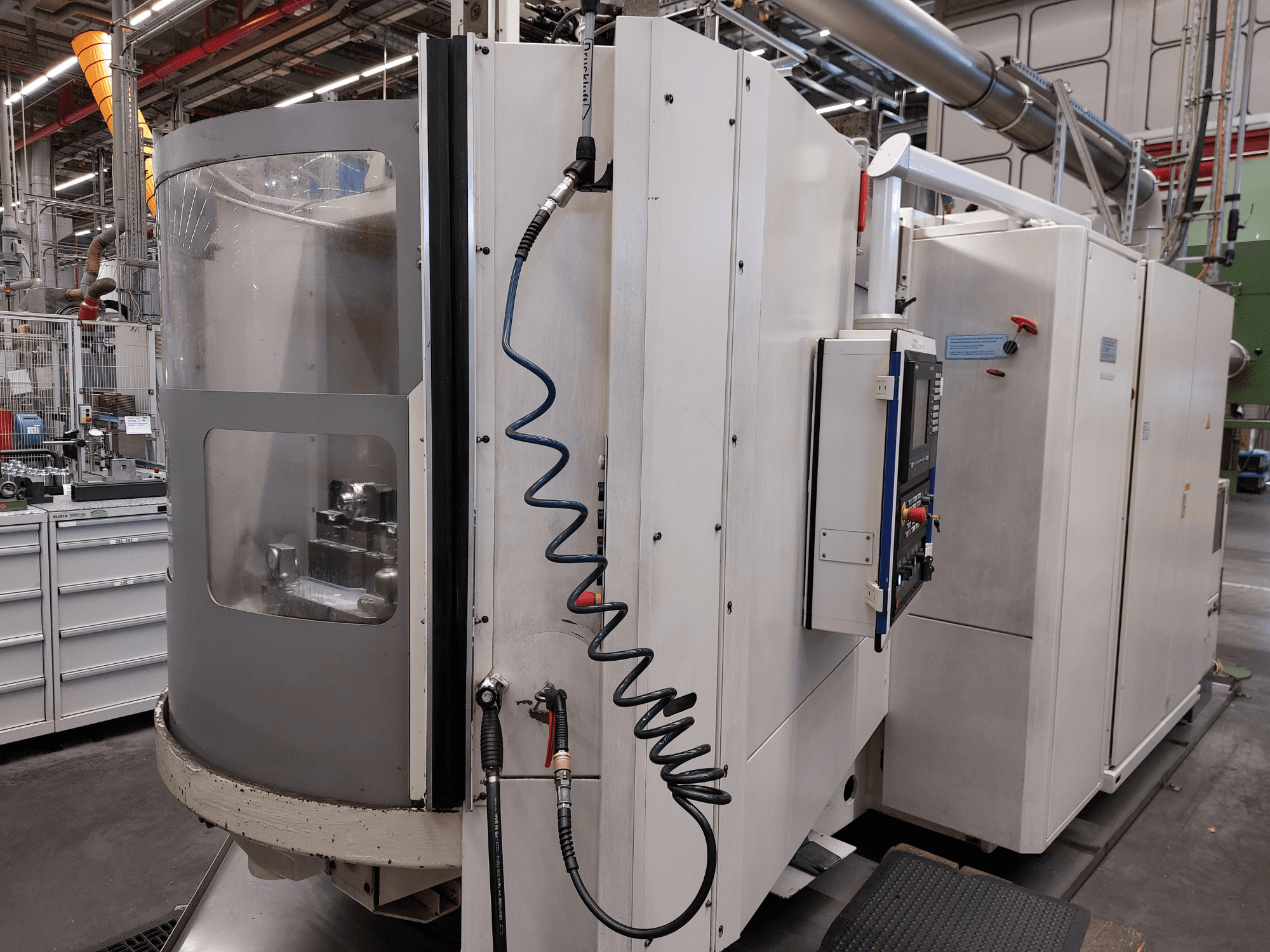

HELLER - MC 16DE-MIL-HEL-2001-00001

- Rotary Table Indexing Precision: 360 x 1°, precision 6"

- Maximum clamping force of the rotary table: 500 daN (centered)

- Rotary Table Max Tangential Torque: 10,000 Nm (clamped)

- Rotary Table Max Tilting Moment: 8,000 Nm (clamped)

- Pallet Changer Size: 400 x 500 mm, 61 x M12 mounting thread

- Tool Magazine Capacity: 80 tool pockets, 1 insertion pocket

- Max Tool Diameter: 72 mm (all pockets occupied) / 150 mm (with free adjacent pockets)

- Max Tool Length: 320 mm

- Max Tool Weight: 12 daN

- Measuring System: Direct in X, Y, Z axes

- Positioning Tolerance: 0.007 mm

- Optional Equipment / Features: Hydraulic workpiece clamping, central cooling unit for motor spindle and cabinet, probe with IR receiver, chip conveyor, tool coding, manual workpiece setup station (rotatable 4x90°), drill breakage control, prepared for emulsion mist extraction

- Included Components: Without clamping device, without machine pallet
