- ➤ Heller MC 16 Horizontal Machining Center - Used
Show in original language

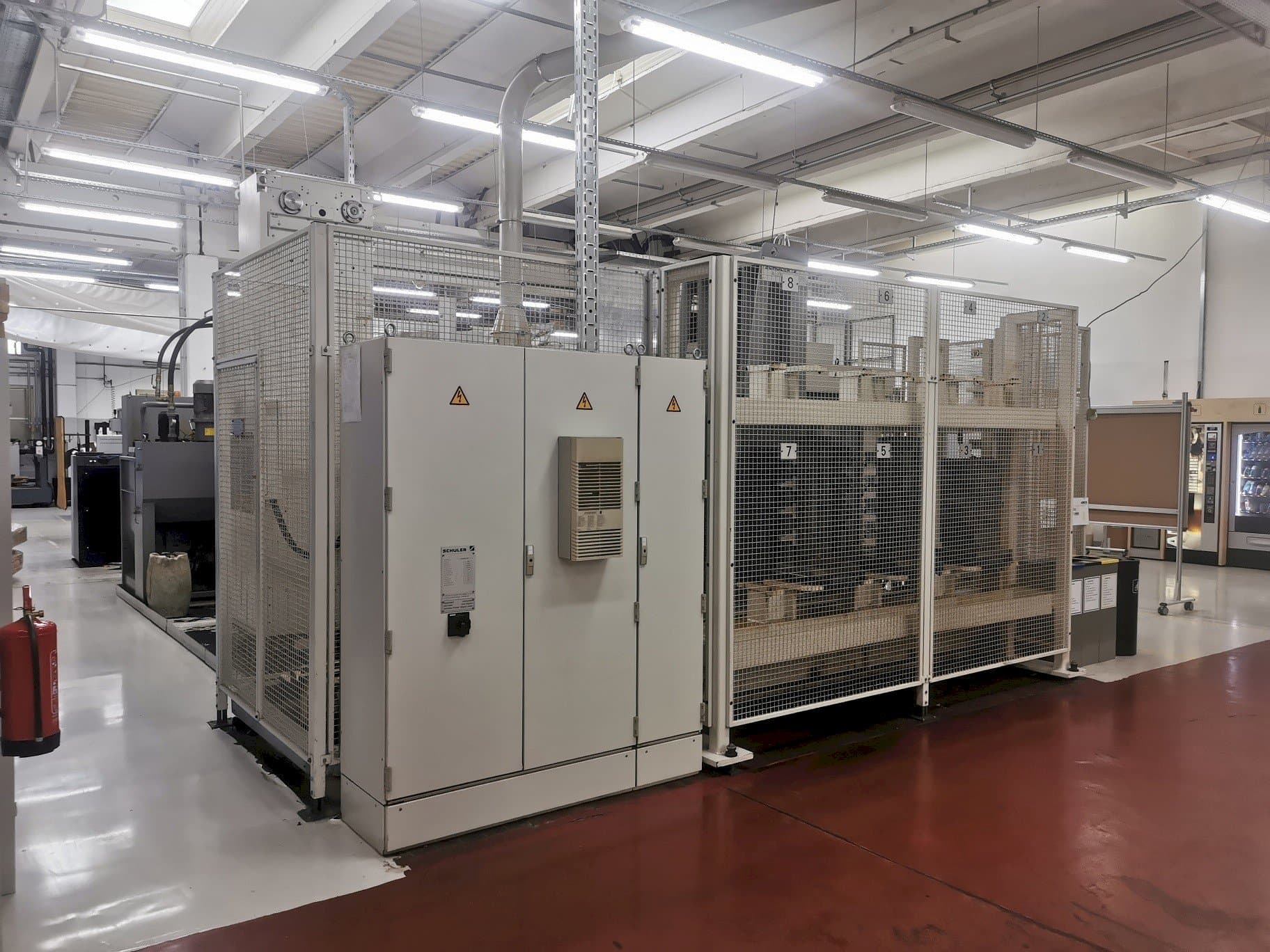

This Heller MC 16 Horizontal Machining center was made in 2002 in Germany. It is equipped with a Siemens 840 PL (Power Line) control unit and has 4 axis. The machine has a spindle speed of 45 – 12000 rpm.
Overview
- brand: HELLER
- year: 2002
- MODEL: MC 16
- application type: Milling
- Location: Slovenia
- machine type: Horizontal Machining Centre
- control unit brand: SIEMENS
Technical Information - HELLER MC 16
Control Unit
- Control Brand: SIEMENS
- Control Model: 840 PL (Power Line)
Dimensions
- Table Length: 400 mm
- Table Width: 500 mm
Movement
- Number of Axes: 4
- X-axis Travel: 630 mm
- Y-axis Travel: 630 mm
- Z-axis Travel: 630 mm
Technical Specification
- Spindle Power: 40 kW
- Spindle Speed: 12000 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Separate cooling aggregates for the motor spindle and for coolant agent.
Technical Machine Benefits
- Pallet changing time 8 sec.
- Pallet changer with divider splash guard for mounting the work pieces during the machining process onto the outside pallet, which can be turned manually 4 x 90°. Machine was interlinked with a schuller pallet storage system (10 pallets + 2 in machine) and has got no safety door in front of the machine
- Nc rotary table b axis indexing 360,000 x 0. 001 °
- Feed force 10000 nm
- Feeds / quick feeds xyz 1 – 60,000 mm/min
- B axis speed 25 rpm / min
- Separate standing 160 position rack-type tool magazine with tool placement door and double swivel gripper, own siemens pc-control with screen tool administration system
- Tool brakeage control
- Renishaw measuring probe head for workpiece
- Large coolant preparation unit knoll model ae 1110 with turbo filter and high pressure pump 6,3 kw model kts 25 for internal coolant supply thru the spindle built in mobile knoll
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
