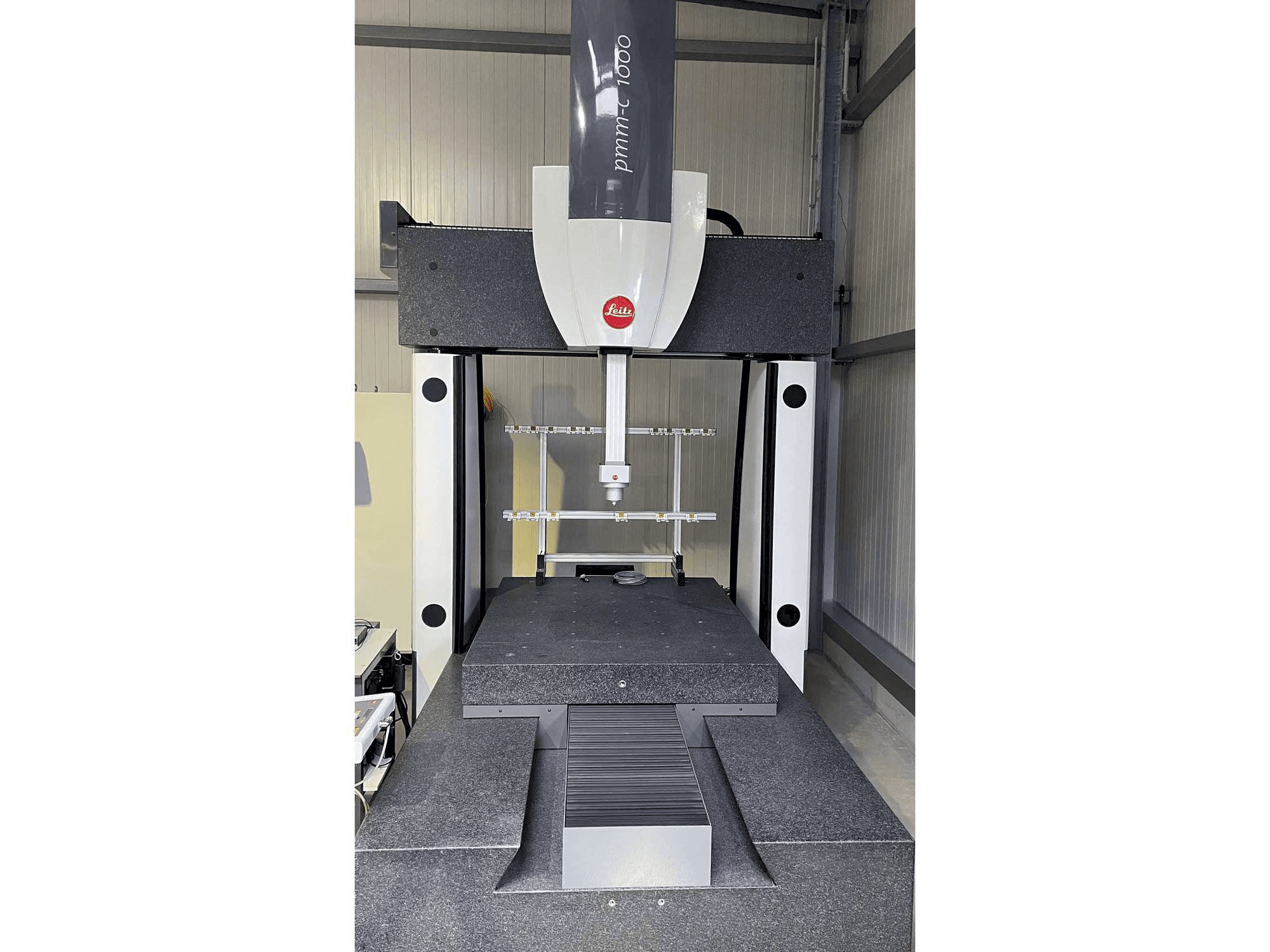

Front view of Hexagon PMM-C 1000 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Hexagon PMM-C 1000

Hexagon - PMM-C 1000DE-MEA-HEX-2006-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Hexagon (LEITZ) PMM-C 1000 Measuring machine

Show in original language

This Hexagon (LEITZ) PMM-C 1000 Measuring machine was manufactured in the year 2006 in Germany. It is equipped with a B4 control unit. The machine has a Length measurement error of 1,6 μm + L / 400.

Overview

brand: Hexagon
year: 2006
MODEL: PMM-C 1000
application type: Measuring
Location: Germany
machine type: Coordinate Measuring Machine (CMM)
availability: Sold

Technical Information - Hexagon PMM-C 1000

General Data

Measurements width: 2213 mm
Measurements depth: 3595 mm
Measurements height: 3790 mm
Machine weight: 10300 kg

Movement

X-AXIS Movement: 1600 mm
Y-AXIS Movement: 1200 mm
Z-AXIS Movement: 1000 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Calibration sphere: Ø 30 mm / ceramic
- - Measuirng head: lsp-s2
- - Probe changer rack: with 10 stylus clamping / 10 receptacle
- - Computer / monitor: dell precision t 5820 / 24“
- - Operating system: windows 10 professional
- - Metrology software: quindos 7 basis / release q7r2020. 2-1
- - Substructure: bilz / active pneumatic dampers
- - Length measurement error: e0 as per iso 10360-2 iso 10360-2 1,6 μm + l / 400
- - Temperature range: 18-22°c 1c°/h, 2c°/24h 1c°/m vertical and horizontal
- - Optionally, we offer the following services / installation, commissioning, factory or dakks calibration
Qualitative Machine Benefits:
- - The equipment relating to the probe system, probe changer rack, software, pc peripherals, etc. Can be adapted or expanded.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
