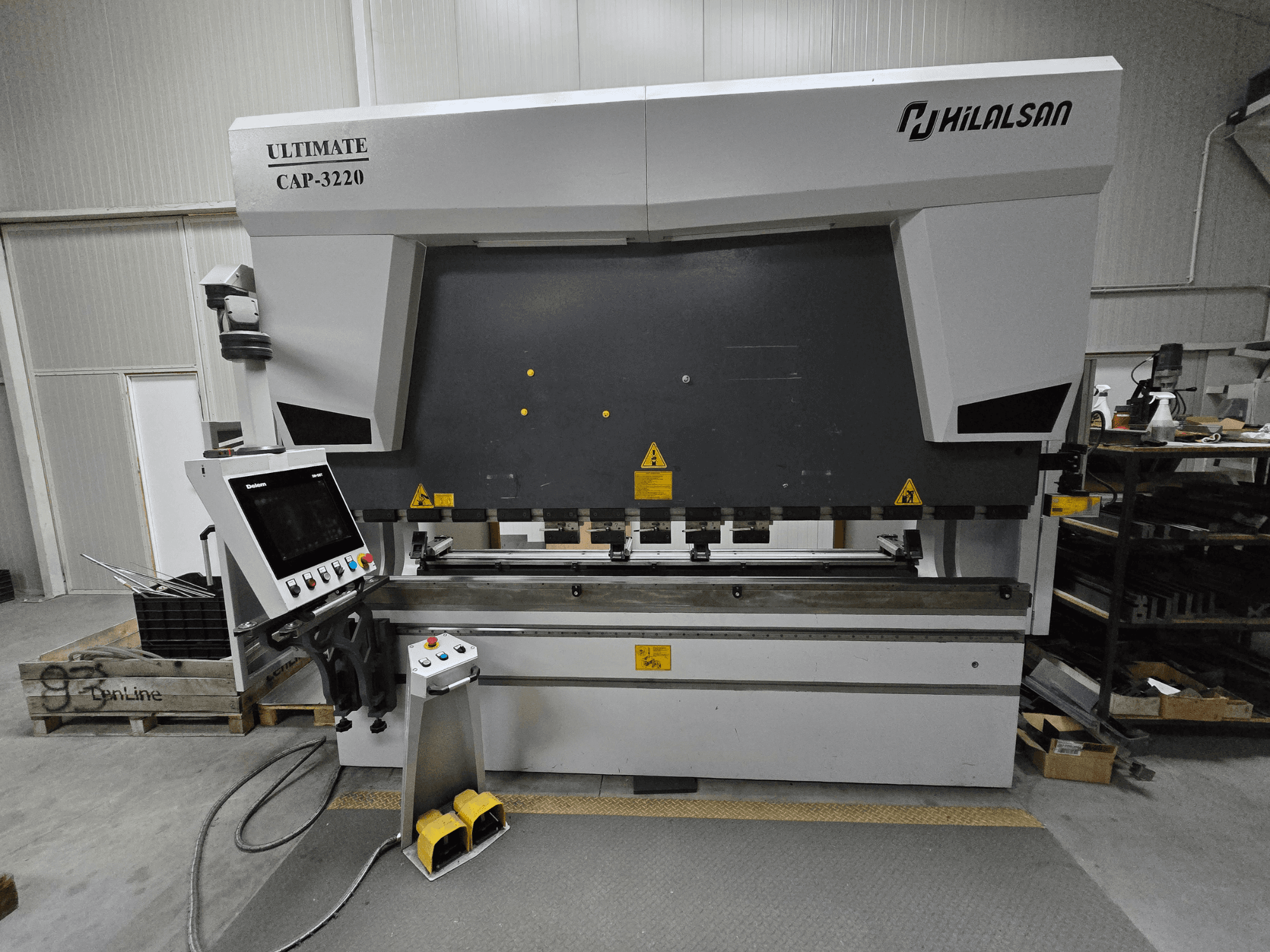

HILALSAN - ULTIMATE CAP-3220HU-BEN-HIL-2021-00001

Distance between side frames (B): 2600 mm

Stroke length (C): 265 mm

Total installation height (D): 485 mm

Throat depth (E): 410 mm

Table height (F): 900 mm

Floor penetration depth (T): 0 mm

Table width (G): 108 mm

Front supports: 2 pcs

Y-axis approach speed: 120 mm/sec

Y-axis working speed: 10 mm/sec

Y-axis return speed: 120 mm/sec

X-axis travel speed: 350 mm/sec

X-axis travel range: 700 mm

Motor power: 22.5 kW

Oil tank capacity: 250 l

Backgauge: 4 rear stops
