HOMAG - Optimat KL 78/A20/S2DE-EDG-HOM-1999-00001

13,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

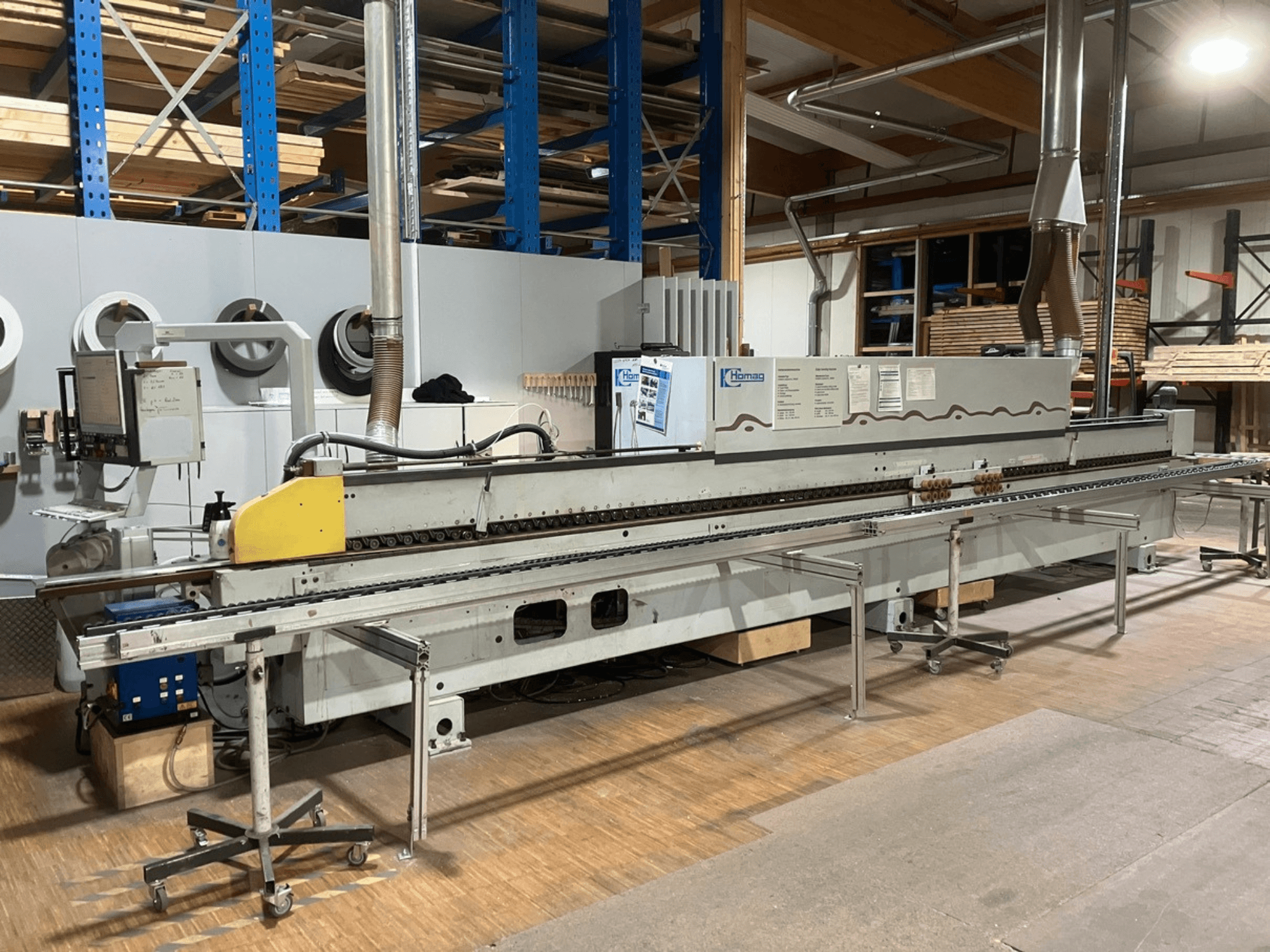

Edgebander manufactured in 1999. This HOMAG Optimat KL 78/A20/S2 features a panel formatting milling cutter, bevel and rounding milling cutter, groove saw, and edge draw blade. It accommodates workpieces with a thickness range of 8 to 60 mm and has a working height of 950 mm. If you are looking to get high-quality edging capabilities, consider the HOMAG Optimat KL 78/A20/S2 machine we have for sale. Contact us for further details.

Overview

  • brand: HOMAG
  • year: 1999
  • MODEL: Optimat KL 78/A20/S2
  • application type: Edge Banding
  • Location: Germany
  • machine type: Edgebander
  • Available from: 01/07/2026

Technical Information - HOMAG Optimat KL 78/A20/S2

Dimensions

  • Machine Height: 1917 mm
  • Machine Length: 9295 mm
  • Machine Width: 1200 mm

Additional Information

- Equipment: Panel formatting milling cutter, bevel and rounding milling cutter, groove saw, edge draw blade

- Additional Equipment: Bühnen PU melting unit (with dedicated blue control box and temperature controllers)

- Work Piece Length: min. 120 mm

- Work Piece Width: min. 120 mm

- Work Piece Thickness: min. 8 - max. 60 mm

- Working Height: 950 mm

- Machine Dimensions (from floor plan): Length 9295 mm, Total Height 1917 mm (approx. 2275 mm with open hood / noise enclosure open), Working line width approx. 1200 mm

- Space Requirements: Length 9.6 m, Width min. 2.5 m, Height 2.3 m (flaps open)

- Voltage: 400 V

- Frequency: 50 Hz

- Current: 55 A

- Recommended Fuse: 63 A

- Control Voltage: 24 V

- Total Extraction Capacity: approx. 6010 m³/h

- Air Speed: 28 m/sec

- Compressed Air Consumption: approx. 816 NL/min

- Pressure Drop: 200 mm WS

- Electrical Connected Load: 32 kW

- Extraction Connections: 3x Diameter 120 mm, 2x Diameter 60 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
