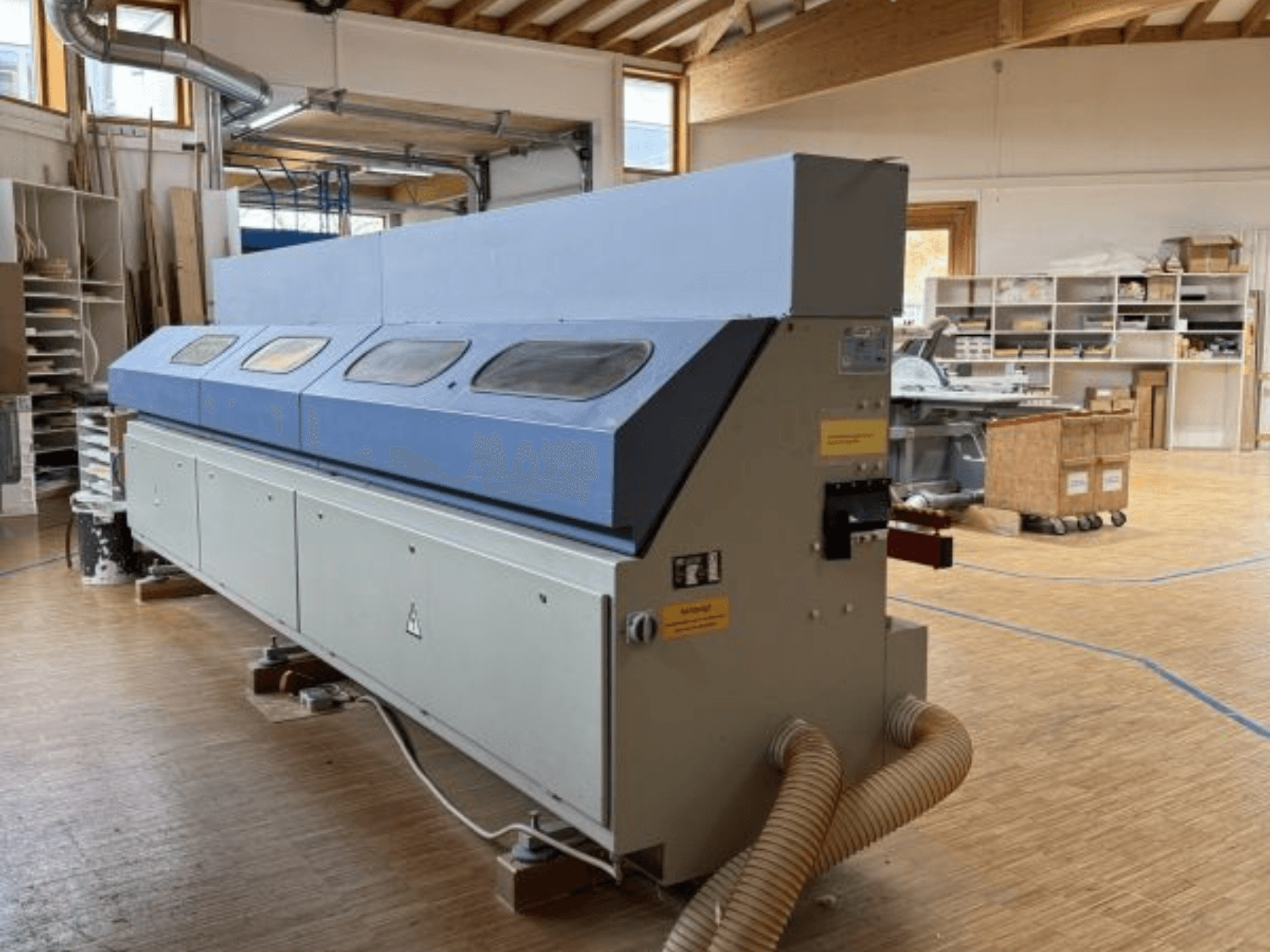

OTT - Pacific V6-FDE-EDG-OTT-2000-00001

Used single-sided edge banding machine

Brand: OTT

Type: Pacific V 6-F

Year of manufacture: 2000

Technical specifications:

Edge thickness: 0.2 - 6 mm

Workpiece thickness: 8 - 42 mm

Workpiece width: min. 70 mm

Workpiece length: min. 150 mm

Feed speed: 12 m/min.

Electrical connection: 3 x 400V, 50 Hz

Exhaust: 2 x Ø 120 mm at 20 m/sec.

Exhaust capacity: 30 m³/h

Equipment - Processing units:

Joining mills

2 x 1.5 kW, 12,000 rpm, 200 Hz

two application-controlled work spindles

Gluing unit

Rapid-heating tank with Melt-matic

automatic edge magazine with optical monitoring

for strip edges in fixed lengths

Release agent spray system

end trimming unit

2 x 0.2 kW, 12,000 rpm, 200 Hz

automatic swivel 0° / 3°

Flush milling unit 0° / 15° / 30° / 45°

2 x 0.43 kW, 12,000 rpm, 200 Hz

Radius milling unit R2 - R5

2 x 0.3 kW, 12,000 rpm, 200 Hz

2 quick-change stations for milling units

Corner rounding milling unit

2 x 0.3 kW, 12,000 rpm, 200 Hz

Scraper

2 x carbide scrapers

Polishing unit

2 x 0.2 kW, 2,800 rpm, 50 Hz

Weight: 2,000 kg

Note:

The technical data and descriptions are copies of the original order confirmation. The information is provided for informational purposes only and is not binding.
