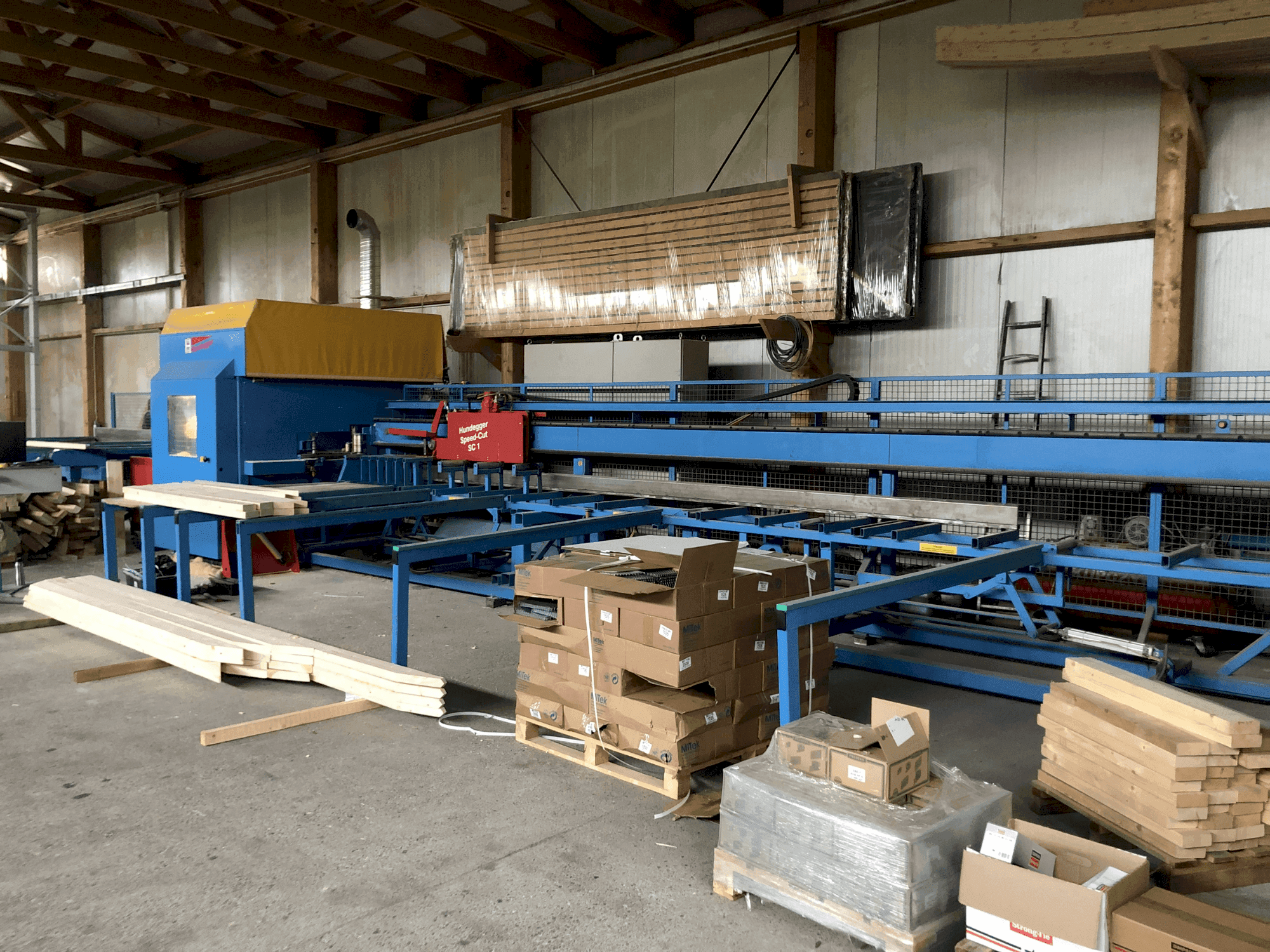

HUNDEGGER - Speed-Cut SC1PL-WOO-HUN-2003-00001

Additional equipment

• 6-armed offload table
• PC + Monitor
• Electrical connection: 3x 63A, max. 15kW
• Pneumatic connection 1/2", 9 bar at least 400l/min
• Main supply line for pneumatics min. 3/4"

Machine Benefits

Qualitative Machine Benefits

• The machine's robust construction and high positioning accuracy of +/- 0. 5 mm ensure high-quality results and precision in woodworking.
• Basic machine with saw station for 90° cross-cut operation
• Angle and tilt drive for the saw station
• 4-strand transverse feeder
• Combination support for vertically operating tools
• Drilling unit 2. 2 kw
• Vertical milling unit 5. 5 kw
• Revolver milling unit 3-fold
• Marking device below

Technical Machine Benefits

• The machine is capable of computerized cutting, drilling, and milling which allows for versatile wood processing.
• It offers a high level of automation with programmable saw blade adjustments and a 4 axes cnc control enhancing precision.
• Features such as a clamp gripper workpiece feed and pneumatic clamping system ensure efficient and secure handling of materials.
• Max cutting height at 90°: 160 mm // max cutting width at 90°: 450 mm
• Capable of processing dimensions from 12 x 40 mm to 160 x 450 mm
• Number of saw blades: 1
• Saw blade tiltable: yes // saw blade adjustment: programmable controller
• Workpiece feed: clamp gripper
• Clamping system: pneumatic
• Positioning accuracy: +/- 0. 5 mm

Extra Information

Machine is currently under power and operational.
