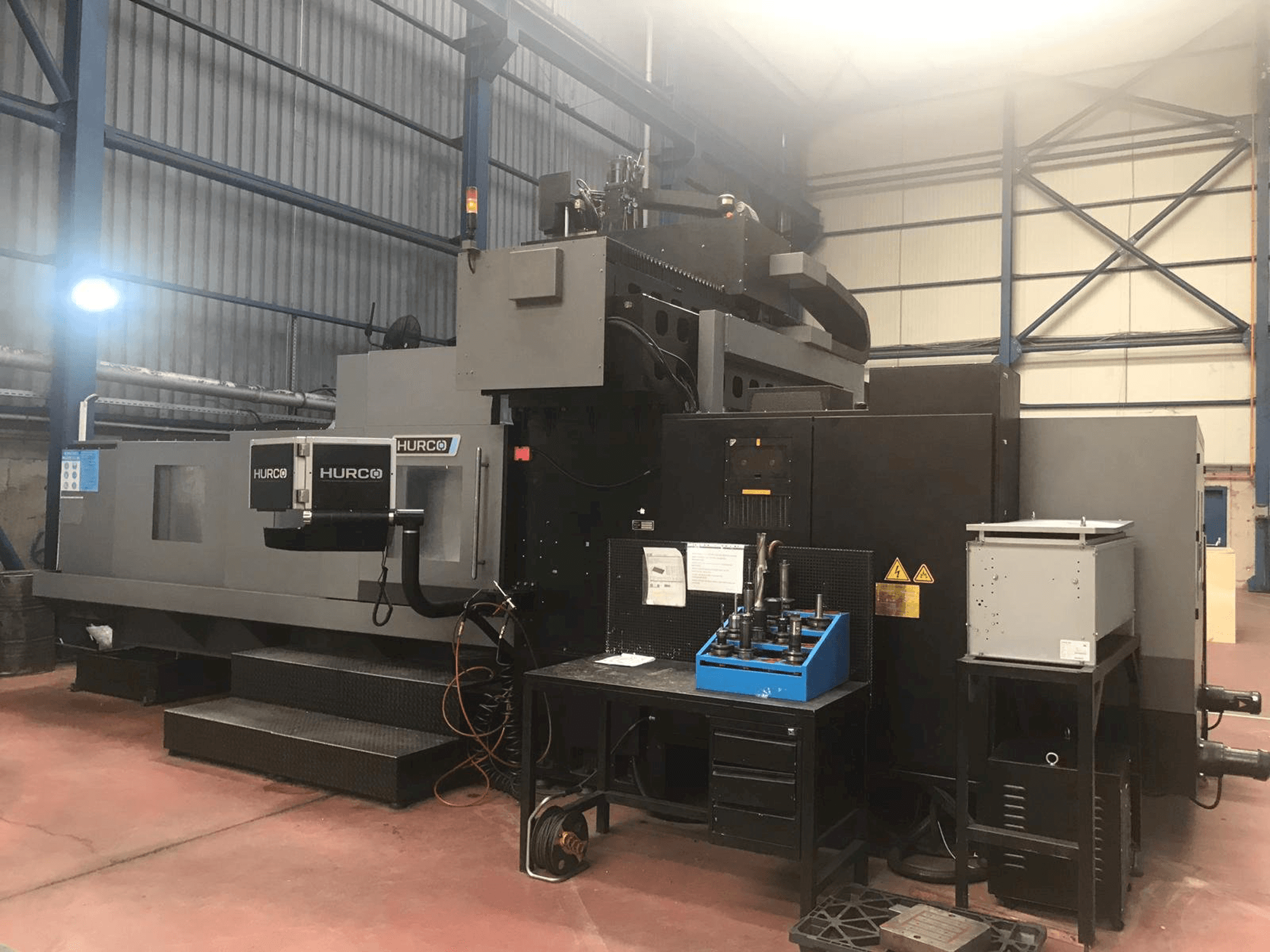

This Hurco DCX 32i Horizontal Machining Center was manufactured in Taiwan in 2015. Equipped with a control unit of the same brand, this double column machining center can work with a spindle speed up to 10000 rpm. A mould maker package ( Ultimotion, DFX transfer ) is included additionally.
Overview
- brand: Hurco
- year: 2015
- MODEL: DCX 32i
- production hours: 16700
- application type: Milling
- Location: Turkey
- machine type: Horizontal Machining Centre
- control unit brand: HURCO
Technical Information - Hurco DCX 32i
Control Unit
- Control Brand: HURCO
Dimensions
- Machine Depth: 7000 mm
- Machine Height: 5000 mm
- Table Length: 3000 mm
- Table Load: 11000 kg
- Table Width: 1700 mm
Movement
- X-axis Travel: 3200 mm
- Y-axis Travel: 2100 mm
- Z-axis Travel: 1100 mm
Technical Specification
- Spindle Power: 60 kW
- Spindle Speed: 10000 RPM
Additional Information
Additional equipment
- Mould maker package ( Ultimotion, DFX transfer )
Machine Benefits
Technical Machine Benefits
- Max torque 570 nm
- Tool magazine number of tool stations 40 positions
- Change time tool -5. 0 seconds
- Cutting time 11300 hours
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
