HWACHEON HI-ECO 450A YMC Lathe

Show in original language

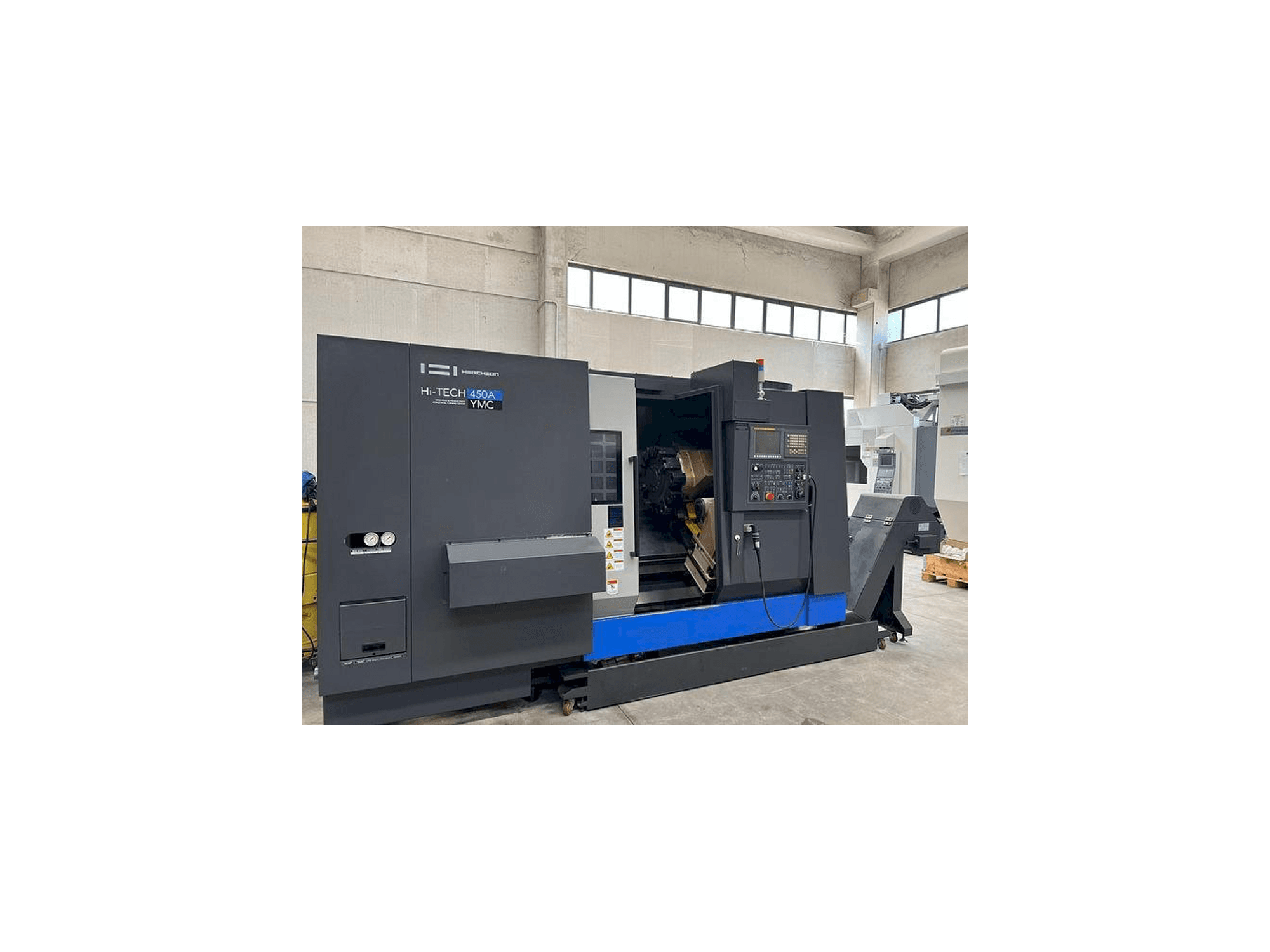

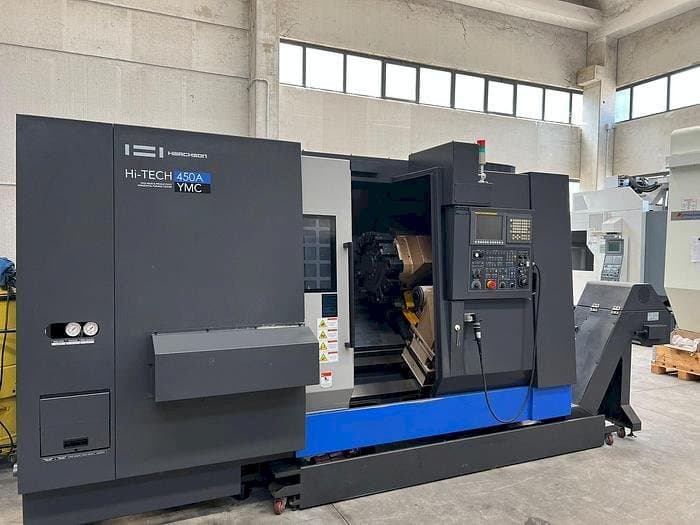

This Hwacheon HI-ECO 450A YMC lathe was manufactured in 2013. It features a Fanuc 0i-TD control, a spindle speed of 3,500 rpm, and a spindle power of 22/18.5 Kw. The machine offers a maximum rotating diameter of Ø 700 mm and a workable length of 637 mm. It includes a tool turret with 12 live tool positions and a chip evacuator. For more information about this lathe, please reach out to us.

Overview

brand: HWACHEON
year: 2013
MODEL: HI-ECO 450A YMC
production hours: 5000
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - HWACHEON HI-ECO 450A YMC

Control Unit

Control Brand: FANUC
Control Model: 0i-TD control

Movement

X-axis Travel: 280 mm
Y-axis Travel: 60 mm
Z-axis Travel: 790 mm

Technical Specification

Spindle Power: 22 kW
Spindle Speed: 3500 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Several holders included
Accessories chip evacuator

Technical Machine Benefits

Max. Rotating diameter Ø 700 mm
Max. Rotating diameter on pallet Ø 550 mm
Turning diameter Ø 254-420 mm
Max length workable 637 mm
Self-centering diameter Ø 250 mm
Spindle connection asa 2-8
Spindle hole Ø 90 mm
Bar passage Ø 76 mm
Indexing 0. 001 °
Tool turret with 12 live tool positions

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
